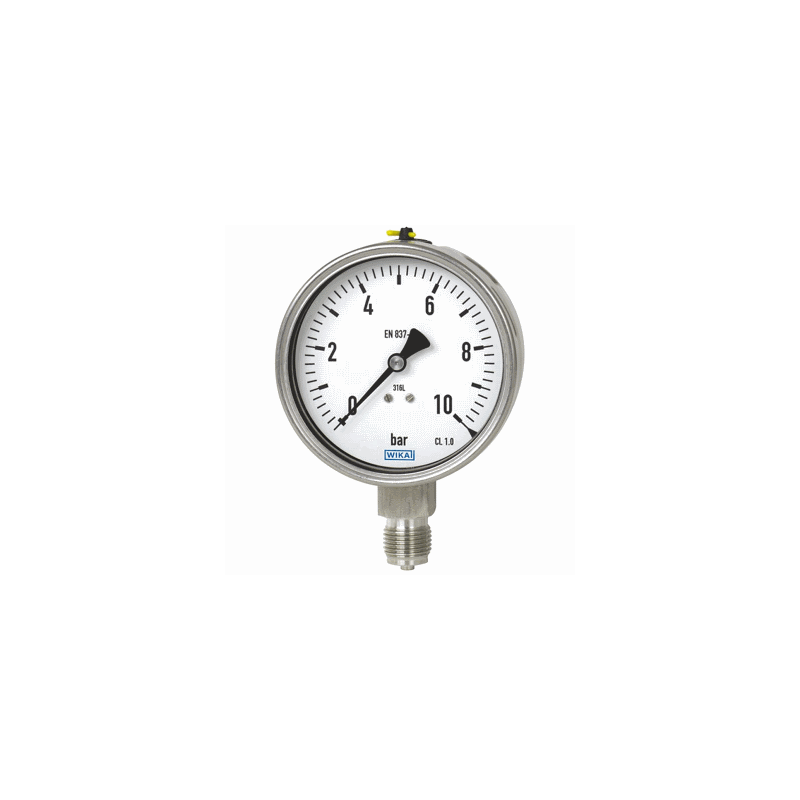

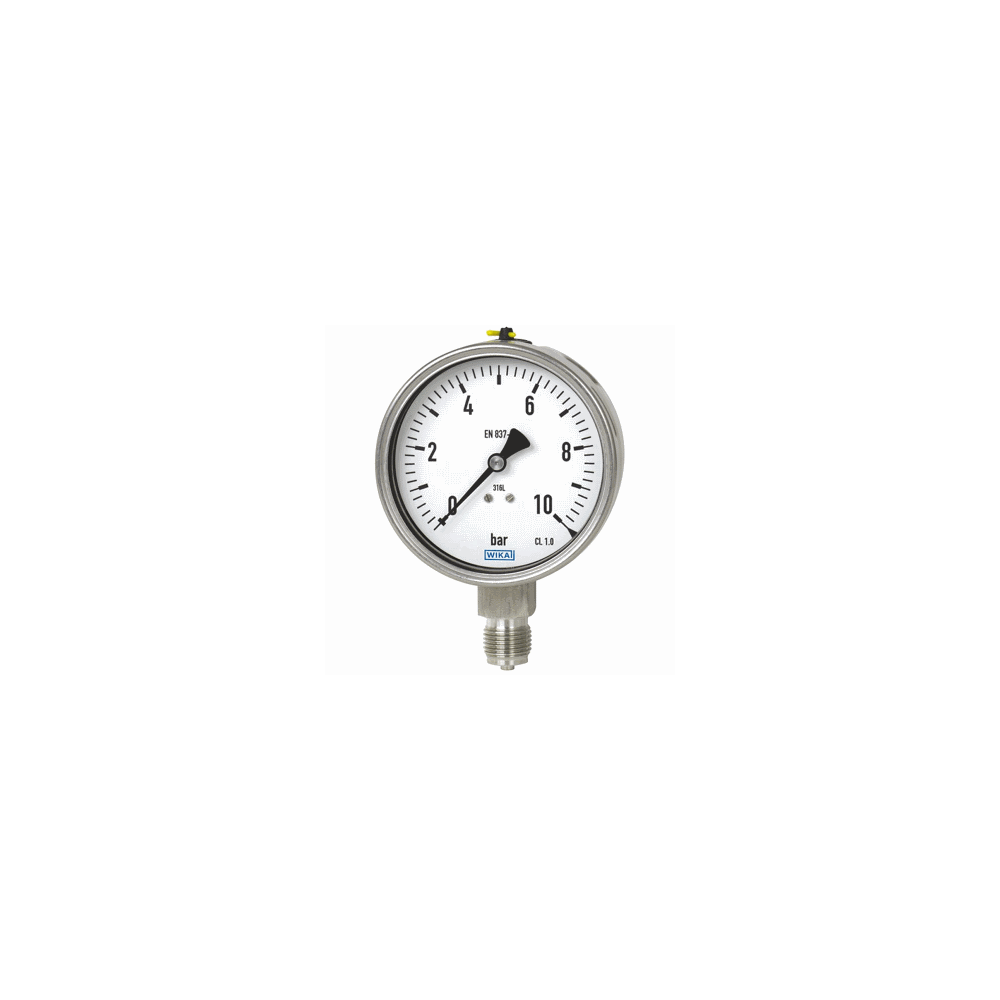

Models 232.50, 233.50 Bourdon tube pressure gauge
New product
Models 232.50, 233.50
Bourdon tube pressure gauge, stainless steel
For the process industry, standard version, NS 63, 100 and 160
Applications
- With liquid-filled case for applications with high dynamic pressure pulsations or vibrations
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience
- Process industriy: Chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology, machine building and plant construction
Special Features
- Excellent load-cycle stability and shock resistance
- All stainless steel construction
- German Lloyd approval
- Scale ranges up to 0 … 1,600 bar
Description
Design
EN 837-1
Nominal size in mm
63, 100, 160
Accuracy class
NS 63: 1.6
NS 100, 160: 1.0
Scale ranges
NS 63: 0 ... 1 to 0 ... 1,000 bar
NS 100: 0 ... 0.6 to 0 ... 1,000 bar
NS 160: 0 ... 0.6 to 0 ... 1,600 bar
or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation
NS 63: Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
NS 100, 160: Steady: Full scale value
Fluctuating: 0.9 x full scale value
Short time: 1.3 x full scale value
Permissible temperature
Ambient: -40 ... +60 °C without liquid filling
-20 ... +60 °C gauges with glycerine filling
Medium: +200 °C maximum without liquid filling
+100 °C maximum with liquid filling 1)
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C):
max. ±0.4 %/10 K of full scale value
Ingress protection
IP65 per EN 60529 / lEC 60529
