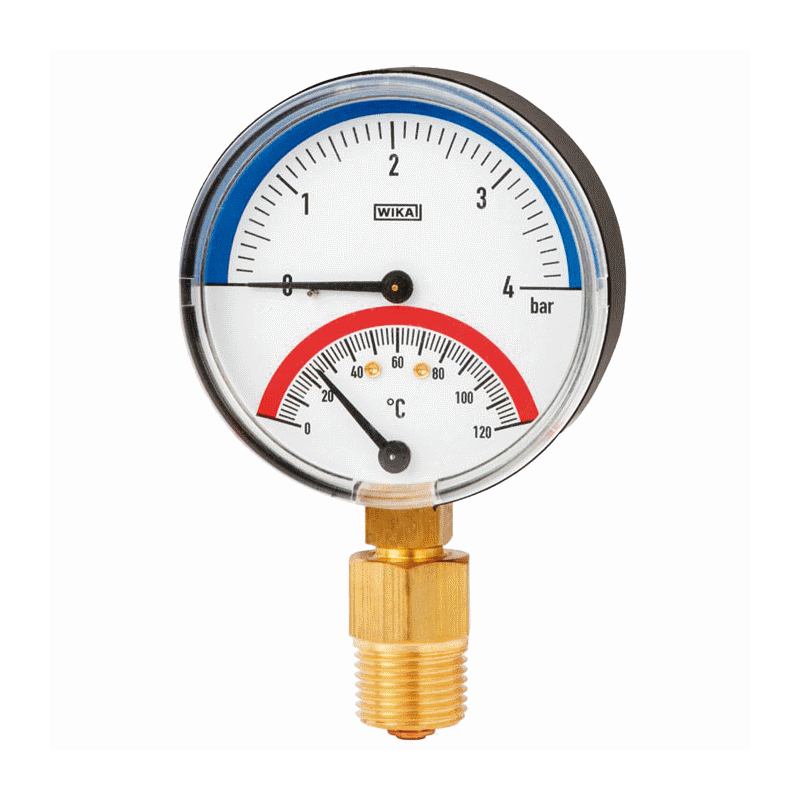

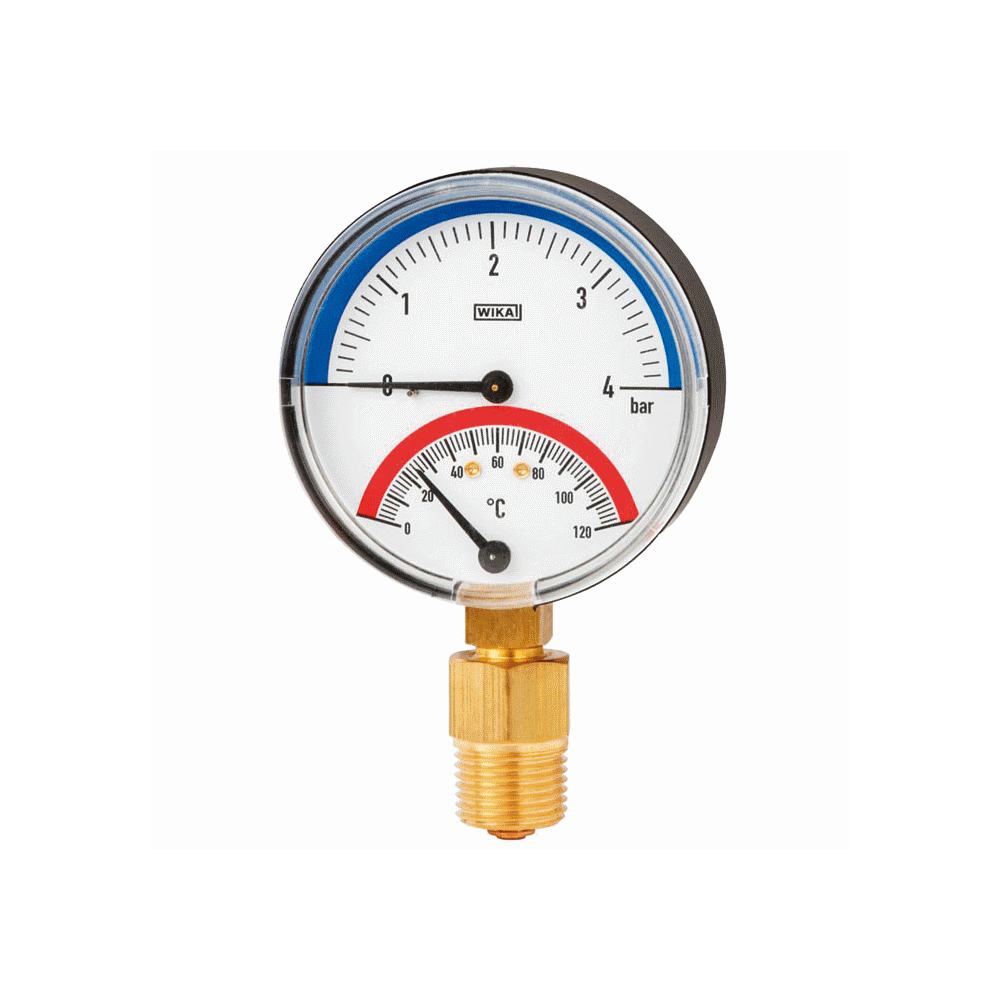

Models 100.0x, 100.1x Thermomanometer For pressure and temperature measurement

New product

Models 100.0x, 100.1x

Thermomanometer

For pressure and temperature measurement

Applications

  • Heating systems
  • Combi-boilers with hot water and heating

Special features

  • Combined indication for pressure and temperature
    Model 100.01: At the top pressure, at the bottom temperature, temperature scale bent downward
    Model 100.02: At the top pressure, at the bottom temperature
    Models 100.10 and 100.12: At the top temperature, at the bottom pressure
  • Scale ranges to 0 … 16 bar, 0 ... 150 °C

Description

The thermomanometer with bimetal system is fitted directly at the measuring point via a stem. The valve allows the measuring instrument to be unscrewed without having to empty the heating system first. Due to the combination of a pressure gauge and a bimetal thermometer the instrument can be used flexibly in a wide variety of applications.



Nominal size in mm
63, 80

Accuracy class

  • Pressure:        2.5 (EN 837-1)
  • Temperature:   ±2.5 °C

Scale ranges

  • Pressure:          0 ... 1 to 0 ... 16 bar
  • Temperature:     0 ... 100 to 0 ... 150 °C

Working ranges

  • Pressure:         Steady:         3/4 x full scale value
                           Fluctuating:   2/3 x full scale value
                           Short time:    Full scale value
  • Temperature:    Full scale value

Measuring elements

  • Pressure:         Bourdon tube, copper alloy
  • Temperature:    Bimetal coil, copper alloy
