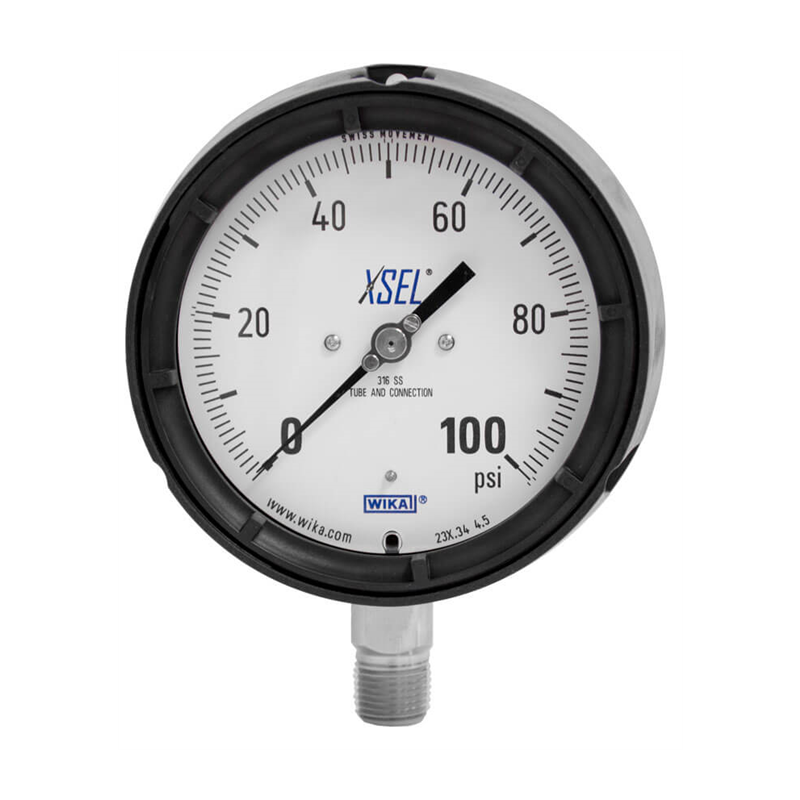

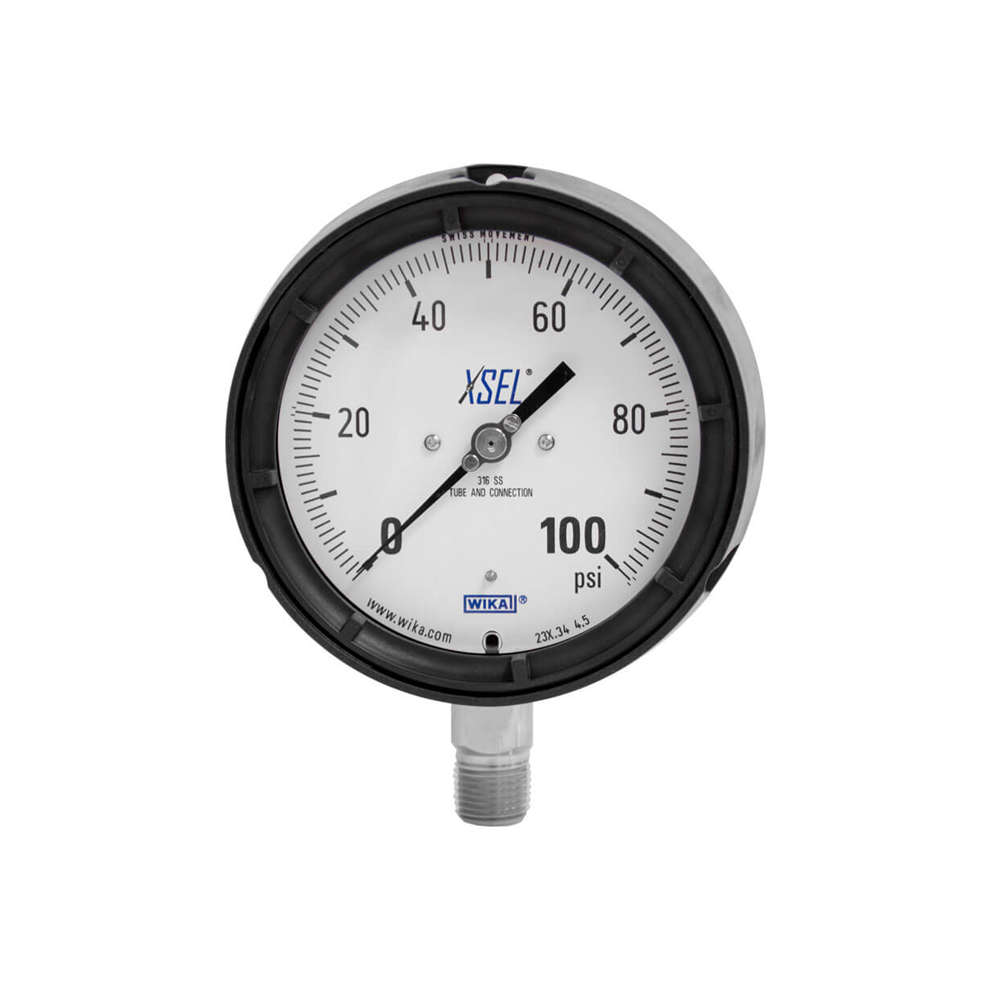

Models 232.34, 233.34 Bourdon tube pressure gauge, stainless steel
New product
Applications
- Increased safety requirements to protect the operator
- With case filling for applications with high dynamic pressure loads and vibrations
- For gaseous and liquid aggressive media that are not highly viscous or crystallising
- Process industry: Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction
Special Features
- Safety version with solid baffle wall designed in compliance with the requirements and test conditions of ASME B 40.100
- Excellent load-cycle stability and shock resistance
- Scale ranges from 0 … 0.6 to 0 … 1,000 bar
Description
This high-quality Bourdon tube pressure gauge has been designed especially for increased safety requirements within the process industry.
By using stainless steel materials for the wetted parts and also a highly resistant plastic for the case, the model 232.34 achieves excellent corrosion resistance. With this, the instrument is ideal for liquid and gaseous media, even in aggressive environments.
Scale ranges of 0 ... 0.6 bar to 0 ... 1,000 bar ensure the measuring ranges required for a wide variety of applications.
WIKA manufactures and qualifies the model 232.34 in accordance with the requirements of the American standard ASME B 40.100 in the safety version.
The safety version is made up of a non-splintering plastic window, a solid baffle wall between measuring system and dial and a blow-out back. In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case.
For harsh operating conditions (e.g. vibrations), all instruments are also available with an optional case filling.
