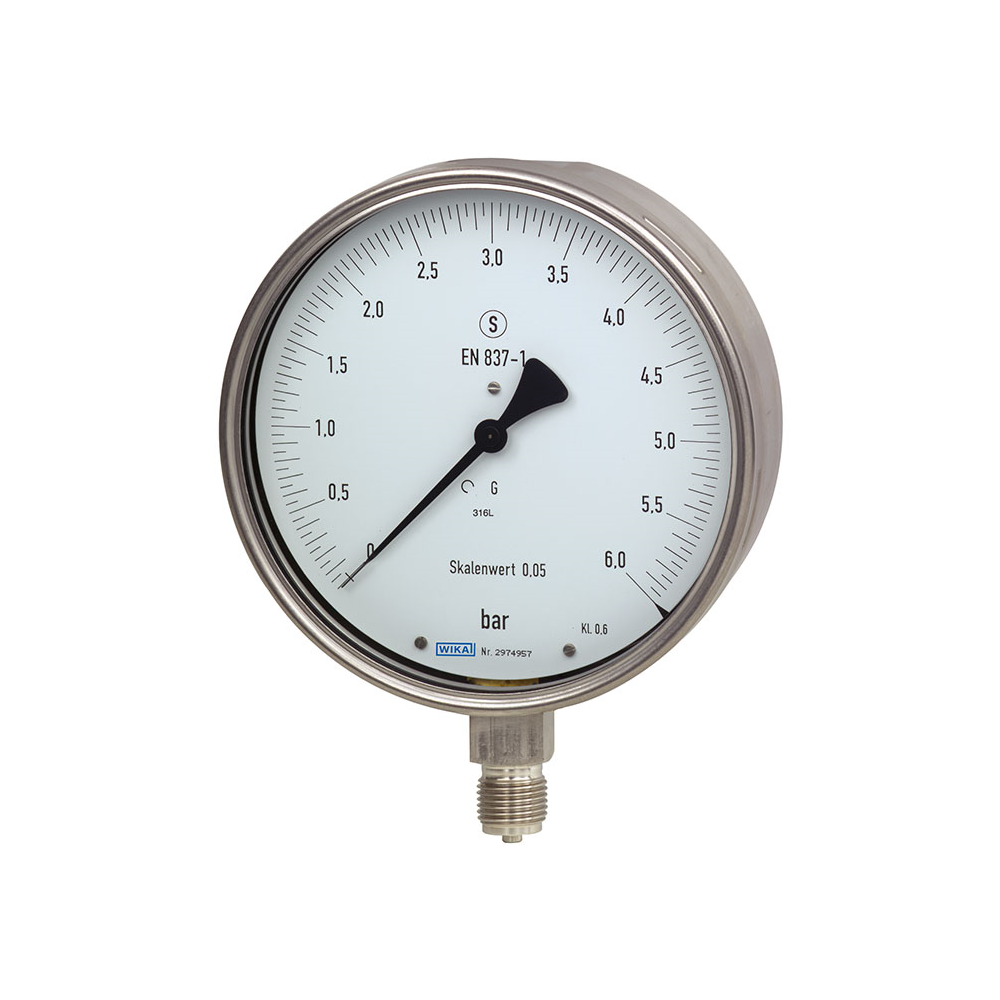

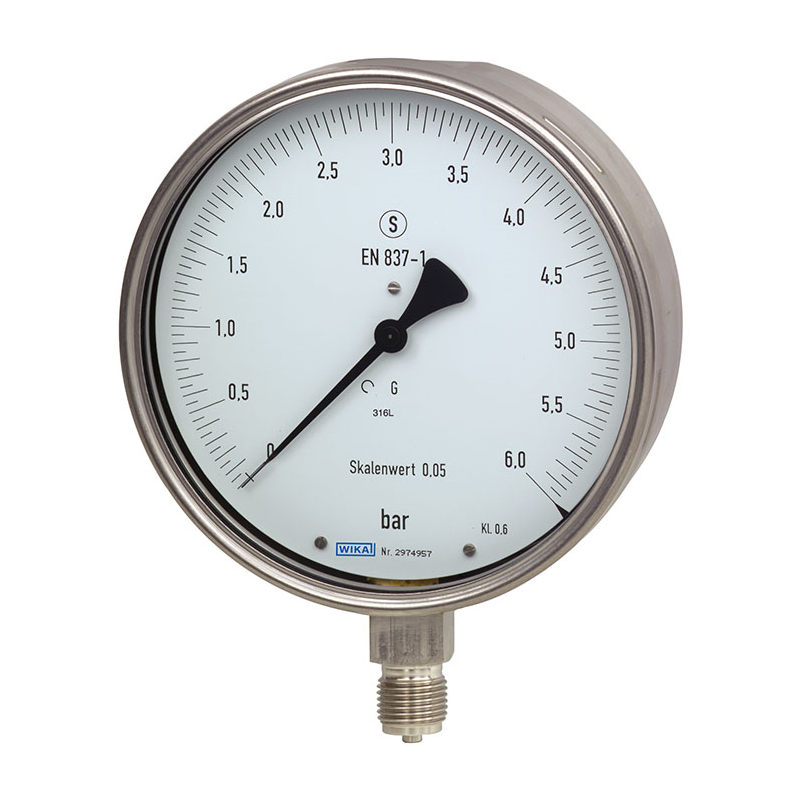

Models 332.30, 333.30 Test gauge, stainless steel
New product
Applications
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Precision measurement in laboratories
- High-accuracy pressure measurement, testing of industrial type pressure gauges
- Increased safety requirements for personal protection
- With liquid-filled case for applications with high dynamic pressure loads or vibrations
Special Features
- Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of EN 837-1
- Completely from stainless steel
- Knife edge pointer for optimal accuracy of reading
- Wear-resistant precision movement from stainless steel
- Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 psi to 0 ... 20,000 psi]
Description
The model 33x.30 high-quality test gauge has been specifically designed for increased safety requirements during high-accuracy pressure measurements and is suited for calibration tasks. With an accuracy class of 0.6 %, the Bourdon tube pressure gauge is suitable for testing industrial type pressure gauges or for precision measurement in laboratories. Optionally, an accuracy class of 0.25 % is possible for pressures ≤ 400 bar [6,000 psi].
The wear-resistant precision movement, the wetted parts and the case are made from high-grade stainless steel. WIKA manufactures and qualifies the Bourdon tube pressure gauge in accordance with the requirements of the EN 837-1 European standard in the "S3" safety level. This safety level is made up of a non-splintering window, a solid baffle wall between measuring system and dial and a blow-out back. In the event
of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case. For harsh operating conditions (e.g. vibrations), all instruments are also available with an optional liquid filling.
The optimal readability of the instrument, with a nominal size of 160 mm [6"], is achieved via a knife edge pointer and a dial with fine divisions. In addition, a mirror scale can be chosen to avoid the parallax error.
On request, a calibration certificate will be provided for this instrument.
Safe storage and transport is ensured by a transport case (accessory).
