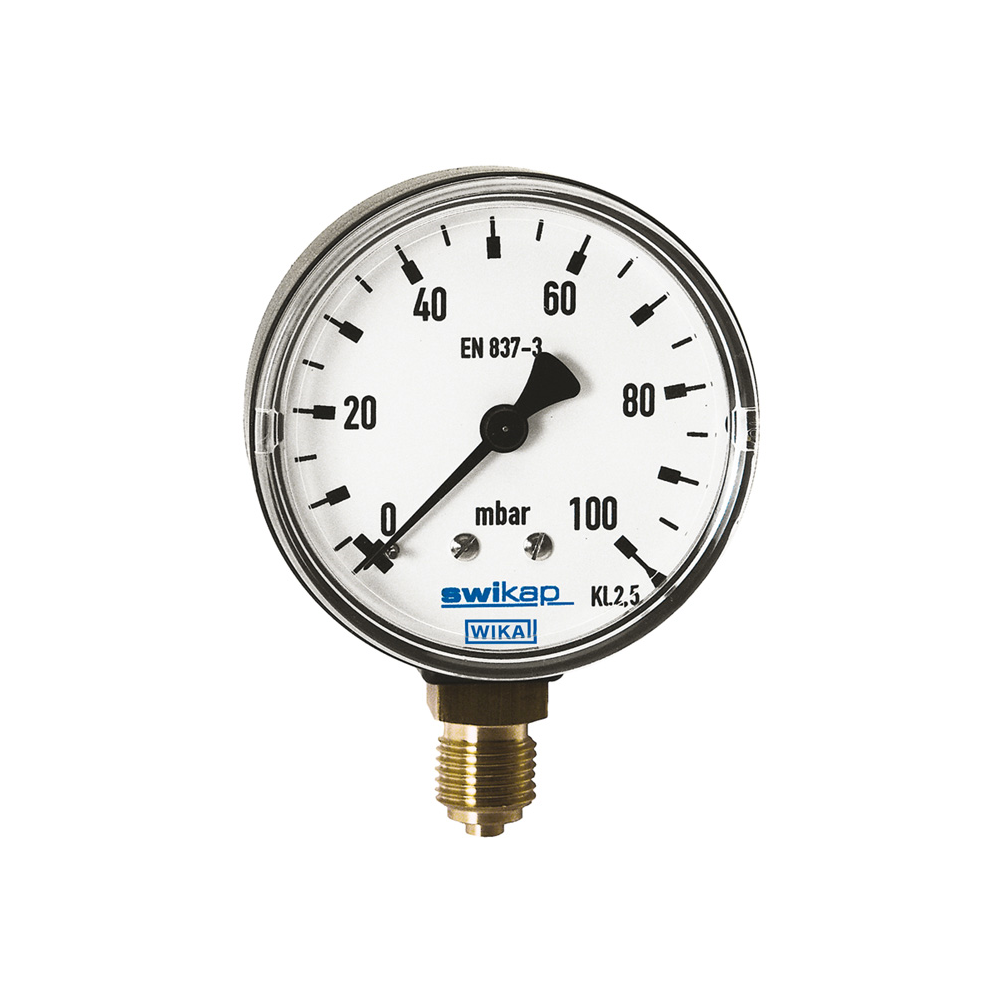

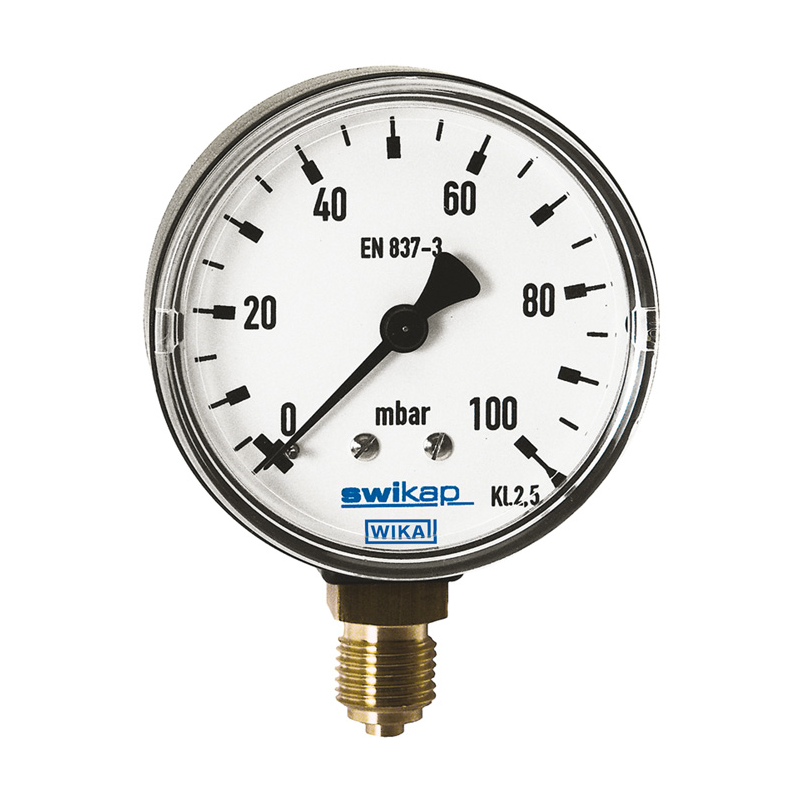

Model 611.13 Capsule pressure gauge, copper alloy
New product
Applications
- For gaseous, dry and non-aggressive media
- Medical, vacuum, environmental, heating engineering, for contents measurement and filter monitoring
Special Features
- Compact design and ingress protection IP53
- Case from plastic
- Special connection location on request
- Low scale ranges from 0 ... 60 mbar
- Maximum scale range 0 ... 1,000 mbar
Description
The model 611.13 capsule pressure gauges are based upon a modular capsule measuring system. One half of the capsule element forms the plastic case and the other half is made of copper beryllium.
The capsule measuring principle is particularly suitable for low pressures. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.
The modular design enables a multitude of customer-specific applications. The model 611.13 capsule pressure gauge is used with great success, particularly in medical applications.
