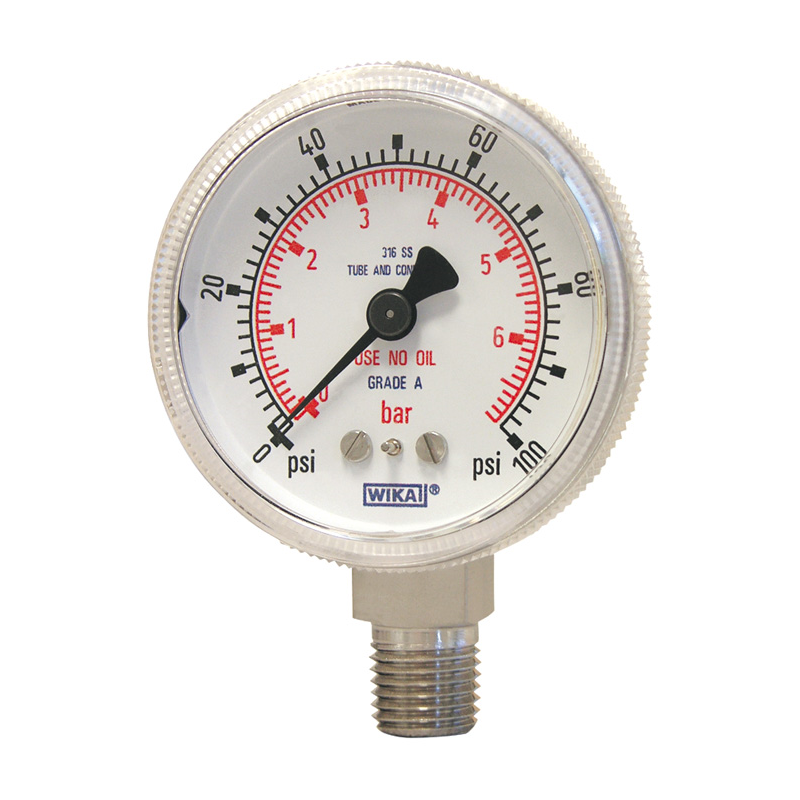

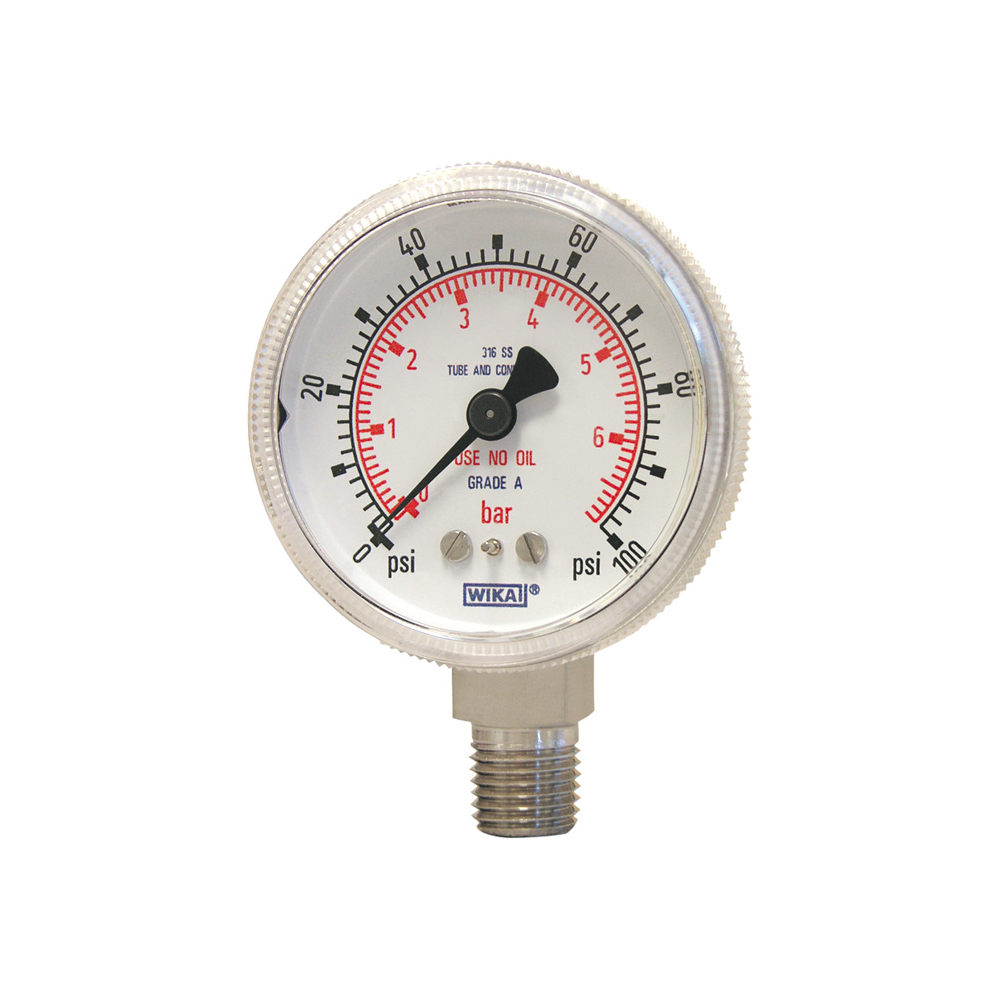

Model 130.15 Bourdon tube pressure gauge, stainless steel
New product
Applications of the bourdon tube pressure gauge
- For gaseous and liquid, also aggressive media for demanding high purity applications, also in aggressive ambience
- For all HP (high purity) applications
- Semiconductor and flat panel industry
- Gas distribution systems
- Hook-up application
Special Features of the bourdon tube pressure gauge
- Helium leak tested
- Electropolished case
Description of the bourdon tube pressure gauge
Nominal size
1 ½", 2"
Accuracy class
NS 1 ½": Grade B per ASME B40.1
NS 2": Grade A per ASME B40.1
Scale ranges
0 ... 1 to 0 ... 700 bar (0 ... 15 to 0 ... 10,000 psi)
or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature
Ambient: -40 ... +60 °C
Medium: +100 °C maximum
Temperature effect
When the temperature of the measuring system of the bourdon tube pressure gauge deviates from the reference temperature (+20 °C):
max. ±0.4 %/10 K of full scale value
Ingress protection
IP 54 per EN 60529 / lEC 529
