VGBF 65F05-3V-86049222

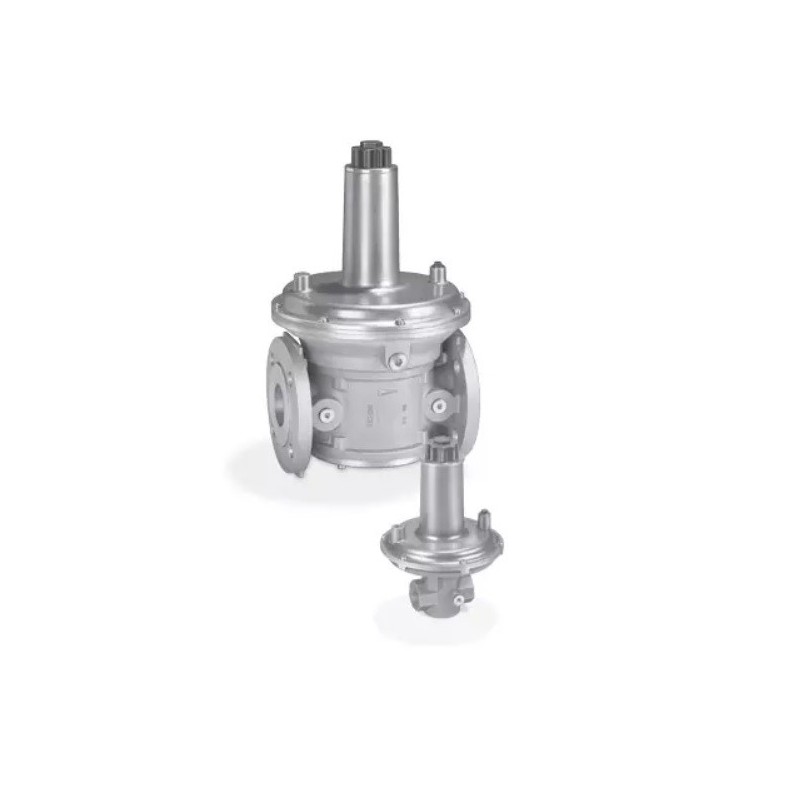

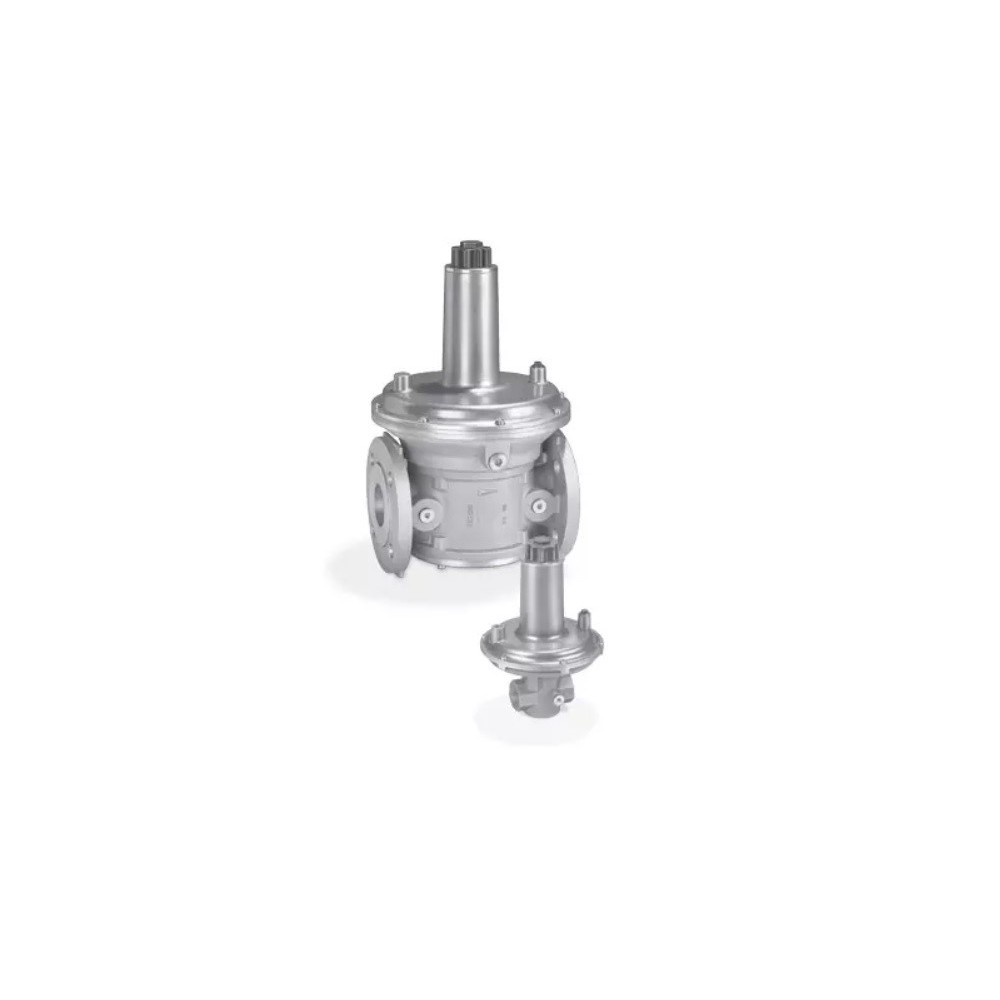

Kromschröder VGBF 65F05-3V-86049222 / Gas Pressure Regulators

Type: Pressure regulator

Spring-loaded, with inlet pressure compensation diaphragm and zero shut-off, to maintain a constant set pressure

Nominal diameter: DN 65

Pipe connection: Flange to ISO 7005

Inlet pressure: pu max. 0.5 bar

Pressure test point: Screw plug at the inlet and outlet

Gas type: Viton seal and diaphragms, for aggressive media and air

Outlet pressure: Set to 20 mbar (range: 10-30 mbar)
