VGBF 80F10-3VZ-86050213

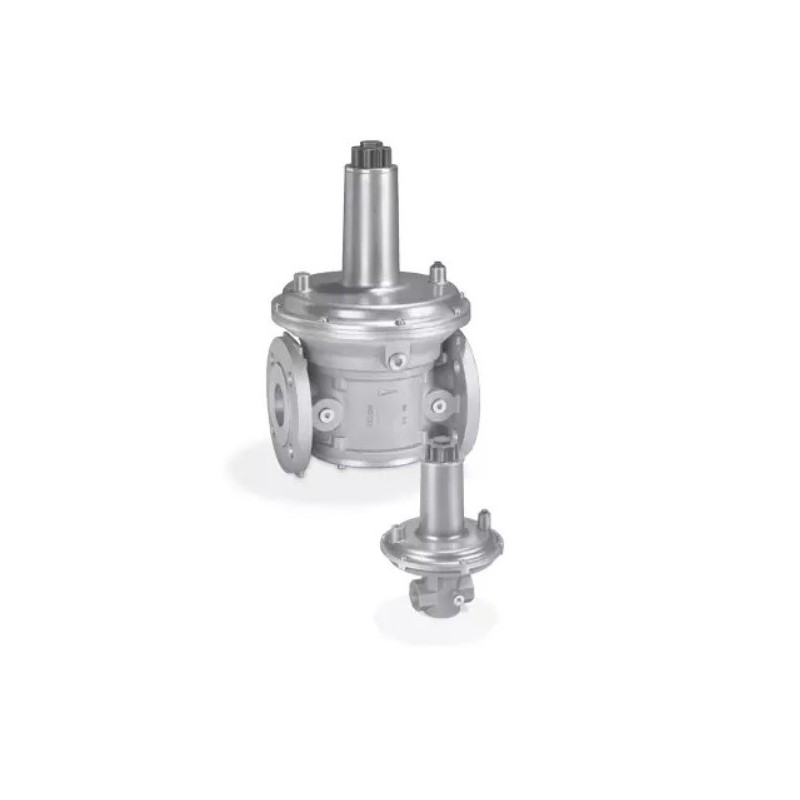

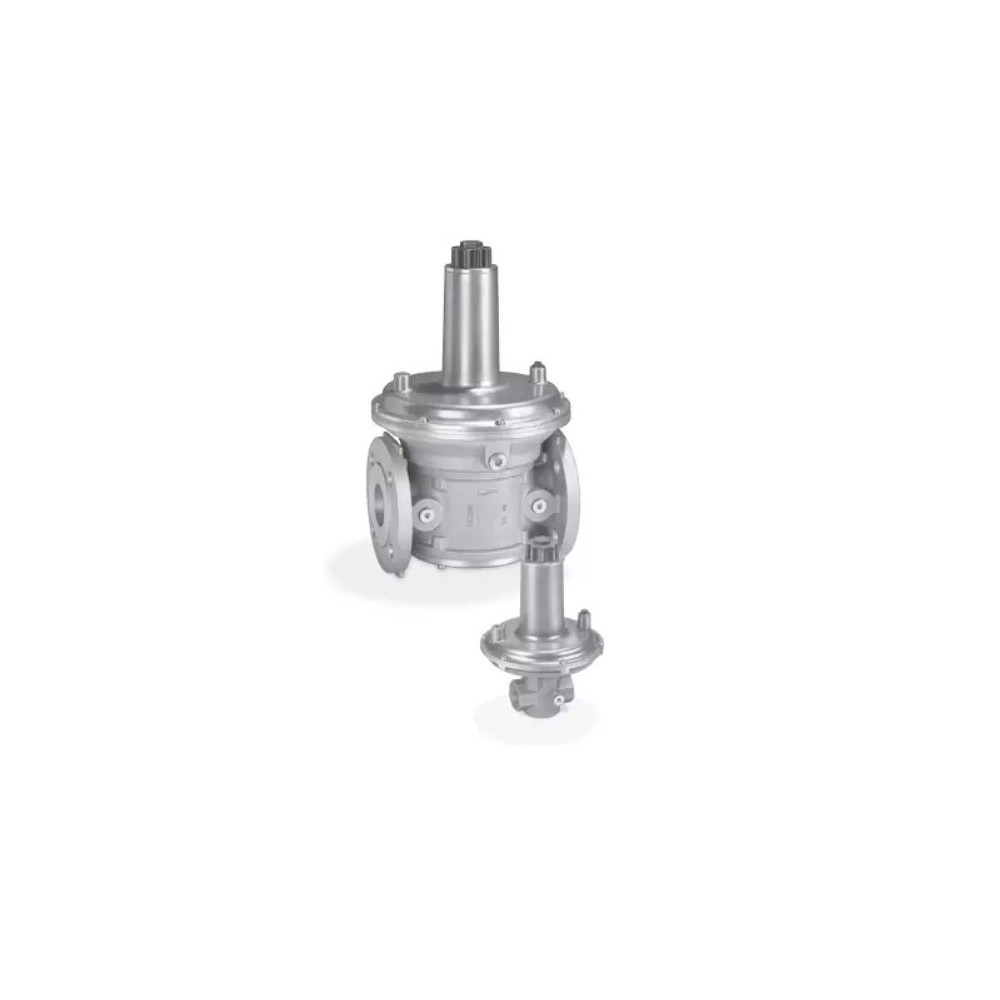

Kromschröder VGBF 80F10-3VZ-86050213 / Gas Pressure Regulators

Type: Pressure regulator

Spring-loaded, with inlet pressure compensation diaphragm and zero shut-off, to maintain a constant set pressure

Nominal diameter: DN 80

Pipe connection: Flange to ISO 7005

Inlet pressure: pu max. 1 bar

Pressure test point: Screw plug at the inlet and outlet

Gas type: Viton seal and diaphragms, for aggressive media and air

Outlet pressure: Special outlet pressure range
