VAD 350R/NW-25A-88004052
New product

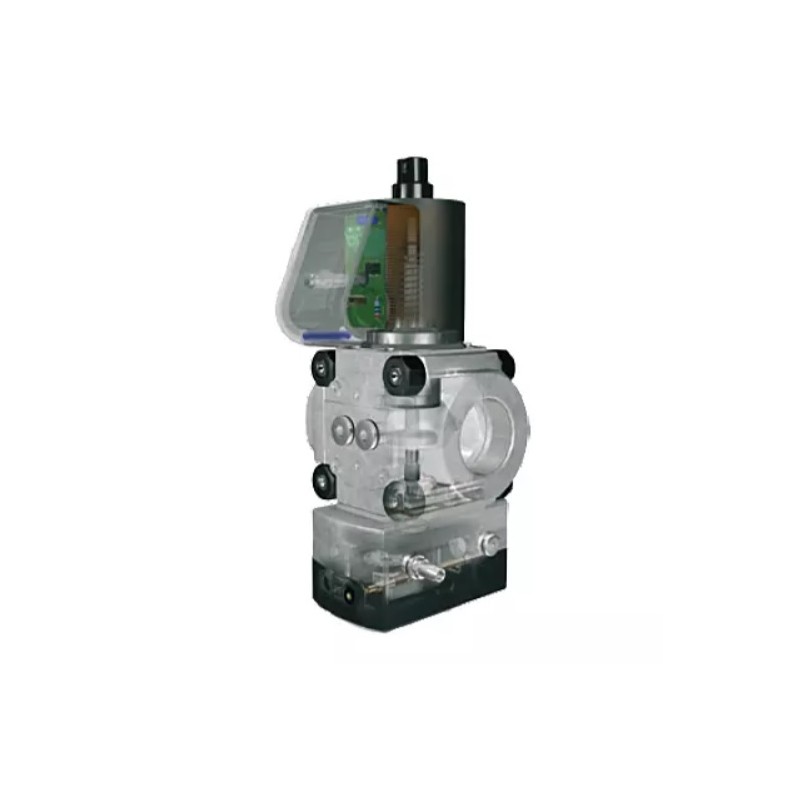

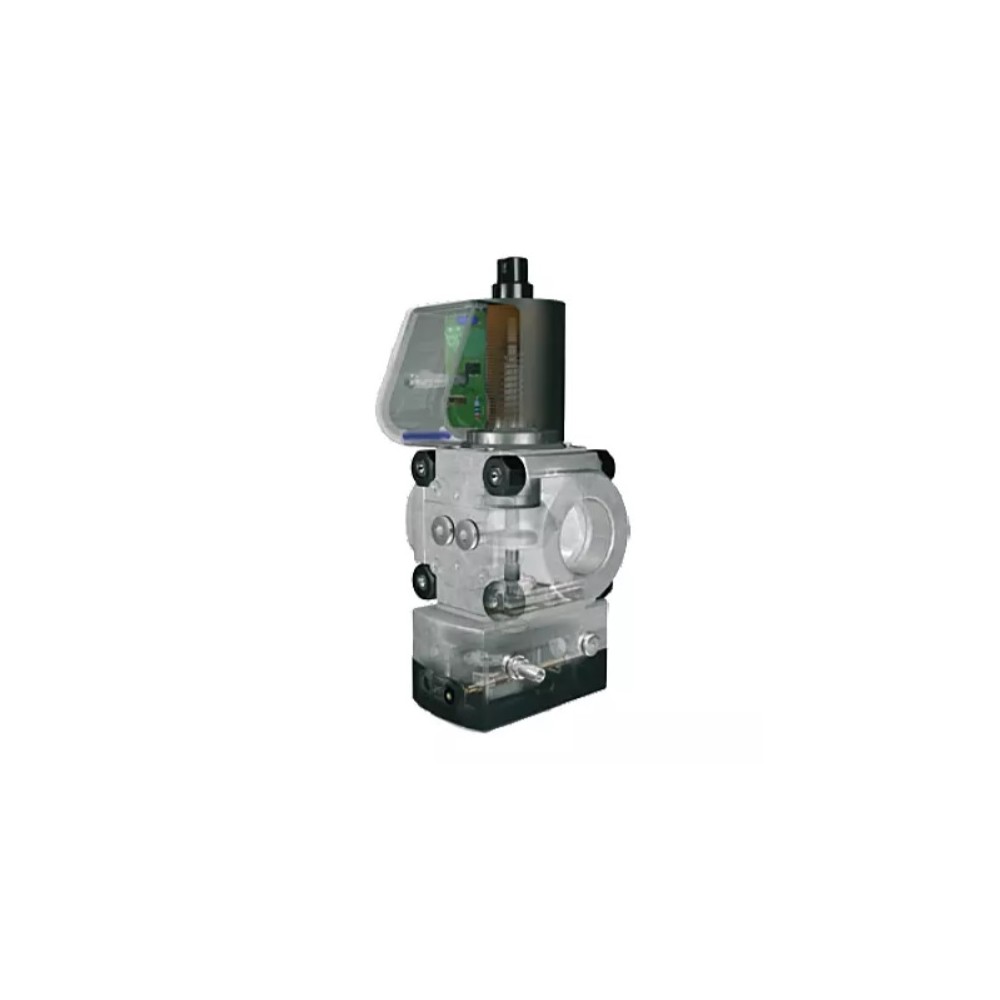

Kromschröder VAD 350R/NW-25A-88004052 / Gas Pressure Regulators
Type: Pressure regulator with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65, FM and CSA approved
Size: 3
Certification: EU certified
Inlet: DN 50 (2'')
Outlet: DN 50 (2'')
Pipe connection: Rp internal thread
Opening properties: Quick opening, quick closing
Mains voltage: 230 V~, 50/60 Hz
Electrical connection: M20 cable gland
Attached to the left side of the connection box:
Attached to the right side of the connection box:
Outlet pressure range: 2.5-25 mbar
Valve seat: Normal
Accessories, right: 2 screw plugs
Accessories, left: 2 screw plugs
