VAD 240R/NW-100A-88006182
New product

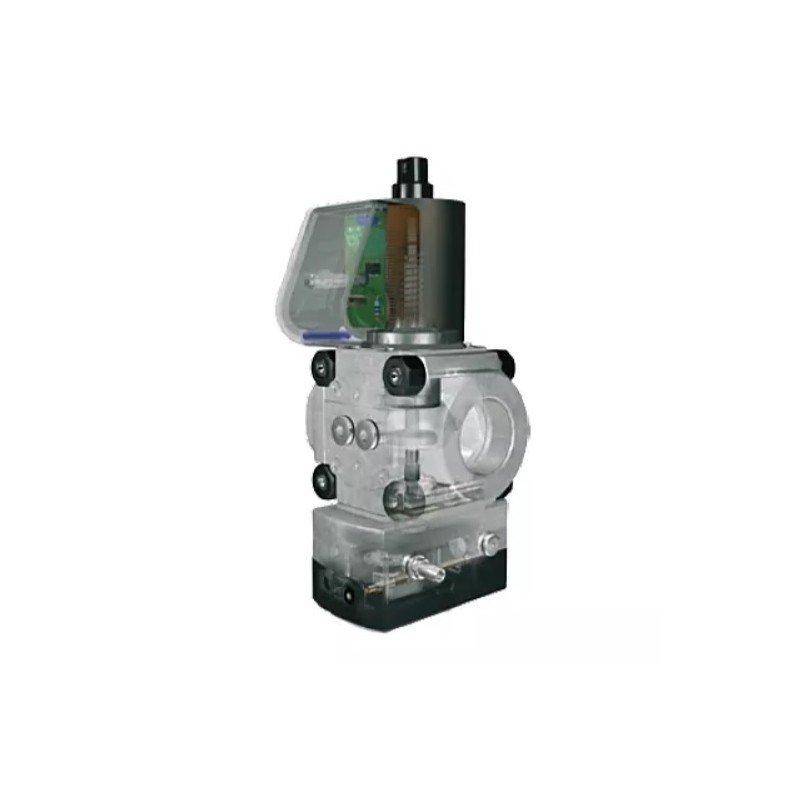

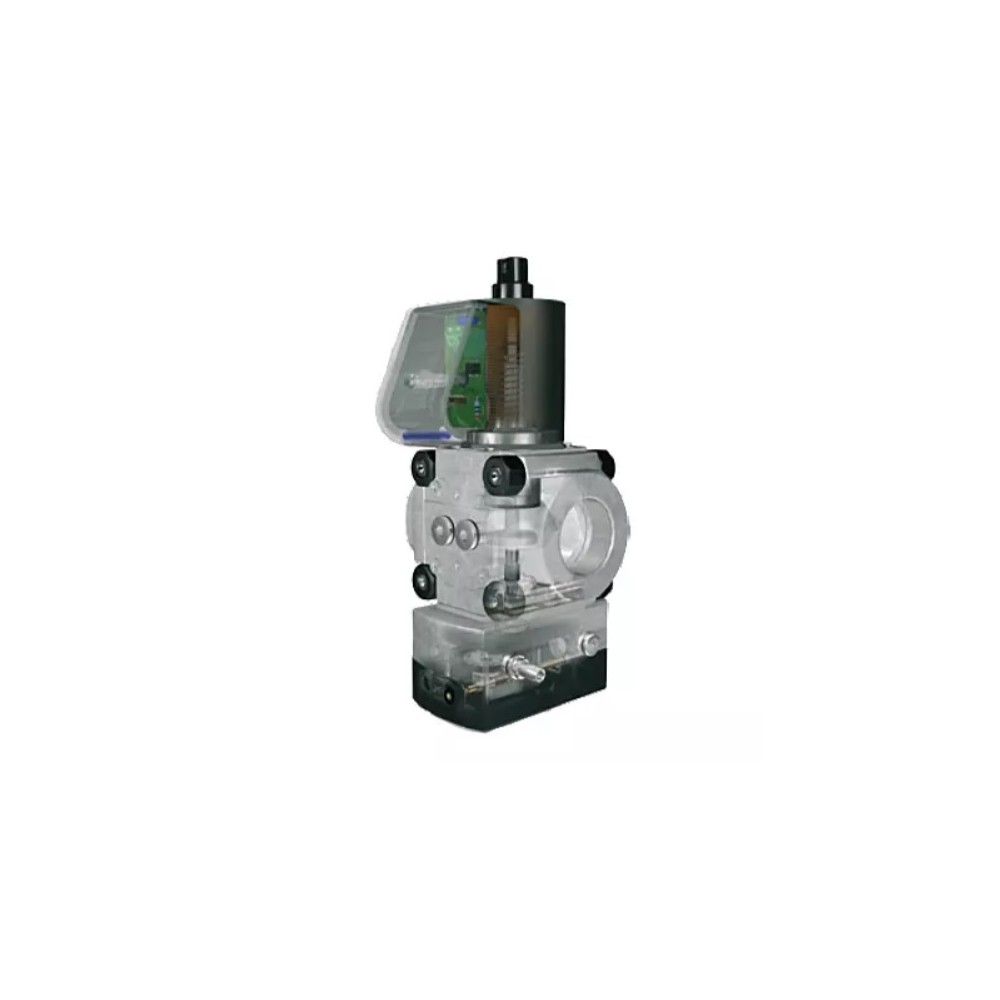

Kromschröder VAD 240R/NW-100A-88006182 / Gas Pressure Regulators
Type: Pressure regulator with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65, FM and CSA approved
Size: 2
Certification: EU certified
Inlet: DN 40 (1 1/2'')
Outlet: DN 40 (1 1/2'')
Pipe connection: Rp internal thread
Opening properties: Quick opening, quick closing
Mains voltage: 230 V~, 50/60 Hz
Electrical connection: M20 cable gland
Attached to the left side of the connection box:
Attached to the right side of the connection box:
Outlet pressure range: 35-100 mbar
Valve seat: Normal
Accessories, right: 2 pressure test points pu and pd
Accessories, left: Pressure switch, 5-40 mbar
Test point of left-hand pressure switch: Outlet pressure
