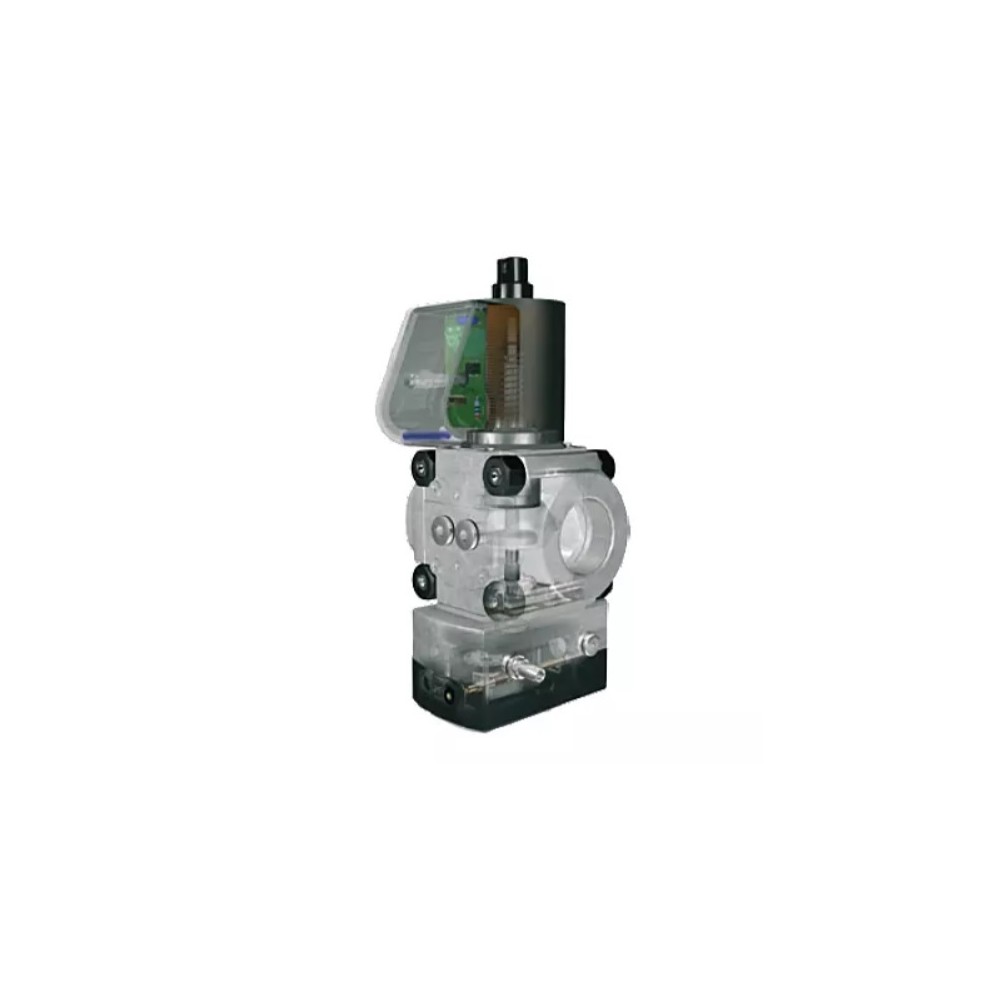

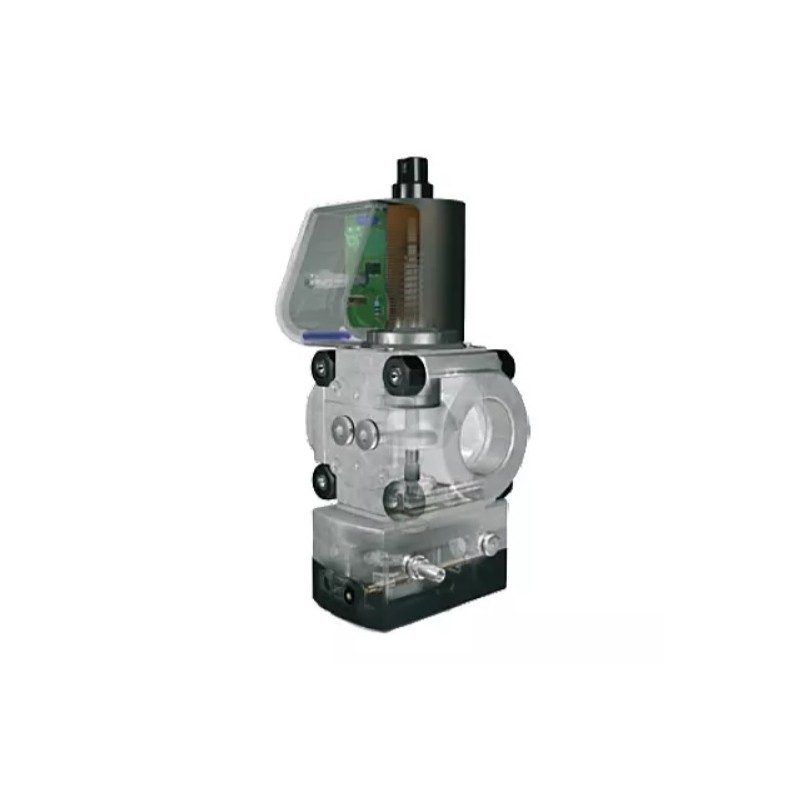

VAD 2E40R/40R05D-50VWL/3-/-3-88100278

Kromschröder VAD 2E40R/40R05D-50VWL/3-/-3-88100278 / Gas Pressure Regulators

Type: Pressure regulator with solenoid valve

For gas, air and biologically produced methane, with pilot lamp, IP 65, completely assembled and checked for tightness

Size: 2

Certification: EU certified

Inlet: DN 40 (1 1/2'')

Inlet pipe connection: Rp internal thread

Outlet: DN 40 (1 1/2'')

Outlet pipe connection: Rp internal thread

Inlet pressure: pu max. 500 mbar (7 psig)

Module 1: 1st valve with pressure regulator, outlet pressure: 20-50 mbar

Module 3: Fine-adjusting valve

Mains voltage: 230 V~, 50/60 Hz

Flow: From right to left

Electrical connection of 1nd valve: Plug with socket

Connection material: FItted

Connection side: Attached to the right side of the connection box

1st valve accessories on viewing side: Pressure switch DG 110VC

Test point for pressure switch on 1st valve viewing side: Outlet pressure

1st valve accessories on rear side: Pressure switch DG 110VC

Test point for pressure switch on 1st valve rear side: Inlet pressure
