VAD 2E40F/40F05D-100VWR/PP/PP-88102135

Kromschröder VAD 2E40F/40F05D-100VWR/PP/PP-88102135 / Gas Pressure Regulators

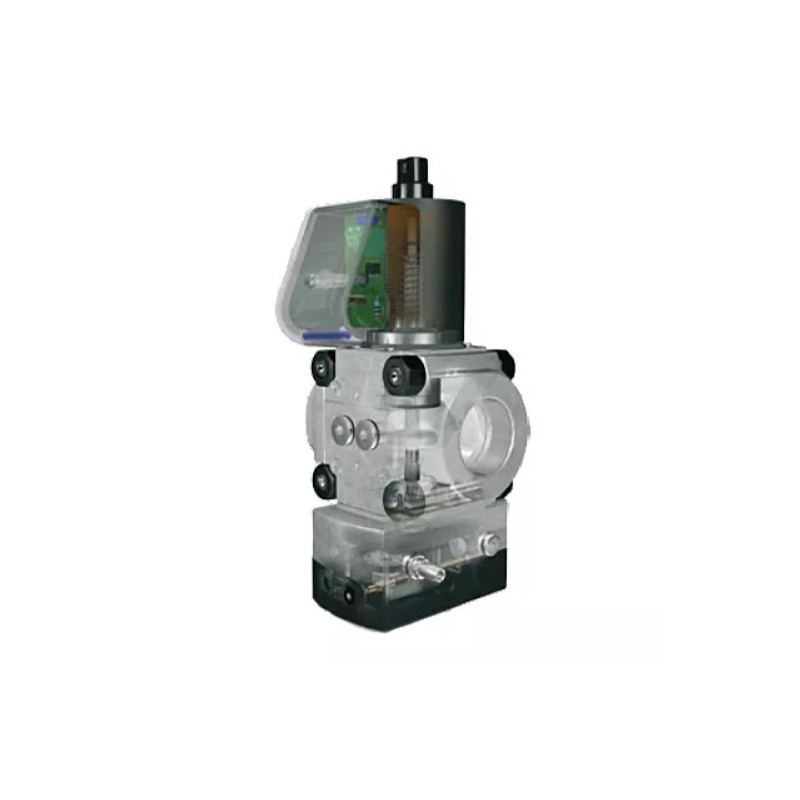

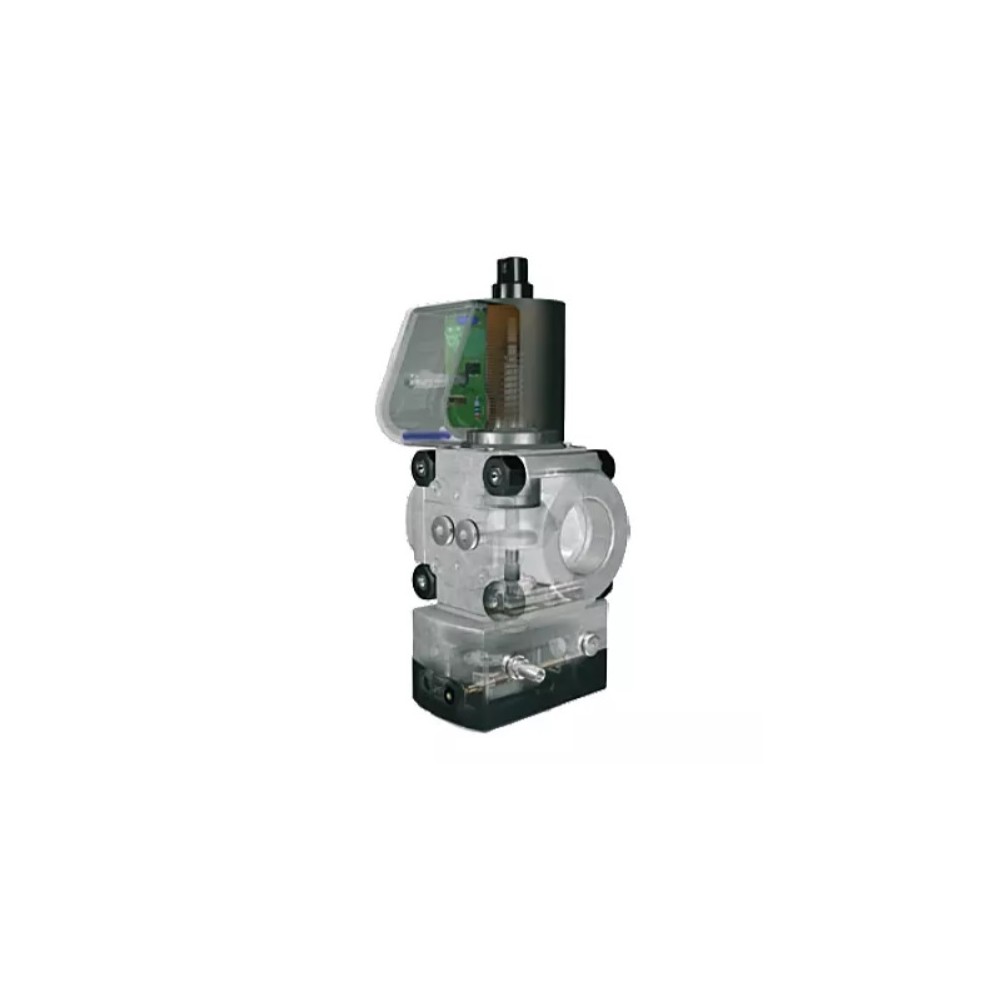

Type: Pressure regulator with solenoid valve

For gas, air and biologically produced methane, with pilot lamp, IP 65, completely assembled and checked for tightness

Size: 2

Certification: EU certified

Inlet: DN 40 (1 1/2'')

Inlet pipe connection: Flange to ISO 7005

Outlet: DN 40 (1 1/2'')

Outlet pipe connection: Flange to ISO 7005

Inlet pressure: pu max. 500 mbar (7 psig)

Module 1: 1st valve with pressure regulator, outlet pressure: 35-100 mbar

Module 3: Fine-adjusting valve

Mains voltage: 230 V~, 50/60 Hz

Flow: From left to right

Electrical connection of 1nd valve: M20 cable gland

Connection material: Enclosed

1st valve accessories on viewing side: 2 screw plugs

1st valve accessories on rear side: 2 screw plugs
