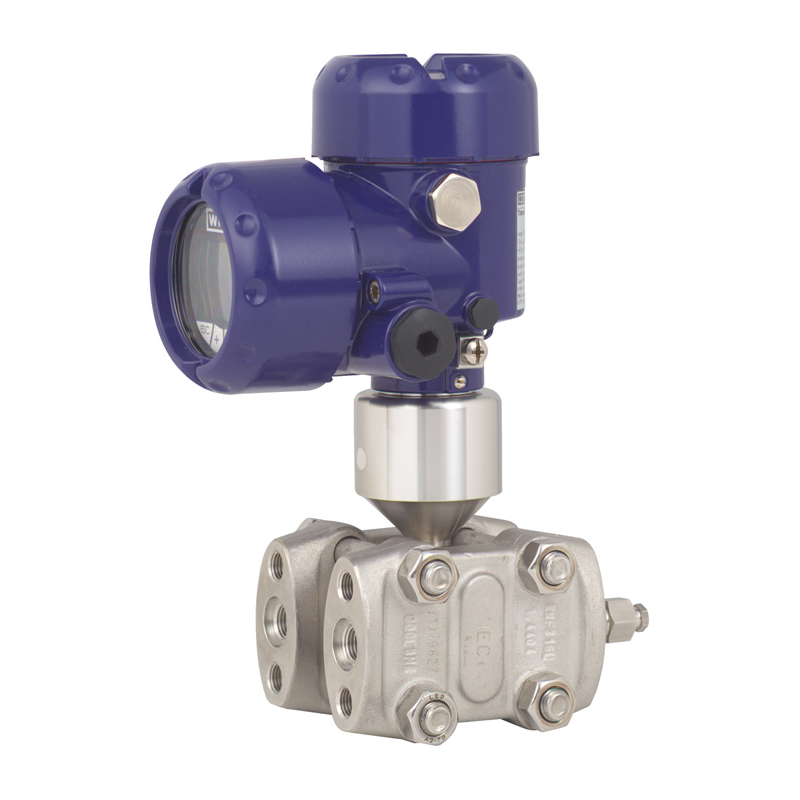

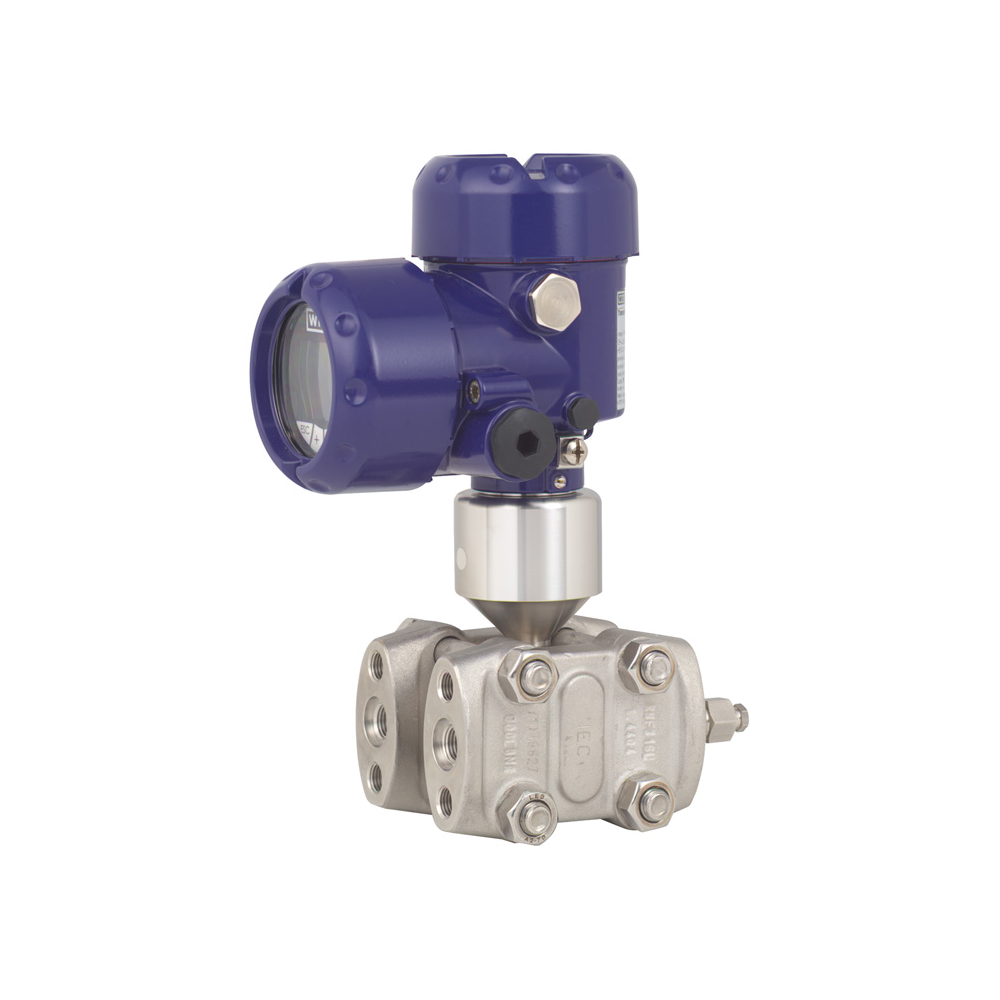

Model DPT-10 Differential pressure transmitter
New product
Applications of the differential pressure transmitter
-
- Process engineering
- Chemical industry
- Petrochemical industry
- Food and beverage industry
- Machine building and plant construction
Special features of the differential pressure transmitter
-
- High measuring accuracy
- Freely scalable measuring ranges
- Various Ex approvals
- Seven different housing variants
-
Configuration via DTM (Device Type Manager) in accordance with the FDT (Field Device Tool) concept (e.g. PACTware)
Description of the differential pressure transmitter
With its 4 ... 20 mA, 4 ... 20 mA HART®, PROFIBUS® PA or FOUNDATION Fieldbus™ output signals, combined with either intrinsically-safe or flameproof ignition protection (in accordance with ATEX), the DPT-10 differential pressure transmitter is ideally suited to applications requiring these features. The electronics of all transmitters with explosion protection, even for the flameproof variant, are intrinsically safe. Thus it is possible to make adjustments on the instrument in EX areas while the instrument is live.
Versatile in application
The DPT-10 is suitable for many industrial measuring requirements, such as flow measurement using differential pressure elements, level measurement or filter and pump monitoring. With diaphragm seals fitted, the DPT-10 differential pressure transmitter is also suitable for harsh process conditions. As a result of the available measuring ranges from -10 ... +10 mbar [-0.15 ... +0.15 psi] to -40 ... +40 bar [-600 ... +600 psi] and a static pressure limitation of up to 420 bar [6,300 psi], the instrument can be used in almost any application. The internal digital signal processing, combined with proven sensors, guarantees high accuracy and the best long-term stability.
There are seven different housing variants available for the DPT-10 differential pressure transmitter and thus, it is possible to select a variant suited to every operating environment. The case itself can be rotated through 330° and is available in plastic, aluminium and stainless steel. An electropolished stainless steel housing (316L) is available to meet the high demands of the food industry and pharmaceutical industry.
Easy configuration and operation
Service and configuration at the DPT-10 differential pressure transmitter is carried out using the optional display and operation module, which can be fitted in four positions. The operation menu has a simple and self-explanatory structure and has nine selectable languages. Alternatively the operating parameters can be set using the PACTware™ free and non-proprietary configuration software. An instrument-specific DTM enables easy integration into a corresponding Distributed Control Systems.
