REL52009 PowerLogic P3 Protection Relays
New product

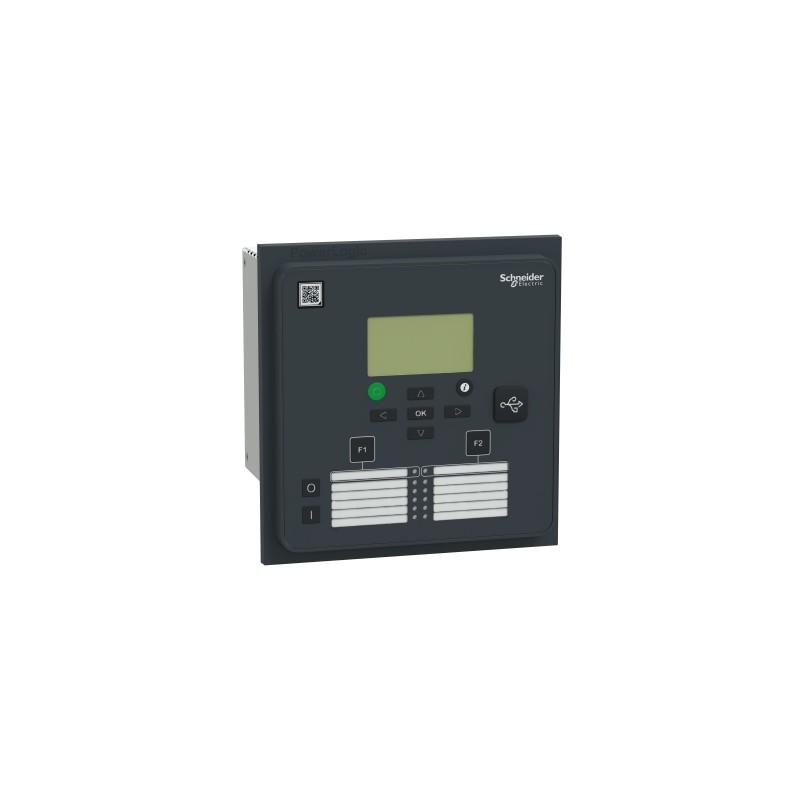

Schneider REL52009 PowerLogic P3 Protection Relays
| Product line | PowerLogic P3 |
|---|---|
| Product or Component Type | Protection relay |
| Relay application | Universal |
| Product reference | P3U30-5ABA1BCAA |
| circuit breaker type | 30TE |
| Power supply | 24...48V DC |
| Measuring inputs | Phase current for 3 1/5 A CT Residual current for 1 1/5 A CT 4 Voltage for 100 V/110 V VT |
| Number of Digital Inputs (DI) | 16 |
| number of analog inputs | 0 |
| Number of Digital Outputs (DO) | 1 watchdog 8 |
| Number of analog outputs | 0 |
| Communication ports | Front USB port with 1 connector Rear RJ45 with 2 connectors |
| Communication protocols | IEC 61850 ed. 1 IEC 61850 sr. 2 IEC 60870-5-101 DNP3 TCP Modbus TCP Ethernet/IP |
| communication port protocol | RSTP PRP |
| Cyber Security | Password protection Port hardening |
| Protective functions | Phase overcurrent 50/51 Directional phase overcurrent 67 Earth fault overcurrent 50N/51N Directional earth fault 67N Transient earth fault 67NI Capacitor bank unbalance 51C Broken conductor 46 I2/I1 Cold load trip Switch ON to fault (SOTF) Breaker failure 50BF Directional active underpower 37P Fault locator 21FL Recloser 79 Phase undercurrent 37 Excessive starting time, locked rotor 48/51LR Motor restart inhibition 66 Capacitor overvoltage 59C Negative sequence overcurrent 46 Overvoltage 59 Undervoltage 27 Positive sequence undervoltage 27P Earth fault overvoltage 59N Underfrequency 81/81N Rate of change of frequency 81R Synchronization control 25 Lockout relay 86 CT supervision 60 VT supervision 60 H2 detection 68H2 H5 detection 68H5 H5 detection Programmable stages 99 Programmable curve |
| communication port protocol | No |
| Measurement functions | Current 3-phase Current zero sequence Current positive sequence Current negative sequence Current ratio of negative and positive Voltage phase-to-ground Voltage phase-to-phase Voltage zero sequence Voltage positive sequence Voltage negative sequence Voltage ratio of negative and positive Short circuit fault reactance Fault location current Earth fault reactance Frequency Active power RMS active power Reactive power RMS reactive power Apparent power RMS apparent power Active energy Reactive energy Cos φ Tan φ Power angle Power factor Voltage phasor diagram view Current phasor diagram view Current 2nd, 15th harmonics with THD Voltage 2nd, 15th harmonics with THD Voltage interruption Condition monitoring CB wear |
| Control functions | Switchgear control and monitoring Programmable switchgear interlocking Local control on single-line diagram Local control with I/O keys Local/remote control 2 function keys Mobile application with Easergy SmartApp Web-server Programmable logic |
| Controllable switchgear devices | 4 controlled + 8 displayed |
| Number of settings groups | 4 |
| Monitoring functions | Trip circuit supervision 74 Circuit breaker monitoring Relay self-monitoring |
| Diaries and records | Event recording Interrupt recording Opening content |
| switchgear diagnostic type | CT/VT supervision ANSI code: 60 CT supervision Trip circuit supervision ANSI code: TCS |
| connections - terminals | Screw removable (digital input/output) Pin removable (current transformer) Pin removable (voltage transformer) |
| working threshold | 24...230V AC/DC |
|---|---|
| time synchronization protocol | SNTP |
| software name | EcoStruxure Power Device ESetup Easergy Pro |
| web server | Built-in HTTP server |
| screen type | LCD 128 x 64 pixels with single line diagram |
| number of keys | 2 customizable |
| local signaling | 4 LED 8 LED programmable |
| Standards | IEC |
| height | 169.5mm |
| width | 170mm |
| depth | 205mm |
| product weight | 2.5 kg maximum |
