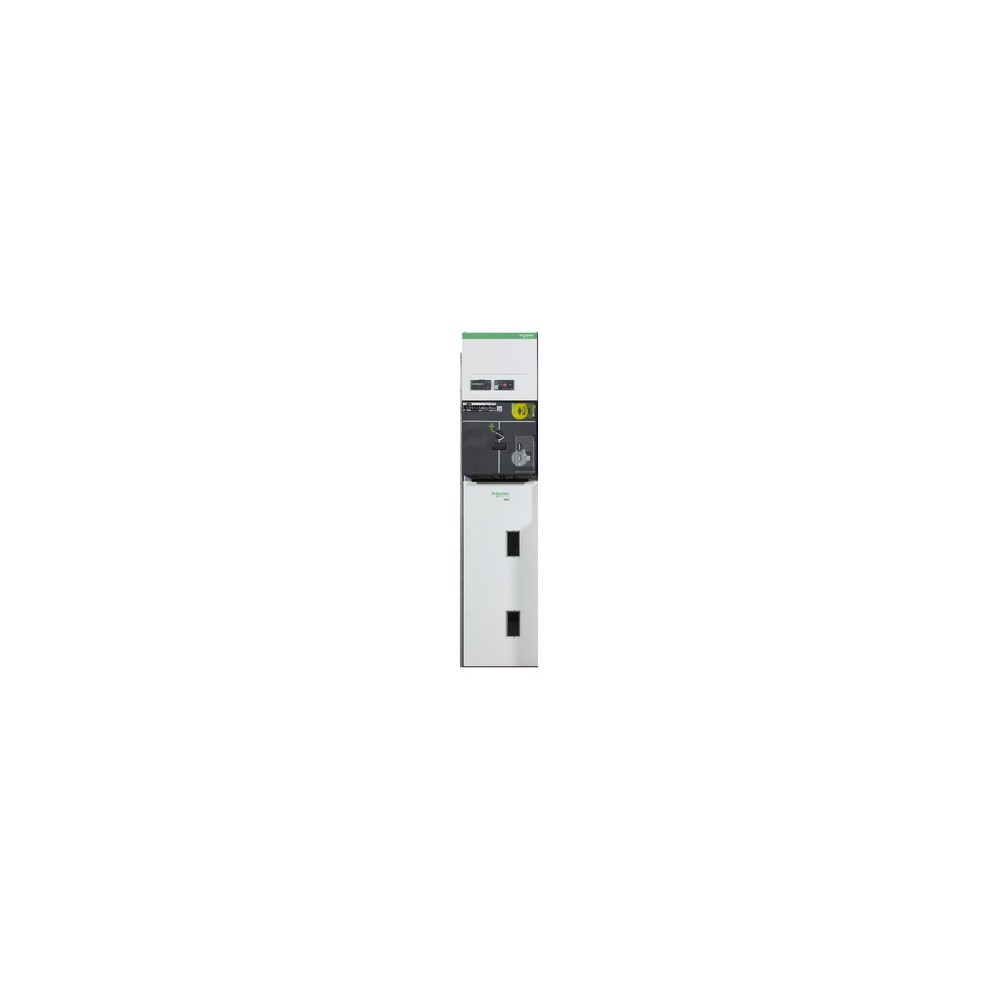

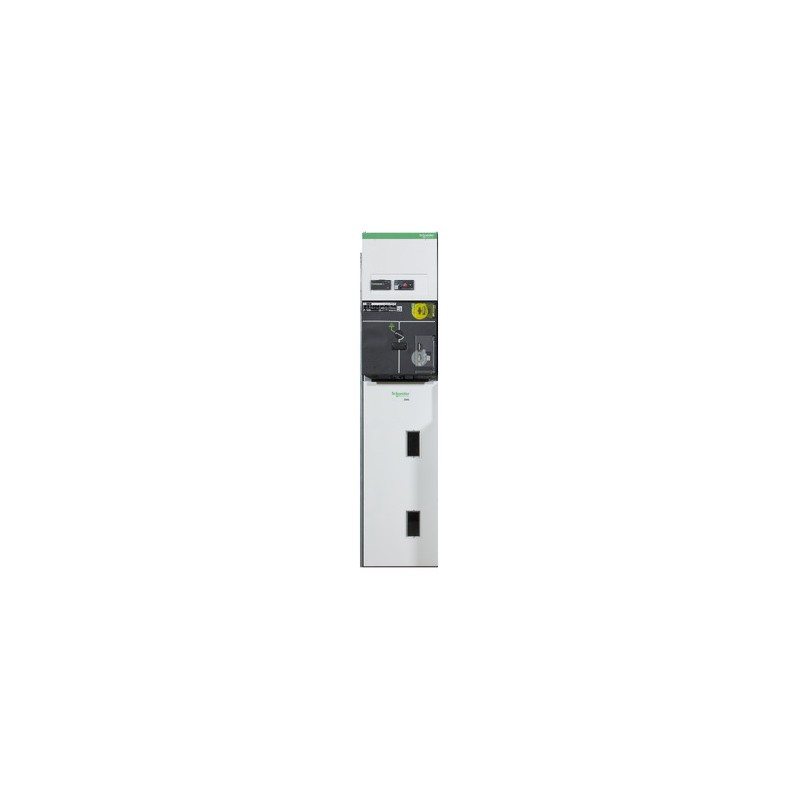

Schneider SM61FSKAQ3B4002 SM6-24 QM Air Insulated Modular Switchgears
| Product range | SM6-24 |
|---|---|
| Type of technology | Isolated painting in the air |
| Device name | QM 375 |
| Type of product or equipment | Cell |
| Application | Transformer Protection C13-100 Transformer Protection C13-200 |
| Remote control type | without |
| Internal arch classification | A-FL |
| Internal arc holding | 12.5 kA 0.7 s |
| Network frequency (fr) | 2 phases |
| Dielectric test voltage | 24 kV |
| Shock wave isolation level 1.2/50 µs (Up) | 125 kV per phase |
| Operating voltage (Us) | 15...20 kV |
| Nominal current (In) | 200 A |
| Rated short-term permissible current (Ik) | 12.5 kA rms 1s |
| Standards | IEC 62271-100 IEC 62271-102 IEC 62271-200 NF C 13-100 NF C 13-200 |
| Cable connection | 1 single-pole 95 mm² per phase |
|---|---|
| Cable entry | Down |
| nominal bus current | 400 A |
| Order type | CI1 manual |
| Fuse type | UTE Solefuse |
| Equipment included | 1 x heating resistor 220 V AC 50 W included in the cable compartment, |
| Thermal monitoring | No - TH110 |
| Voltage indication | voltage presence indicator (VPIS) |
| Auxiliary contacts | 2 NO + 2 NC switch 1 OF fuse blown |
| Interlock type | Mechanical |
| Locking device | Type C4: MT/BT/TR |
| Lock type | Cylinder |
| Composition of the device | 1 x fuse-switch combination 1 x earthing switch |
| Weight | 130 kg |
| Height | 1690 mm |
| Width | 375 mm |
| Depth | 940 mm |
| Ambient air temperature during operation | -5…40 °C |
|---|---|
| Ambient storage temperature | -40…70 °C |
| IP protection degree | IP40 |
| Vibration resistance | 0.5 gn horizontal class 2 0.4 gn vertical class 2 |
| Operating altitude | = 1000 m |
