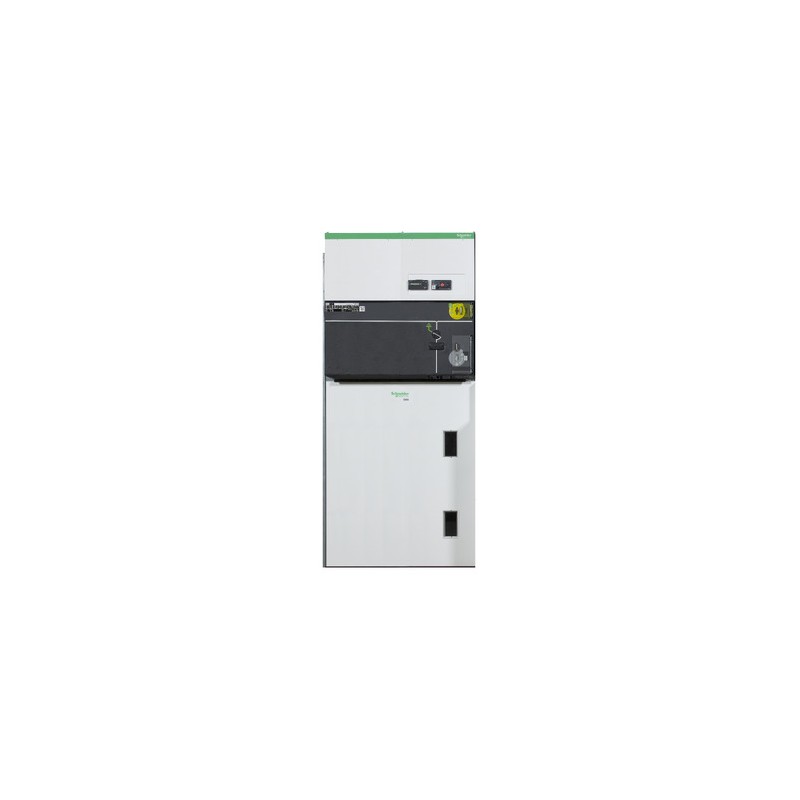

Schneider SM62GAM2X000000000 SM6 36 DM1A Air Insulated Modular Switchgears

Product line SM6
Technology Type Air insulated cell
Product Group GAM2 750
Product or Component Type Cell
Device Application Incoming cable connection unit
Internal arch classification A-FL downward gas outlet
Exhaust gas Gas outlet bottom
Internal arc protection 16 kA 1 s
network frequency 50/60Hz
dielectric test voltage 36 kV
[Icw] rated short-time withstand current 170 kV peak
[Uimp] rated impulse withstand voltage 70 kV rms 50 Hz for 1 min
Rated continuous current (Ir) 630 A
[Icw] rated short-time withstand current 16 kA rms
Standards IEC 62271-200

Complement
Mass 250 kg
Width 750mm
Depth 1400mm

Environment
ambient air temperature for operation -5…40 °C
IP protection degree IP3x
vibration resistance 0.5 gn horizontal class 2
0.4 gn vertical class 2
Working Height <= 1000m
