SM62DMHTD2X150A000 SM6-36 DM1A-H
New

SM62DMHTD2X150A000 SM6-36 DM1A-H

New product

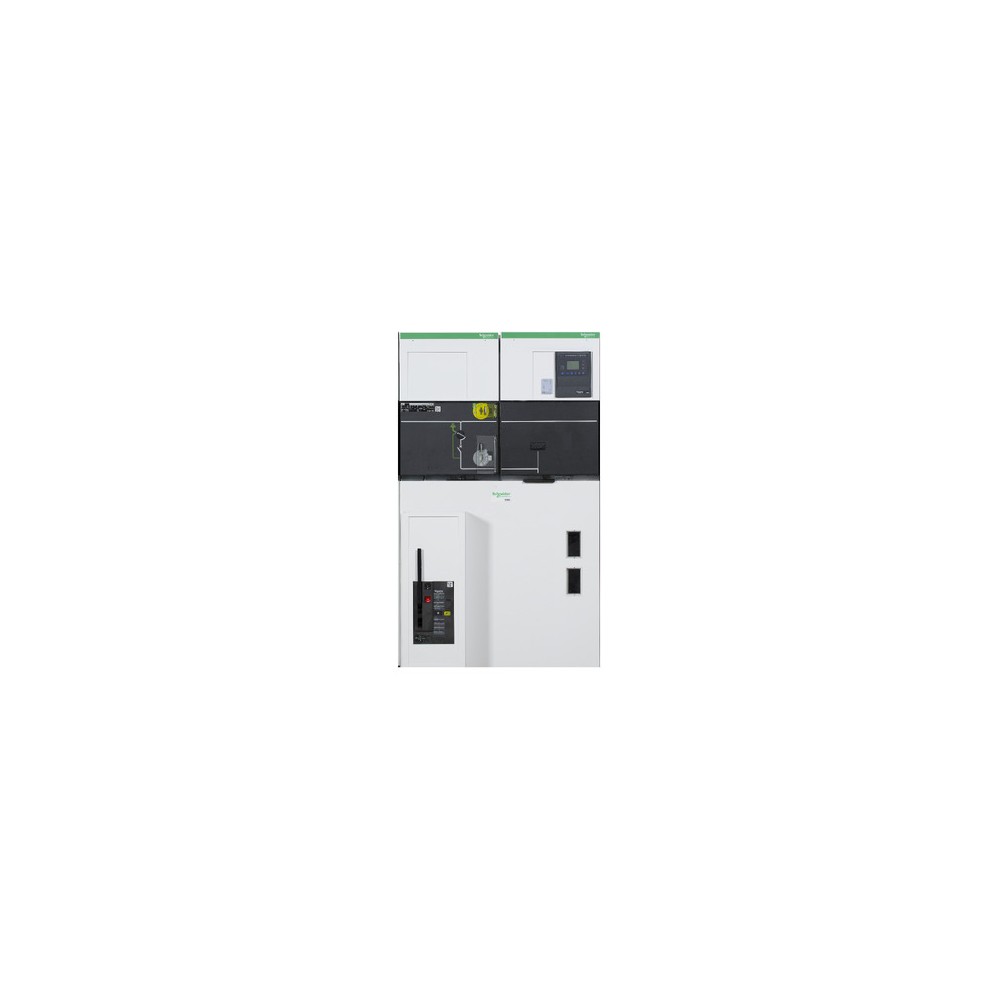

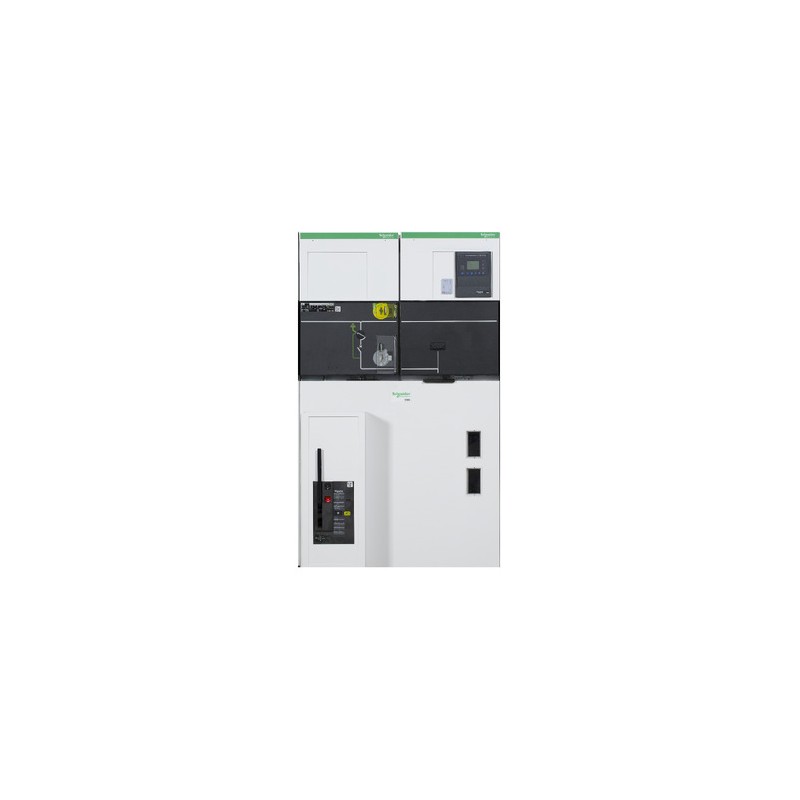

Schneider SM62DMHTD2X150A000 SM6-36 DM1A-H Air Insulated Modular Switchgears

Product line SM6
Technology Type Air insulated switchgear
SF1
Product Group DM1A hat/toroid
Product or Component Type Cell
Internal arc protection 16 kA 1 s
network frequency 50/60 Hz
dielectric test voltage 36 kV
[Icw] rated short-time withstand current 170 kV power line
Rated continuous current (Ir) 630 A
[Icw] rated short-time withstand current 16 kA rms 1 sec
Standards IEC 62271-200
IEC 62271-100:2012

Complement
busbar nominal current 630 A
operator type CS
Spring-loaded RI type on/off button breaker
type of key lock Recessed lock
Protection Type Cutter
CB name SF1 tip 1
CB setup Separable
Nominal switching sequence A - 0.3 s - KA - 3 dk - KA
CB operating position From the left (B1)
Width 1000 mm
Depth 1400 mm

Environment
ambient air temperature for operation -5…40 °C
Storage Environmental Conditions -40…70 °C
IP protection degree IP3x
vibration resistance 0.5 gn yatay
0.4 gn dikey
Working Height <= 1000 m

Schneider, Schneider sale, Schneider dıstributor, Schneider partner

SM6-36 Catalogue

Download (11.8M)
