SM62DMTTS1X75A0000 SM6-36 DM1A-T
New

SM62DMTTS1X75A0000 SM6-36 DM1A-T

New product

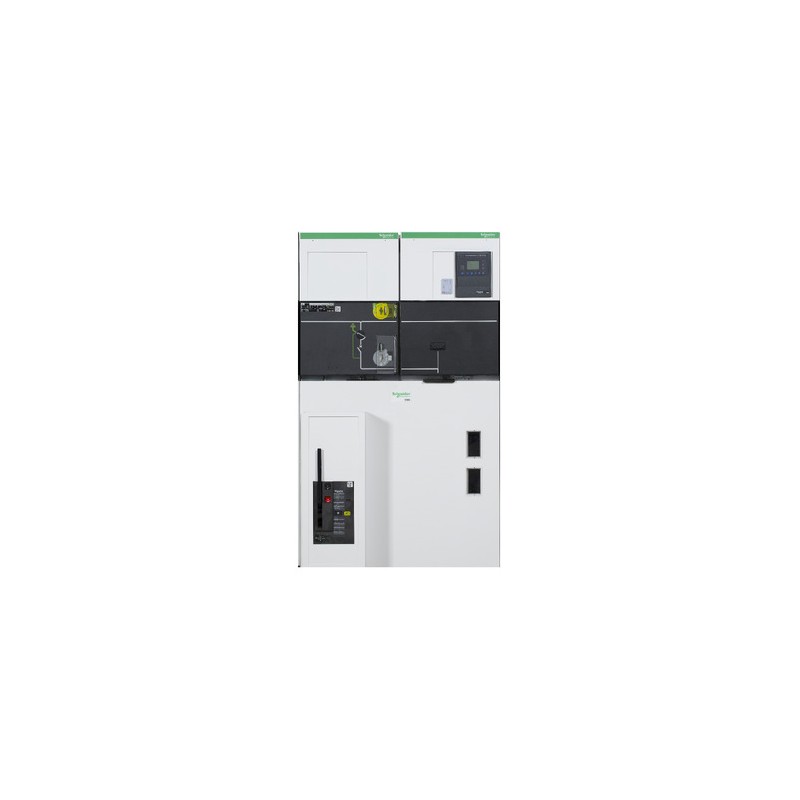

Schneider SM62DMTTS1X75A0000 SM6-36 DM1A-T Air Insulated Modular Switchgears

Product line SM6
Technology Type Air insulated switchgear
SF1
Product Group DM1A line/toroid
Product or Component Type Cell
Internal arc protection 16 kA 1 s
network frequency 50/60Hz
dielectric test voltage 36 kV
[Icw] rated short-time withstand current 170 kV peak
Rated continuous current (Ir) 630 A
[Icw] rated short-time withstand current 16 kA rms 1 sec
Standards IEC 62271-200
IEC 62271-100:2012

Complement
busbar nominal current 630 A
operator type CS
Spring-loaded RI type on/off button breaker
type of key lock Recessed lock
Protection Type Cutter
CB name SF1 type 1
CB setup Separable
Nominal switching sequence A - 0.3 s - KA - 3 min - KA
CB operating position From the left (B1)
Width 1000mm
Depth 1400mm

Environment
ambient air temperature for operation -5…40 °C
Storage Environmental Conditions -40…70 °C
IP protection degree IP3x
vibration resistance 0.5 gn horizontal
0.4 gn vertical
Working Height <= 1000m

Schneider, Schneider sale, Schneider dıstributor, Schneider partner

SM6-36 Catalogue

Download (11.8M)
