SM62DMTTS2X600A000 SM6-36 DM1A-T
New product

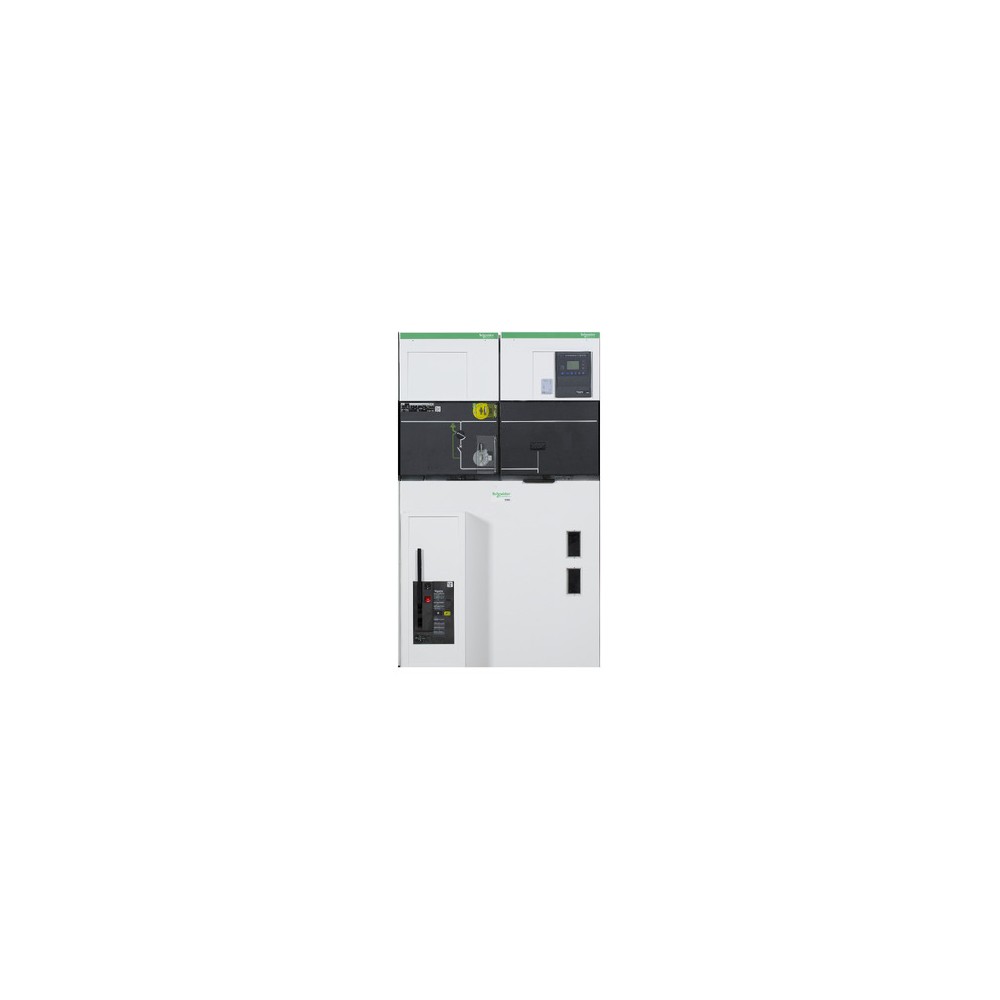

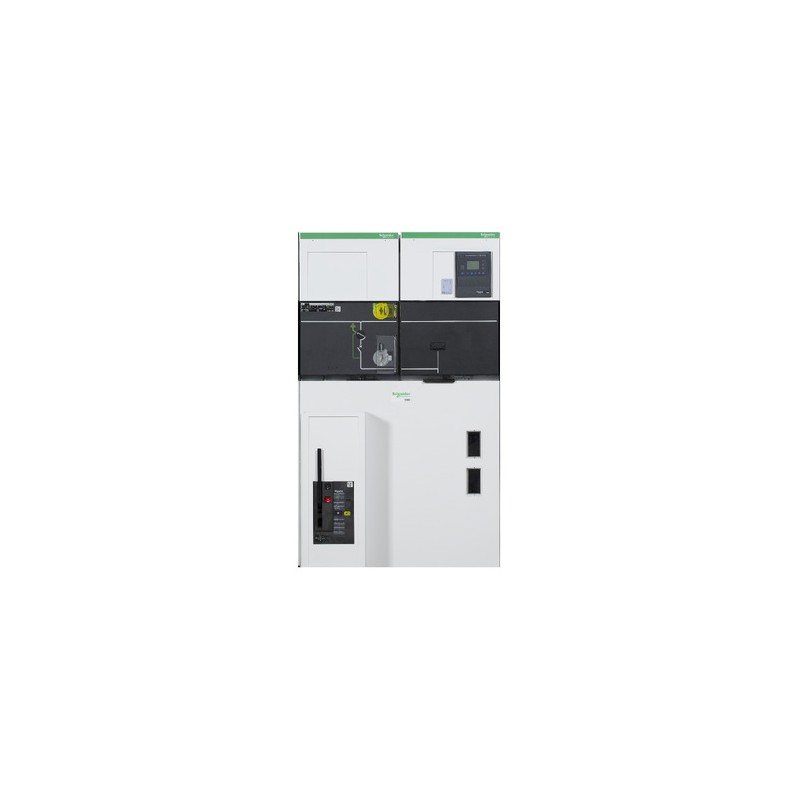

Schneider SM62DMTTS2X600A000 SM6-36 DM1A-T Air Insulated Modular Switchgears
| Product line | SM6 |
|---|---|
| Technology Type | Air insulated switchgear SF1 |
| Product Group | DM1A line/toroid |
| Product or Component Type | Cell |
| Internal arc protection | 16 kA 1 s |
| network frequency | 50/60Hz |
| dielectric test voltage | 36 kV |
| [Icw] rated short-time withstand current | 170 kV peak |
| Rated continuous current (Ir) | 630 A |
| [Icw] rated short-time withstand current | 16 kA rms 1 sec |
| Standards | IEC 62271-200 IEC 62271-100:2012 |
| busbar nominal current | 630 A |
|---|---|
| operator type | CS Spring-loaded RI type on/off button breaker |
| type of key lock | Recessed lock |
| Protection Type | Cutter |
| CB name | SF1 type 1 |
| CB setup | Separable |
| Nominal switching sequence | A - 0.3 s - KA - 3 min - KA |
| CB operating position | From the left (B1) |
| Width | 1000mm |
| Depth | 1400mm |
| ambient air temperature for operation | -5…40 °C |
|---|---|
| Storage Environmental Conditions | -40…70 °C |
| IP protection degree | IP3x |
| vibration resistance | 0.5 gn horizontal 0.4 gn vertical |
| Working Height | <= 1000m |
