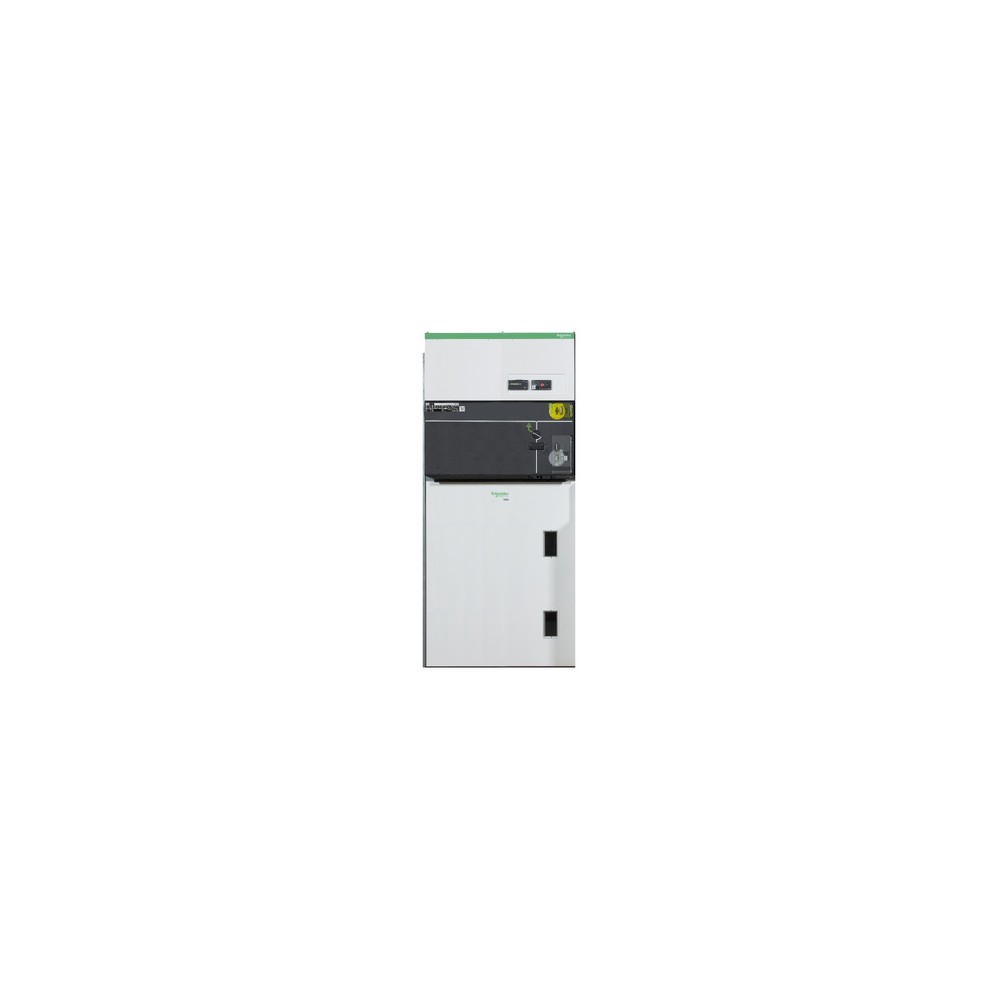

Schneider SM62IM1C0000000000 SM6-36 DM1A-T Air Insulated Modular Switchgears

Product line SM6
Technology Type Air insulated cell
Product Group I.M. 750
Product or Component Type Separation
Internal arch classification A-FL downward gas outlet
Internal arc protection 16 kA 1 s
network frequency 50/60Hz
dielectric test voltage 36 kV
[Icw] rated short-time withstand current 170 kV peak
Rated continuous current (Ir) 630 A
[Icw] rated short-time withstand current 16 kA rms 1 sec
Standards IEC 62271-200

Complement
busbar nominal current 630 A
type of key lock Recessed lock
device editing Thermal sensor TH110 (integrated)
height 2250mm
Width 750mm
Depth 1400mm

Environment
ambient air temperature for operation -5…40 °C
Storage Environmental Conditions -40…70 °C
IP protection degree IP3x
vibration resistance 0.5 gn horizontal class 2
0.4 gn vertical class 2
Working Height <= 1000m
