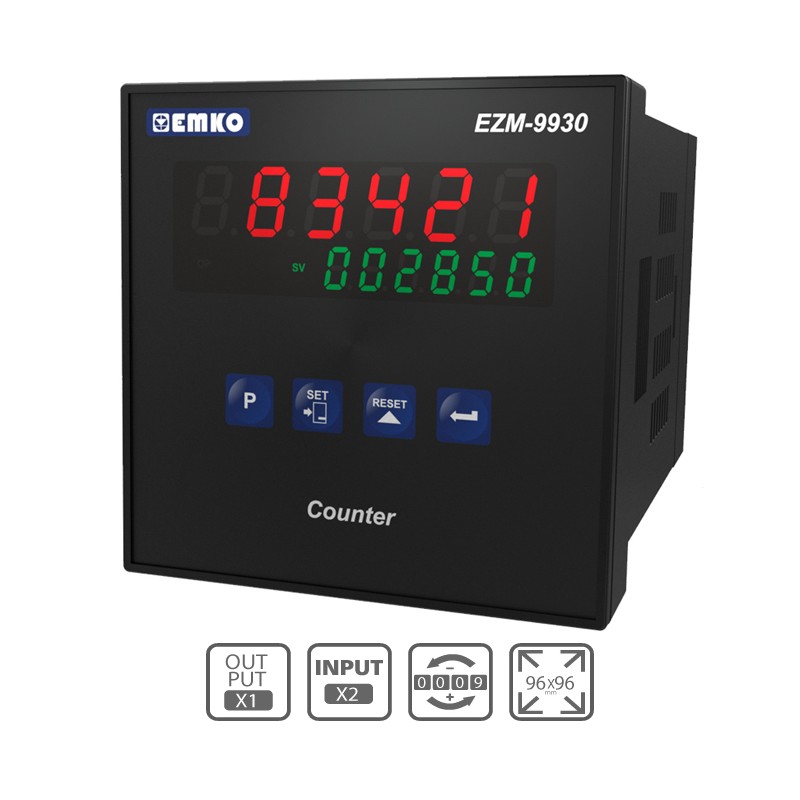

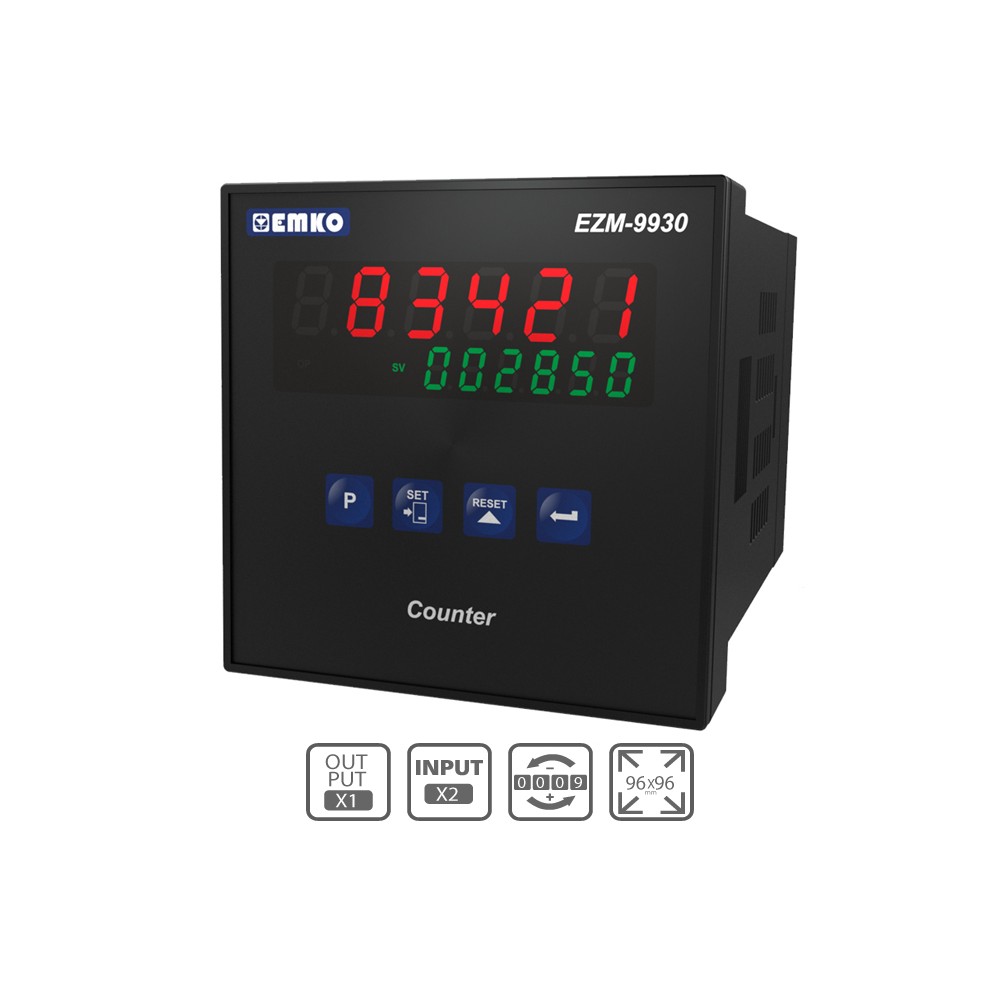

EZM-9930 Single Set Programmable Counter
New product
EZM-9930
Single Set Programmable Counter
EZM-XX30 Series Programmable Counter can be used in package machines, production and quality control rollers, in cutting and processing machine of glass, plastic, marble, sheet, iron, fabric all measuring and controlling of dimension, productivity, and can be adapted easily to all mechanical construction and automation system. Application fields; Package machines, Quality Control rollers, Filling Systems, Measuring Dimension and Control Automation, Cutting and Processing machine of glass, plastic, marble, sheet, iron and fabric, Production bands, Tool Benchs.
| Display and Front Panel | |
| Buttons | Set, Reset, direction and enter buttons |
| Led Indicators | SV (Set value), Op (Control output) LEDs |
| Actual Value Display | 13,2 mm Red 6 digits LED display |
| Set Display | 8 mm Green 6 digits LED display |
| Body | |
| Physical Features | 96 mm x 96 mm 87,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.34 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 230 V ~ (-15%, +10%) 50/60 Hz. 2.3 VA 115 V ~(-15%, +10%) 50/60 Hz. 2.3 VA 24 V ~ (-15%, +10%) 50/60 Hz. 2.3 VA |
| Digital Inputs |
Rated Voltage 16Vdc@5mA Maximum continous permissable voltage 30 Vdc Logic 1 minimum level 3 Vdc Logic 0 maximum level 2 Vdc |
| Sensor Supply Voltage | 14 V ± 35% maximum 50 mA (230 V) |
| 12 V ± 40% maximum 50 mA (115 V, 24 V) | |
| Maximum Input Frequency | 20000 Hz for P.input = 0, 1, 2, 3, 4 |
| 12000 Hz for P.input = 5, 6 | |
| 10000 Hz for P.input = 7 | |
| Outputs | |
| Relay Output | 5A@250 V~ at resistive load |
| Quality Standarts | |
| Approvals | GOST-R, CE |
