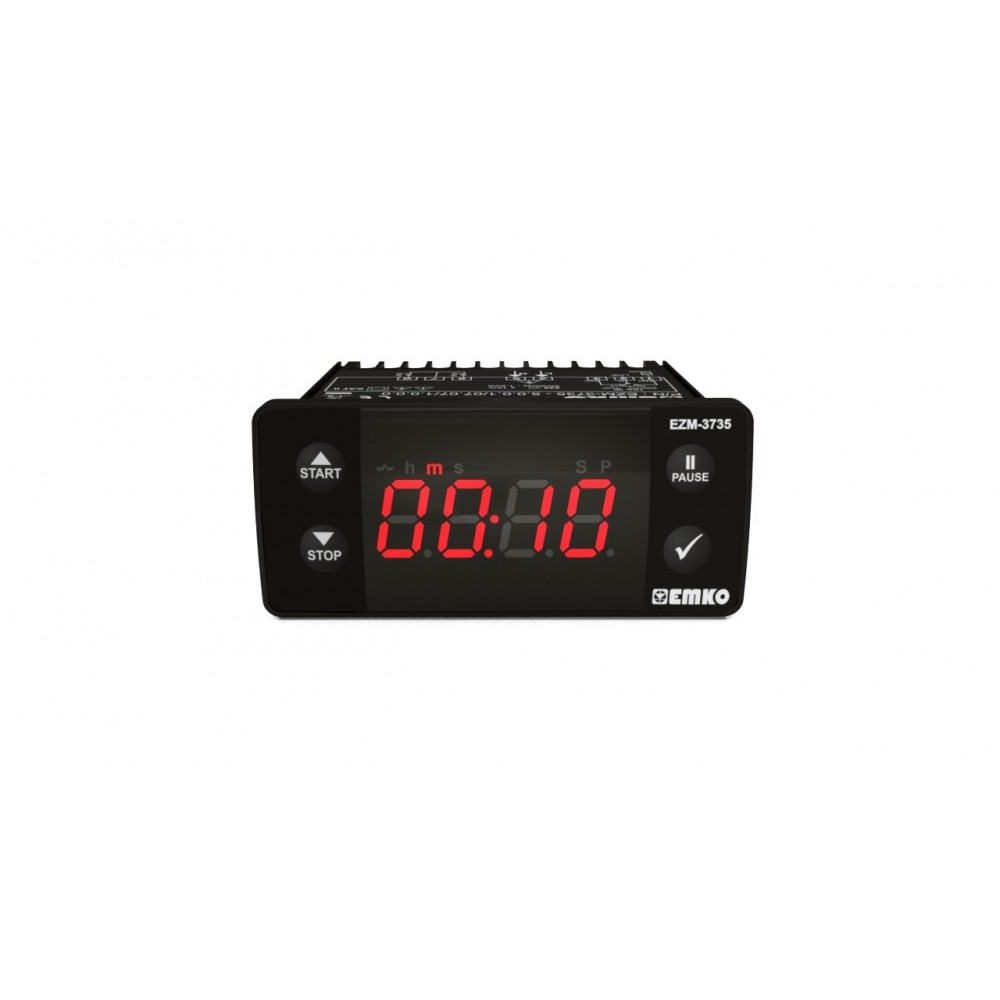

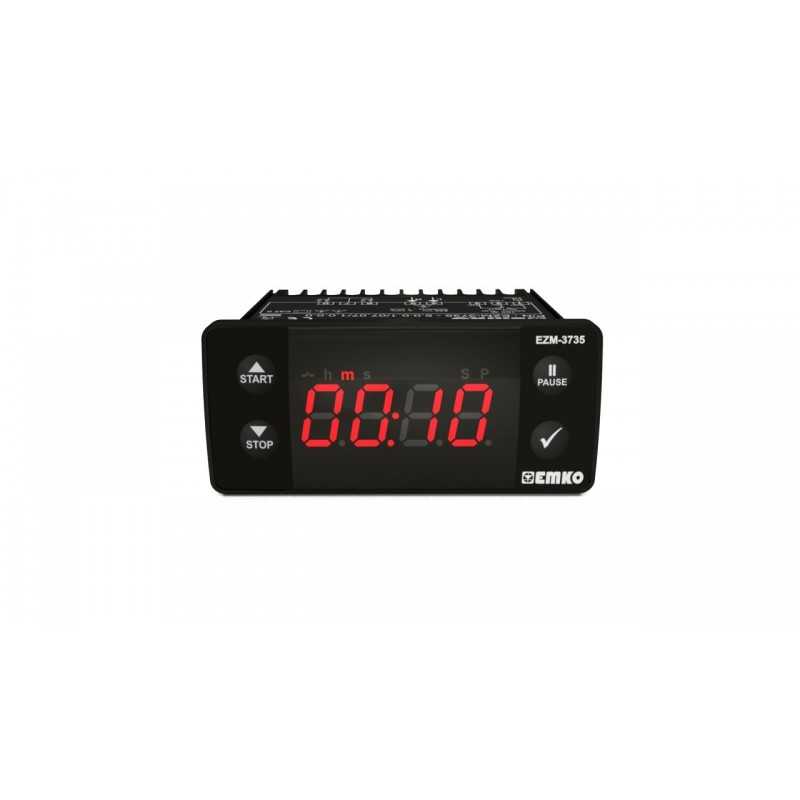

EZM-3735
Single SET Programmable Timer
4 Digits Display - Operation with One Set value - Single Contact Output for Timing control ( ) - External Start Input - Start and Stop Possibility by front Panel - Set value high limit boundaries - Display can be adjusted to show Second, Minute and Hour - Programmable Time Bases (Second, Minute, Hour) - Adjustable internal buzzer according to Timer Stop status. - Password protection for programming section - Having CE mark according to European Norms
Housing&Mounting : 76mm x 34.5mm x 71mm plastic housing for panel, Mounting. Panel cut-out is 71x29mm.
Protection Class : NEMA 4X (Ip65 at front, Ip20 at rear).
Weight : Approximately 0.20 Kg.
Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.
Storage / Operating Temperature : -40 C to +80 C / -30 C to +80 C
Storage / Operating Humidity : 90 % max. (None condensing)
Installation : Fixed installation
Overvoltage Category : II.
Pollution Degree : II, office or workplace, none conductive pollution
Operating Conditions : Continuous
Supply Voltage and Power :: 115
Time Accuracy : within
Digital Input : Mechanical contact
Control Form : ON / OFF
Relay Output : 16(8) A@250 V V for Resistive load (Output Relay)
(Electrical life : 100.000 switching at full load)
Display : 14 mm Red 4 digits LED Display
LED : S (Green), P (Green), h (Red), m(Red),s (Red), Output (Red)
Internal Buzzer : ³83dB
Approvals : GOST-R,
