EZM-9950 Multifunctional Programmable Timer and Counter with RS 232/485 Serial Communication Unit
New product

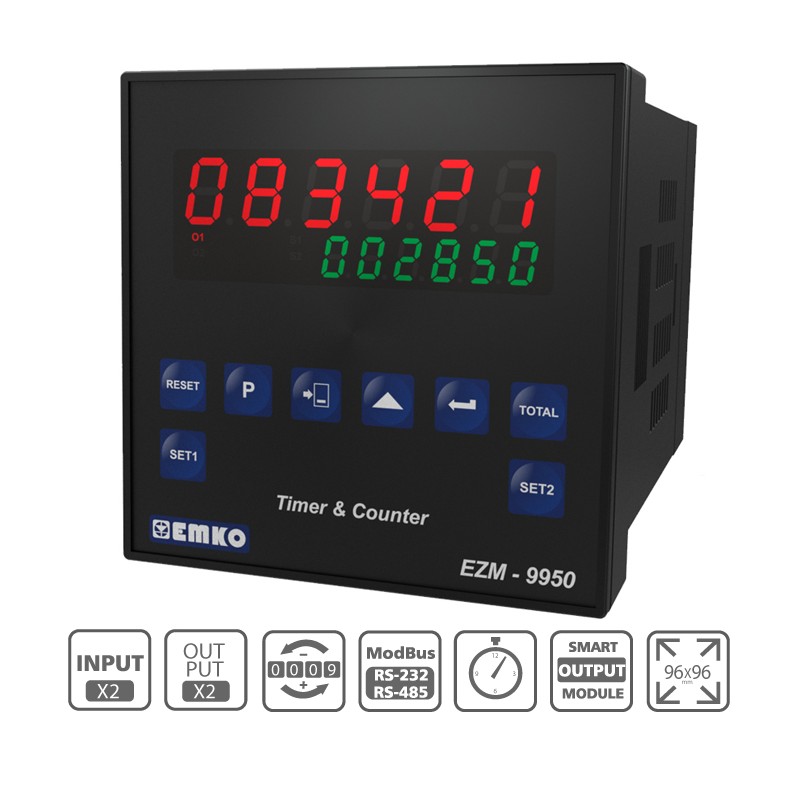

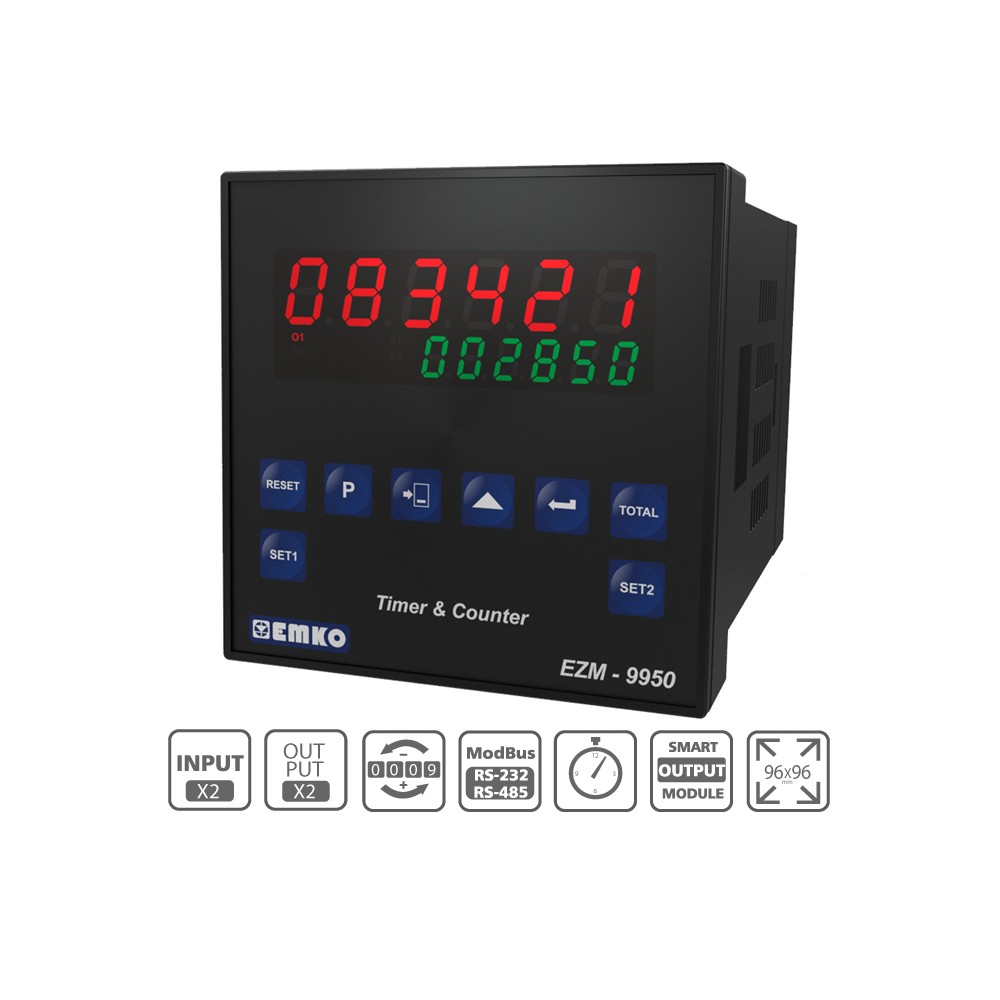

EZM-9950
Multifunctional Programmable Timer and Counter with RS 232/485 Serial Communication Unit
EZM-XX50 Series Programmable Timer & Counter can be used in package machines, production and quality control rollers, in cutting and processing machine of glass, plastic, marble, sheet, iron, fabric all measuring and controlling of dimension, count, total count, speed, cycle, time, productivity, and can be adapted easily to all mechanical construction and automation system
| Display and Front Panel | |
| Buttons | Set1, Set2, Total, P, Reset, direction and enter buttons |
| Led Indicators | S1 (Set1 value), S2 (Set2 value), Q1, O2 (Control or Alarm output) LEDs |
| Actual Value Display | 14 mm Red 6 digits LED display |
| Set Display | 6 mm Green 6 digits LED display |
| Body | |
| Physical Features | 96 mm x 96 mm 87,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.34 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 100-240 V ~ (-15%,+10%) 50/60 Hz. 6 VA 24 V ~ (-15%,+10%) 50/60 Hz. 6 VA 24 Vdc (-15%,+10%) 6 W |
| Digital Inputs |
Rated Voltage 16Vdc@5mA Maximum continous permissable voltage 30 Vdc Logic 1 minimum level 3 Vdc Logic 0 maximum level 2 Vdc |
| Sensor Supply Voltage | 14 V ± 35% maximum 50 mA (230 V) |
| 12 V ± 40% maximum 50 mA (115 V) | |
| Maximum Input Frequency | For Counter, Total Counter and Batch Counter |
| 6000 Hz for Pro-01= 0, 1, 2 | |
| 4000 Hz for Pro-01= 3, 4 | |
| 3500 Hz for Pro-01= 5, 6 | |
| 2000 Hz for Pro-01= 7 | |
| For Frequencymeter and tachometer 10 kHz | |
| 30 Hz when Pro-04 does not equal to 000000 | |
| Outputs | |
| Optional Output Modules | EM0-900 Relay Output Module (3A@250V) |
| EM0-910 SSR Output Module (20mA@18V) | |
| EM0-920 Digital (Transistor) Output Module (40mA@18V) | |
| Standard Communication Modules | EMC-900 RS-232 Communication Module |
| Optional Communication Module | EMC-910 RS-485 Communication Module |
| Communication Protocol | MODBUS-ASCII or RTU |
| Quality Standarts | |
| Approvals | UL Recognized Component (File No : E 254103), GOST-R, CE |
