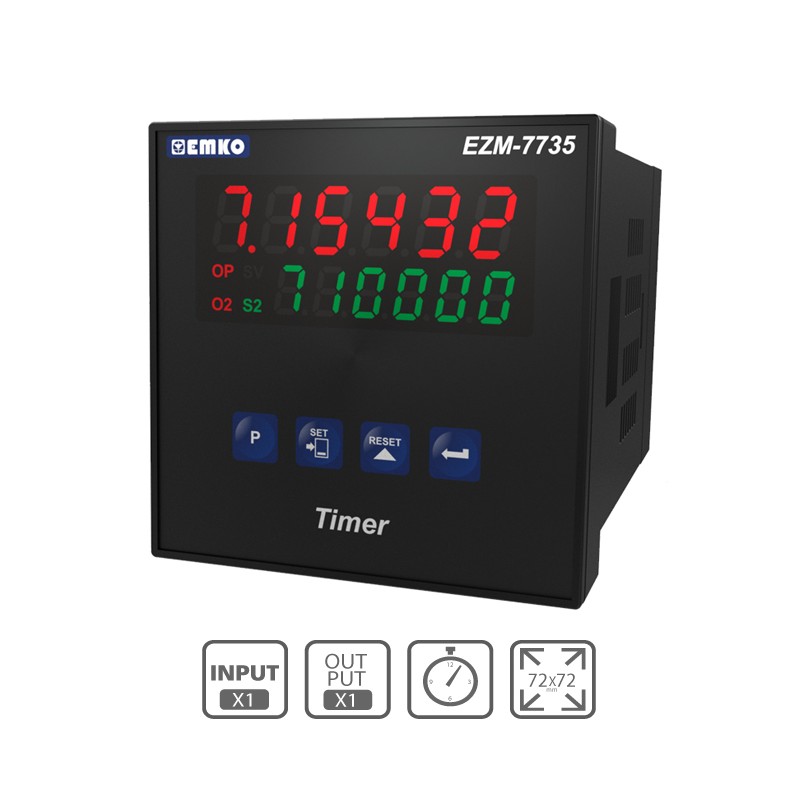

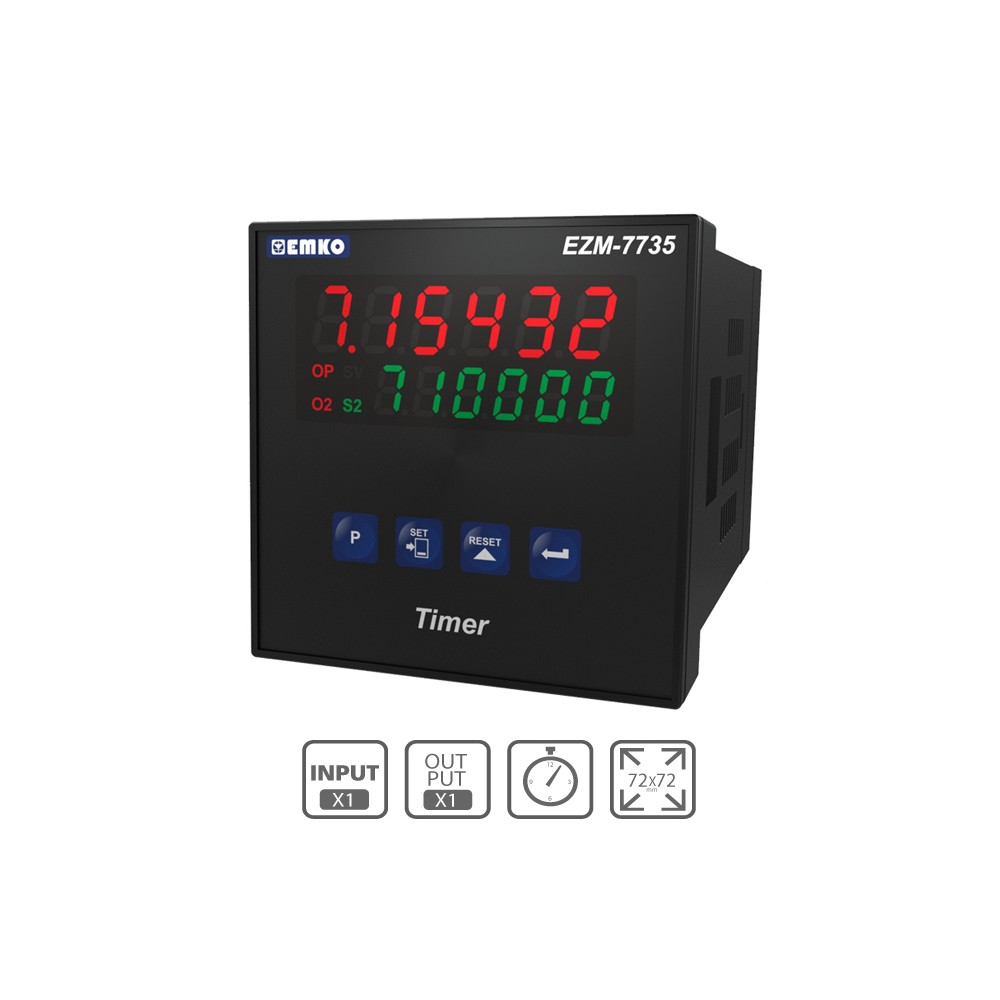

EZM-7735
Single Set Programmable Timer
EZM-XX35 Series Programmable Timers can be used in package machines, production and quality control rollers, and can be adapted easily to all mechanical construction and automation system. Application fields; Package machines, Quality Control rollers, Filling Systems, Building Automation. Production bands, Tool Benchs.
| Display and Front Panel | |
| Buttons | Set, Reset, P, direction and enter buttons |
| Led Indicators | SV (Set value), OP (Control output) LEDs |
| Actual Value Display | 10,8 mm Red 6 digits LED display |
| Set Display | 8 mm Green 6 digits LED display |
| Body | |
| Physical Features | 72 mm x 72 mm 87,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.25 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 230 V ~ (-15%,+10%) 50/60 Hz. 2.3 VA 115 V ~ (-15%,+10%) 50/60 Hz. 2.3 VA 24 V ~ (-15%,+10%) 2.3 VA |
| Digital Inputs |
Rated Voltage 16Vdc@5mA Maximum continous permissable voltage 30 Vdc Logic 1 minimum level 3 Vdc Logic 0 maximum level 2 Vdc |
| Sensor Supply Voltage | 14 V ± 35% maximum 50 mA (230 V) |
| 12 V ± 40% maximum 50 mA (115 Vac, 24 Vac) | |
| Outputs | |
| Relay Output | 5A@250V |
| Quality Standarts | |
| Approvals | GOST-R, CE |
