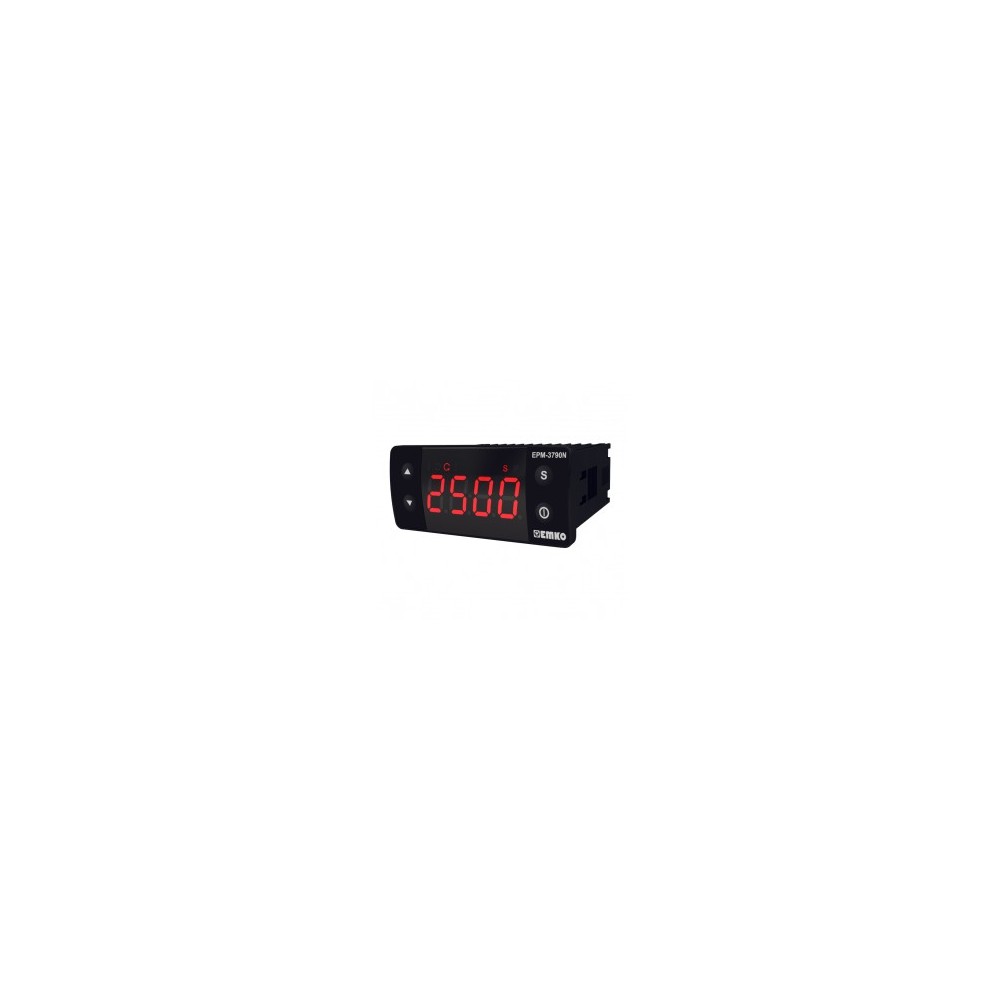

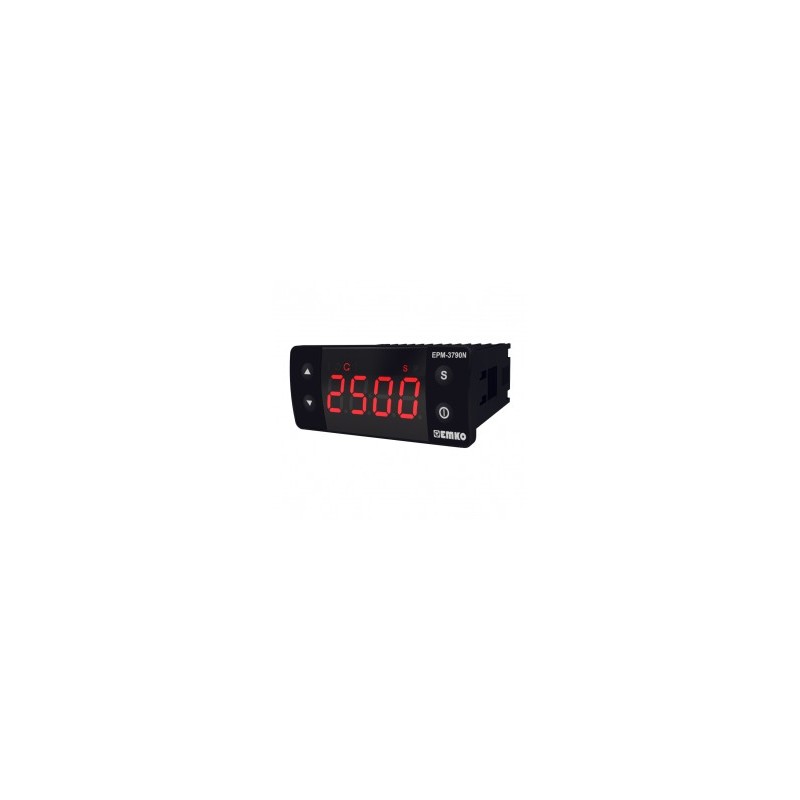

EPM-3790-N Digital Potentiometer ( 77 X 35mm)
New product
EPM-3790-N
Digital Potentiometer ( 77 X 35mm)
Digital Potentiometer Control Panel For V/F Speed Controller are designed for controlling the speed and direction of the motor as a control panel for V/F Speed Controllers in industry. They can be used in many applications with their easy use and operation with their ramp properties.
| Display and Front Panel | |
| Buttons | SetP, direction and enter buttons |
| Led Indicators | SET (Green), OUT (Red), PROG (Red) 3 mm |
| Display | 10 mm Red 4 digits LED display |
| Body | |
| Physical Features | 77 mm x 35 mm 62,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.09 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 100...240V ~ (+%15) 50/60 Hz. 1.5 VA 24 Vac/dc ~ (+%15, +%10) 50/60 Hz. 1.5 VA |
| Error Inputs | Max. 3mA @ 30Vdc |
| Scale | Configurable between -1999 and 9999 |
| Outputs | |
| Analogue Output | 0/2...10Vdc Voltage Output (Max. 10mA) or 0/4...20mAdc Current Output |
| Control | |
| Forward Output | Max. 5mA @ 30Vdc |
| Forward Output | Max. 5mA @ 30Vdc |
| Quality Standarts | |
| Approvals | CE , EAC |
