VAH 115R/NWGLBE-88037760
New product

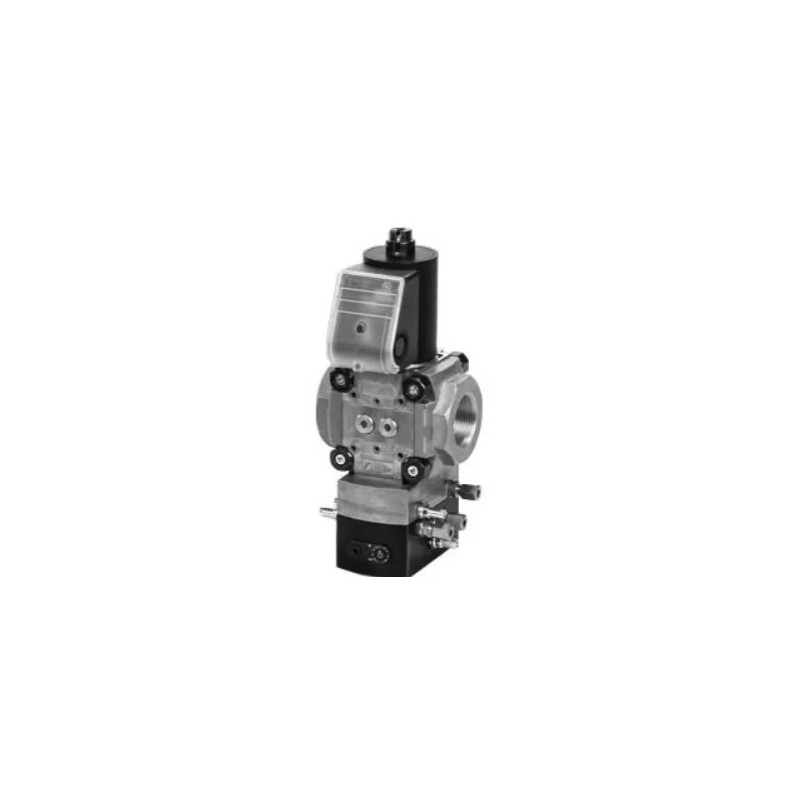

Kromschröder VAH 115R/NWGLBE-88037760 / Flow Rate Regulator Solenoid Valve
Type: Flow rate regulator with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65
Size: 1
Certification: EU certified
Inlet: DN 15 (1/2'')
Outlet: DN 15 (1/2'')
Pipe connection: Rp internal thread
Opening properties: Quick opening, quick closing
Mains voltage: 230 V~, 50/60 Hz
Feedback: Position indicator for 24 V and visual indicator: left side
Electrical connection: Plug with socket
Attached to the left side of the connection box: Plug for valve (3-pin)
Attached to the right side of the connection box: Plug for position indicator (4-pin)
Valve seat: Reduced
Connection kit for air control pressure psa: 1 compression fitting, 2 pressure test points pd and psa
Accessories, right: 2 screw plugs
Accessories, left: 2 screw plugs
