VAH 120R/NWSRAE-88031366

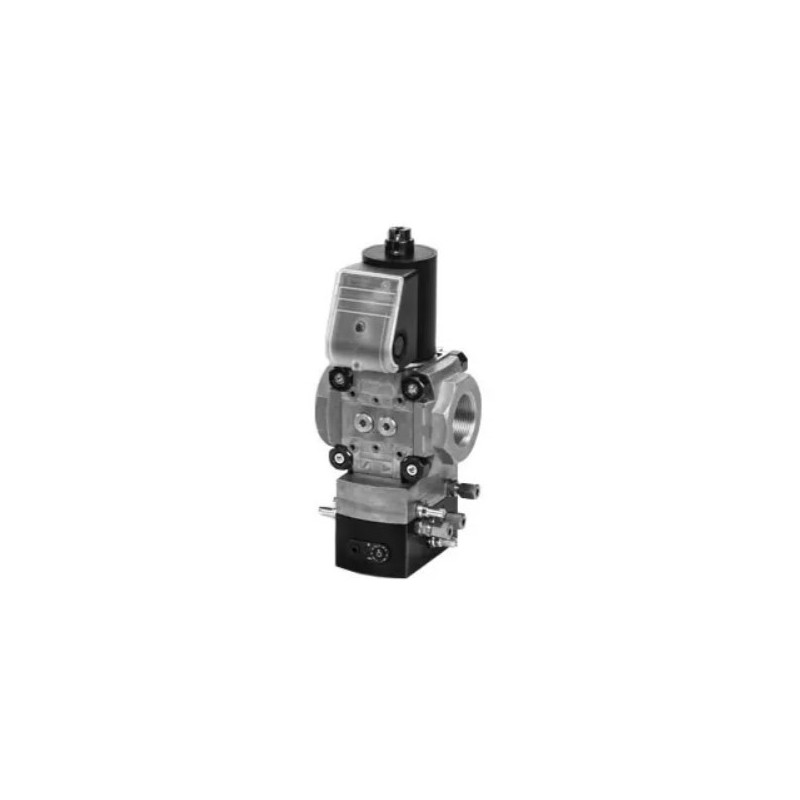

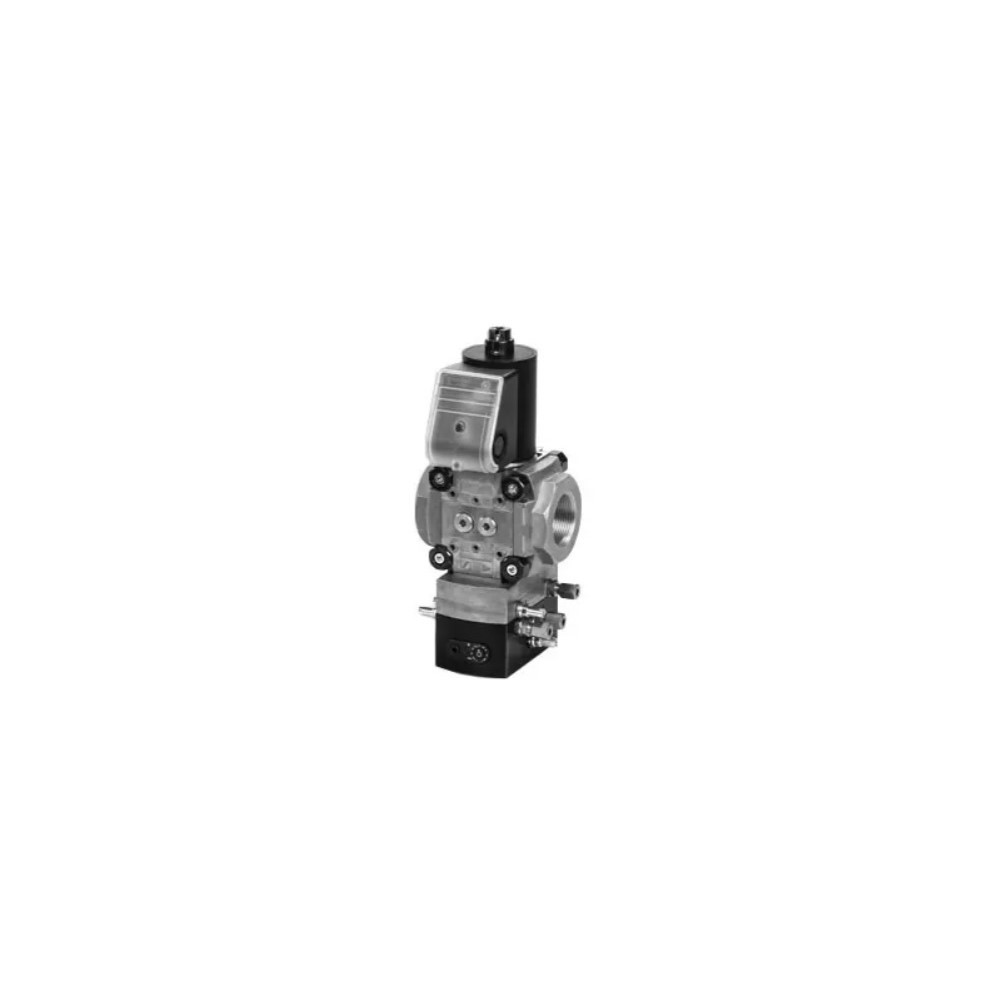

Kromschröder VAH 120R/NWSRAE-88031366 / Flow Rate Regulator Solenoid Valve

Type: Flow rate regulator with solenoid valve

For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65

Size: 1

Certification: EU certified

Inlet: DN 20 (3/4'')

Outlet: DN 20 (3/4'')

Pipe connection: Rp internal thread

Opening properties: Quick opening, quick closing

Mains voltage: 230 V~, 50/60 Hz

Feedback: Position indicator and visual indicator: right side

Electrical connection: M20 cable gland

Valve seat: Normal

Connection kit for air control pressure psa: 1 compression fitting, 2 pressure test points pd and psa

Accessories, right: 2 screw plugs

Accessories, left: 2 screw plugs
