VAH 125R/NWAE-88035385
New product

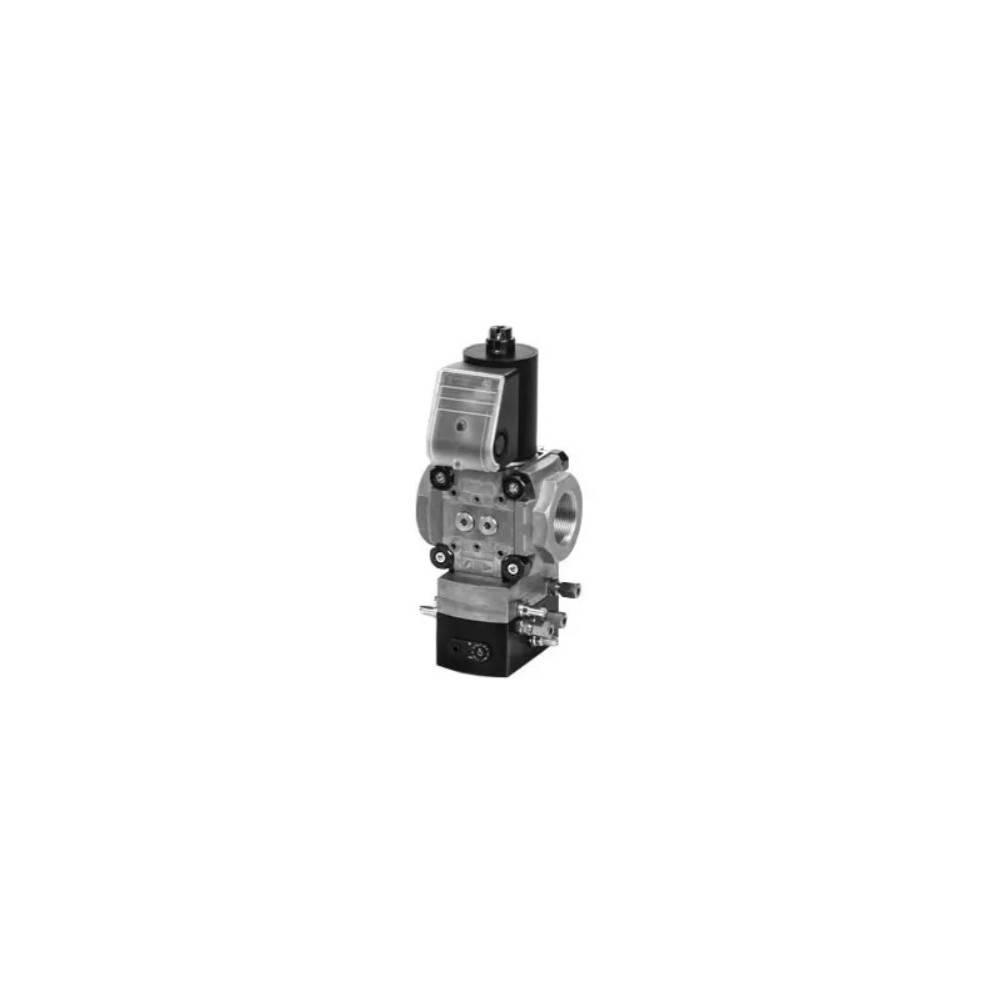

Kromschröder VAH 125R/NWAE-88035385 / Flow Rate Regulator Solenoid Valve
Type: Flow rate regulator with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65
Size: 1
Certification: EU certified
Inlet: DN 25 (1'')
Outlet: DN 25 (1'')
Pipe connection: Rp internal thread
Opening properties: Quick opening, quick closing
Mains voltage: 230 V~, 50/60 Hz
Attached to the left side of the connection box: Knock-out hole to other valve
Valve seat: Normal
Connection kit for air control pressure psa: 1 compression fitting, 2 pressure test points pd and psa
Accessories, right: 2 pressure test points pu and pd
Accessories, left: 2 screw plugs
