VAH 2-/40R/NQAE-88035939
New product

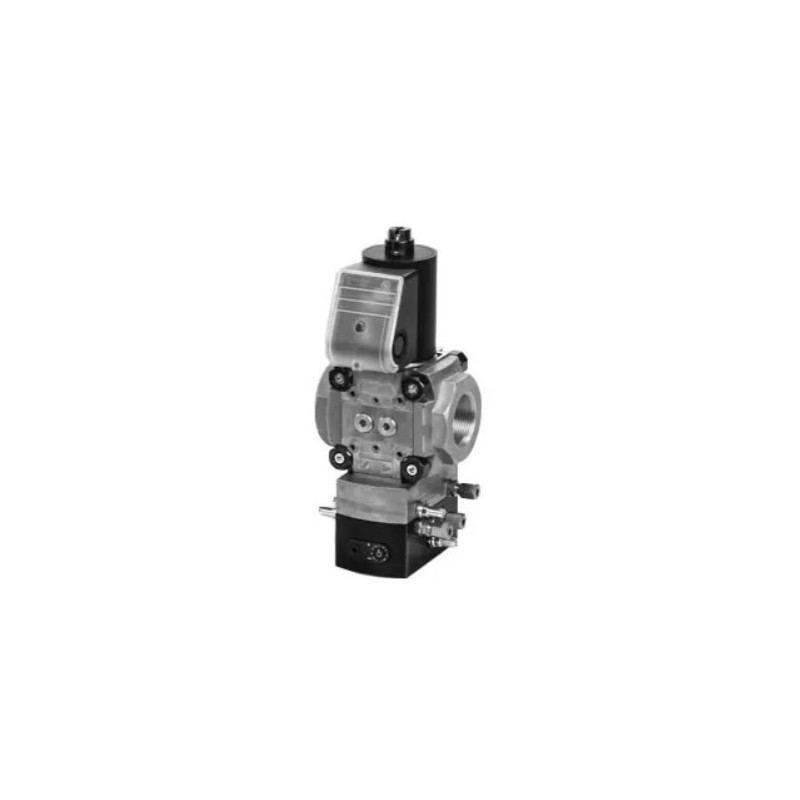

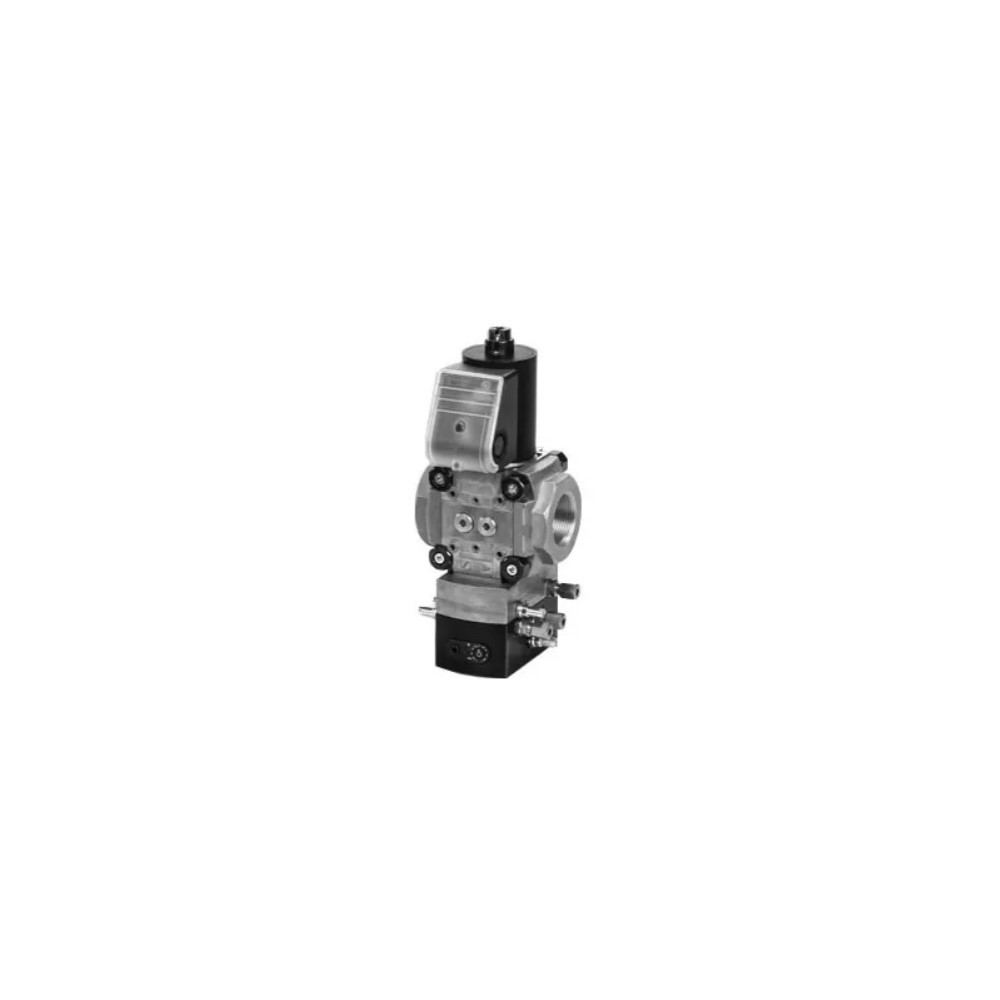

Kromschröder VAH 2-/40R/NQAE-88035939 / Flow Rate Regulator Solenoid Valve
Type: Flow rate regulator with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65
Size: 2
Certification: EU certified
Inlet: No inlet flange
Outlet: DN 40 (1 1/2'')
Pipe connection: Rp internal thread
Opening properties: Quick opening, quick closing
Mains voltage: 120 V~, 50/60 Hz
Electrical connection: Plug with socket
Attached to the right side of the connection box: Plug for valve (3-pin)
Valve seat: Normal
Connection kit for air control pressure psa: 1 compression fitting, 2 pressure test points pd and psa
Accessories, right: 2 pressure test points pu and pd
Accessories, left: 2 screw plugs
