VAH 240F/NWAE-88020906

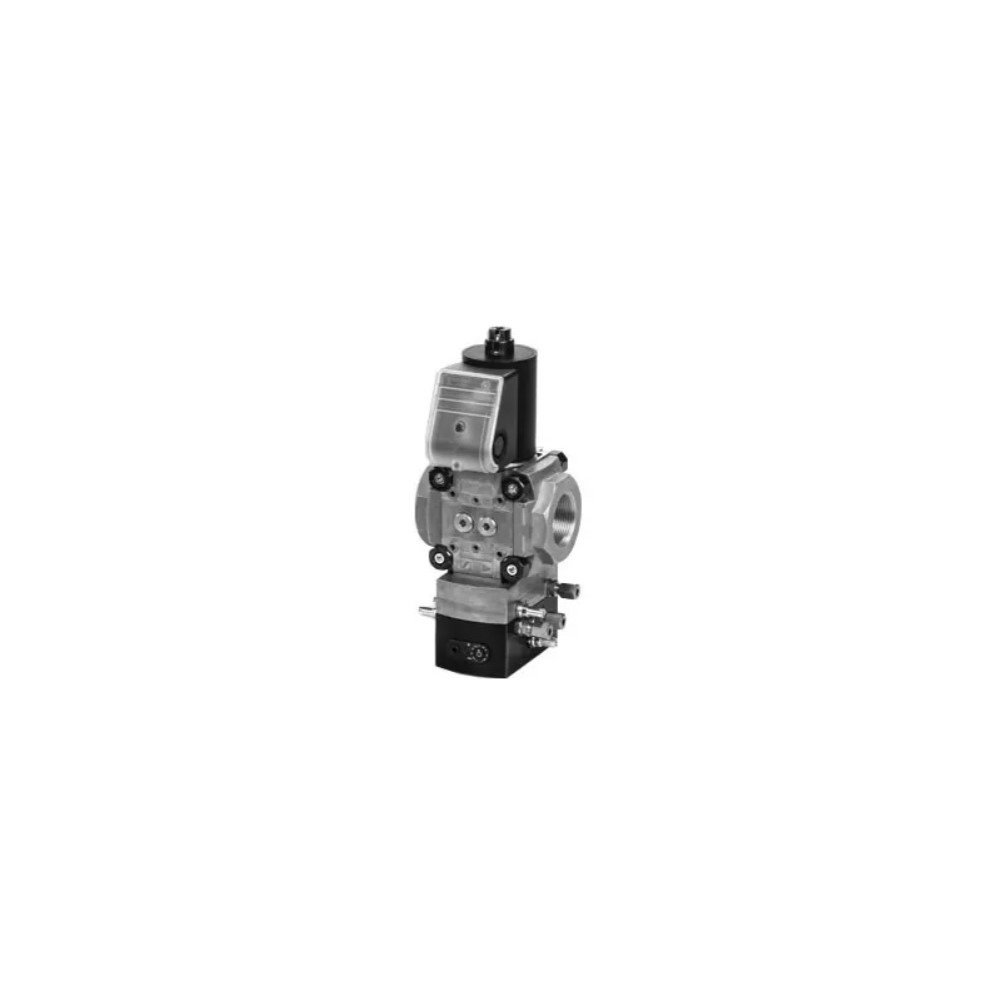

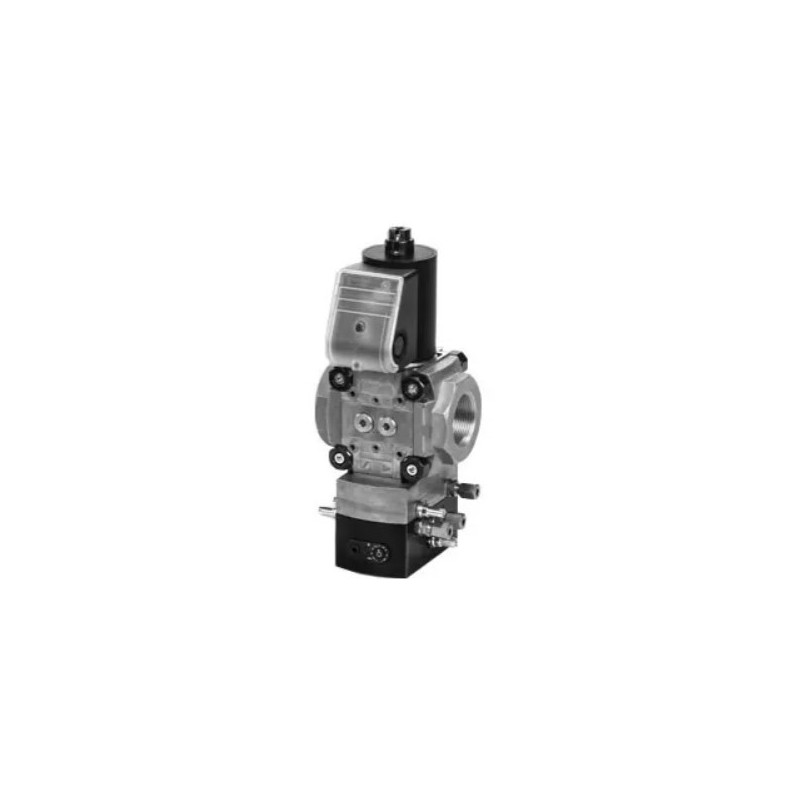

Kromschröder VAH 240F/NWAE-88020906 / Flow Rate Regulator Solenoid Valve

Type: Flow rate regulator with solenoid valve

For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65

Size: 2

Certification: EU certified

Inlet: DN 40 (1 1/2'')

Outlet: DN 40 (1 1/2'')

Pipe connection: Flange to ISO 7005

Opening properties: Quick opening, quick closing

Mains voltage: 230 V~, 50/60 Hz

Electrical connection: M20 cable gland

Valve seat: Normal

Connection kit for air control pressure psa: 1 compression fitting, 2 pressure test points pd and psa

Accessories, right: 2 screw plugs

Accessories, left: 2 screw plugs
