VAH 2E40F/50R05FHEVWR/PP/PP-88102494

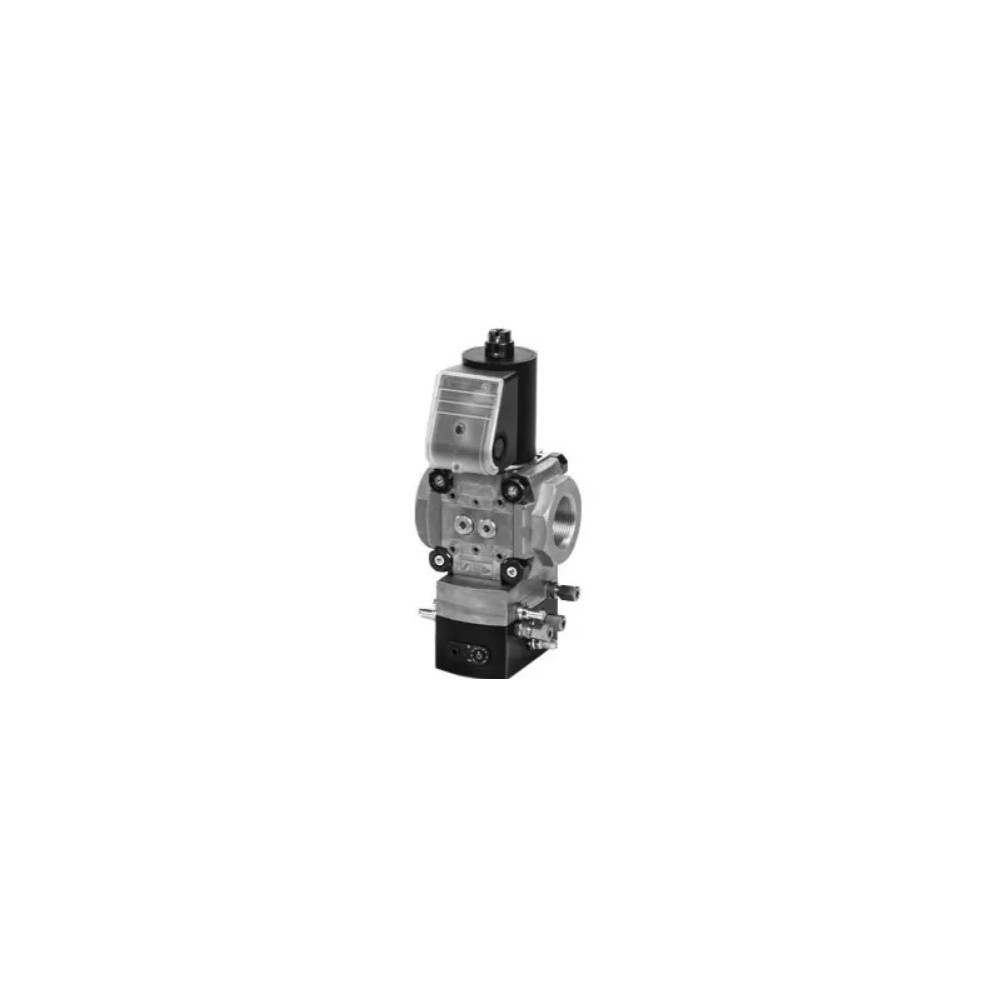

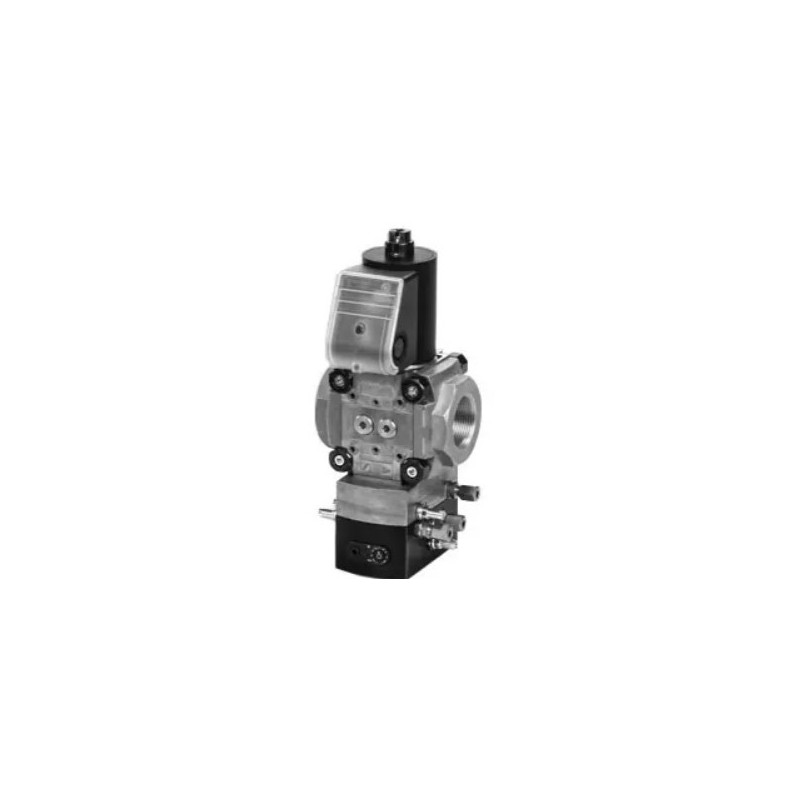

Kromschröder VAH 2E40F/50R05FHEVWR/PP/PP-88102494 / Flow Rate Regulator Solenoid Valve

Type: Flow rate regulator with solenoid valve

For gas, air and biologically produced methane, with pilot lamp, IP 65, completely assembled and checked for tightness

Size: 2

Certification: EU certified

Inlet: DN 40 (1 1/2'')

Inlet pipe connection: Flange to ISO 7005

Outlet: DN 50 (2'')

Outlet pipe connection: Rp internal thread

Inlet pressure: pu max. 500 mbar (7 psig)

Module 0: Filter module

Module 1: 1st valve with flow rate regulator, connection for air control pressure: compression fitting

Module 3: Fine-adjusting valve

Mains voltage: 230 V~, 50/60 Hz

Flow: From left to right

Electrical connection of 1nd valve: M20 cable gland

Connection material: Enclosed

1st valve accessories on viewing side: 2 screw plugs

1st valve accessories on rear side: 2 screw plugs
