VAH 3-/50R/NWAE-88021065

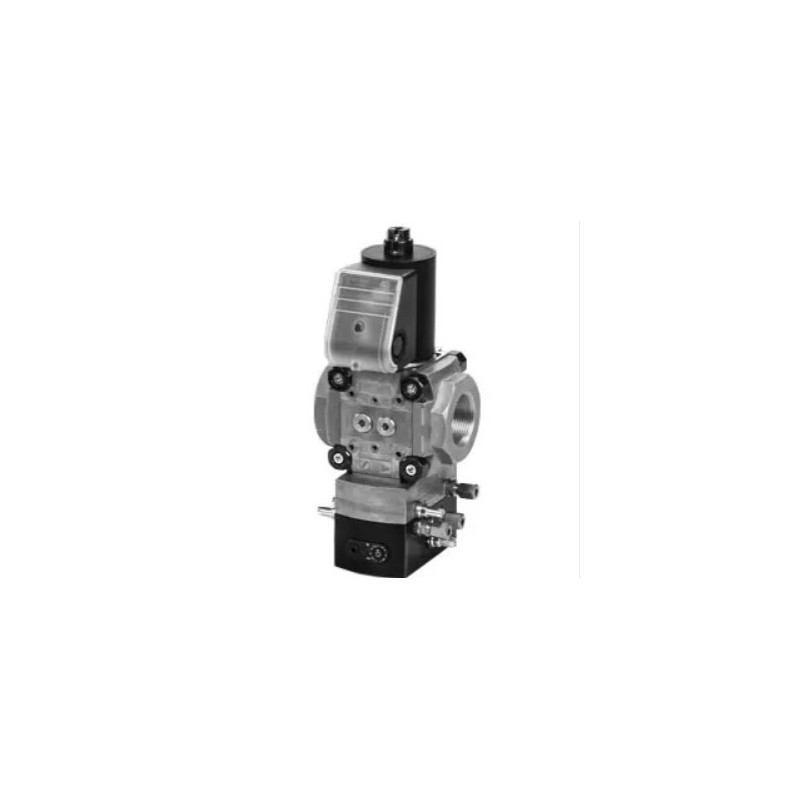

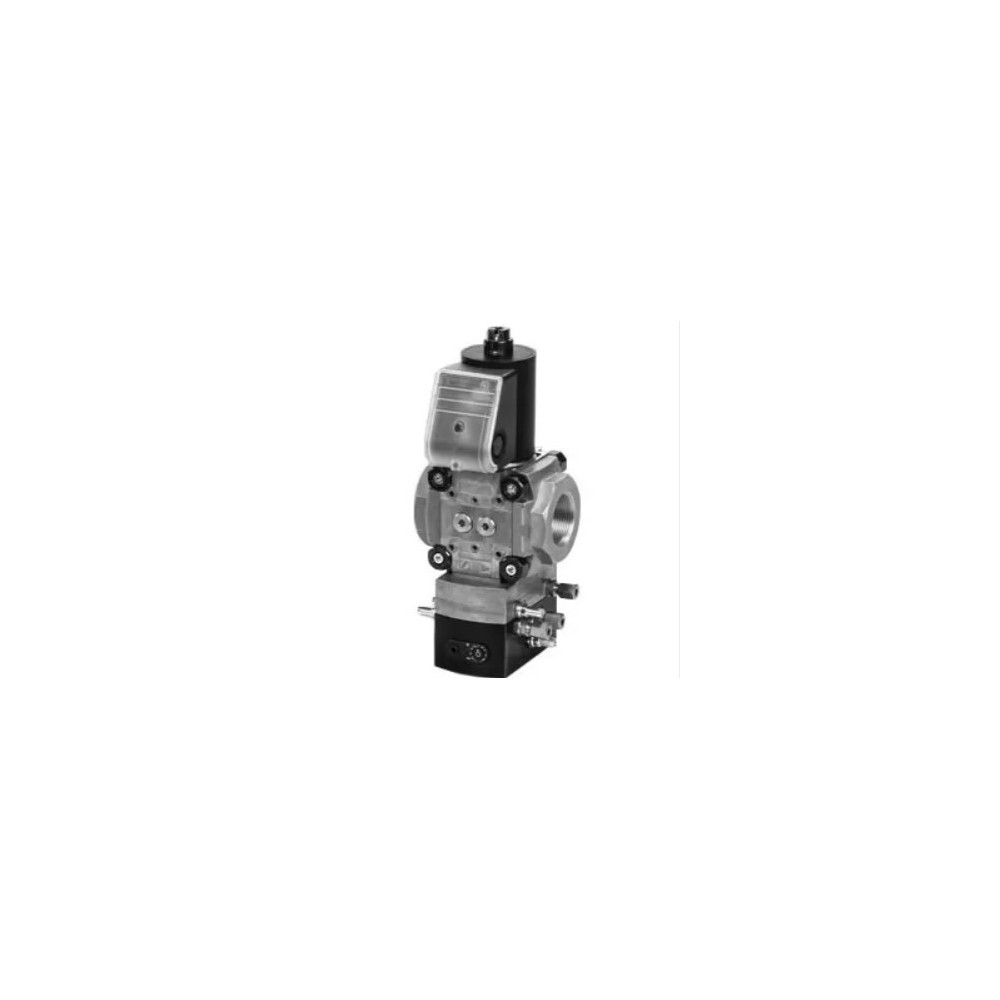

Kromschröder VAH 3-/50R/NWAE-88021065 / Flow Rate Regulator Solenoid Valve

Type: Flow rate regulator with solenoid valve

For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65

Size: 3

Certification: EU certified

Inlet: No inlet flange

Outlet: DN 50 (2'')

Pipe connection: Rp internal thread

Opening properties: Quick opening, quick closing

Mains voltage: 230 V~, 50/60 Hz

Electrical connection: Plug with socket

Attached to the left side of the connection box: Plug for valve (3-pin)

Valve seat: Normal

Connection kit for air control pressure psa: 1 compression fitting, 2 pressure test points pd and psa

Accessories, right: 2 screw plugs

Accessories, left: 2 screw plugs
