VAN 120R/NKGL-88031217

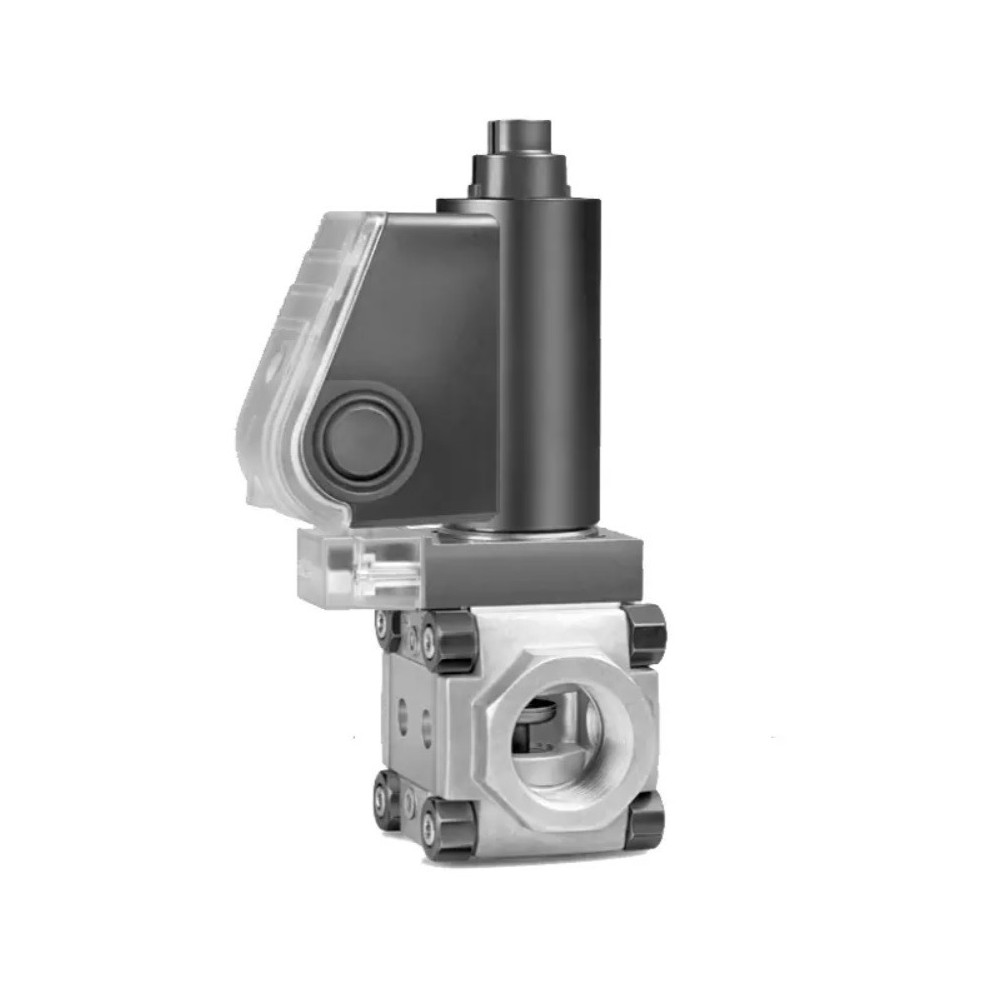

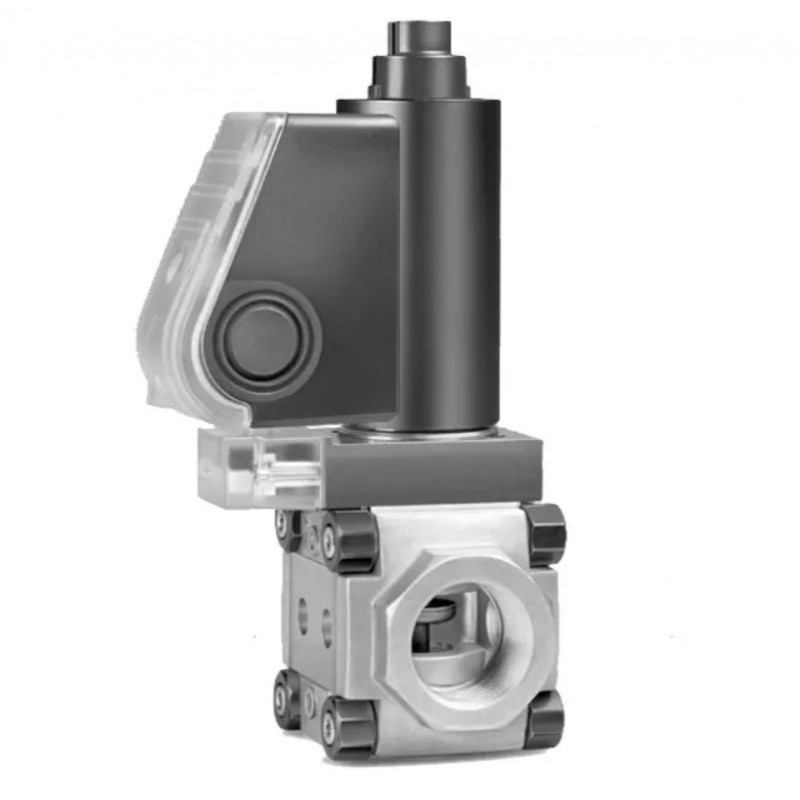

Kromschröder VAN 120R/NKGL-88031217 / Magnetic Relief Valve

Type: Magnetic relief valve, open when de-energized pu max. 500 mbar (7 psig), with pilot lamp, IP 65

Size: 1

Certification: EU certified

Inlet: DN 20 (3/4'')

Outlet: DN 20 (3/4'')

Pipe connection: Rp internal thread

Opening properties: Quick opening, quick closing

Mains voltage: 24 V=

Feedback: Proof of closure switch for 24 V and visual position indicator, left side

Electrical connection: Plug with socket

Attached to the left side of the connection box: Plug for valve (3-pin)

Attached to the right side of the connection box: Plug for position indicator (4-pin)

Accessories, right: 2 screw plugs

Accessories, left: 2 screw plugs
