VAS 9125F05NAGRB/3-/PP-88207296

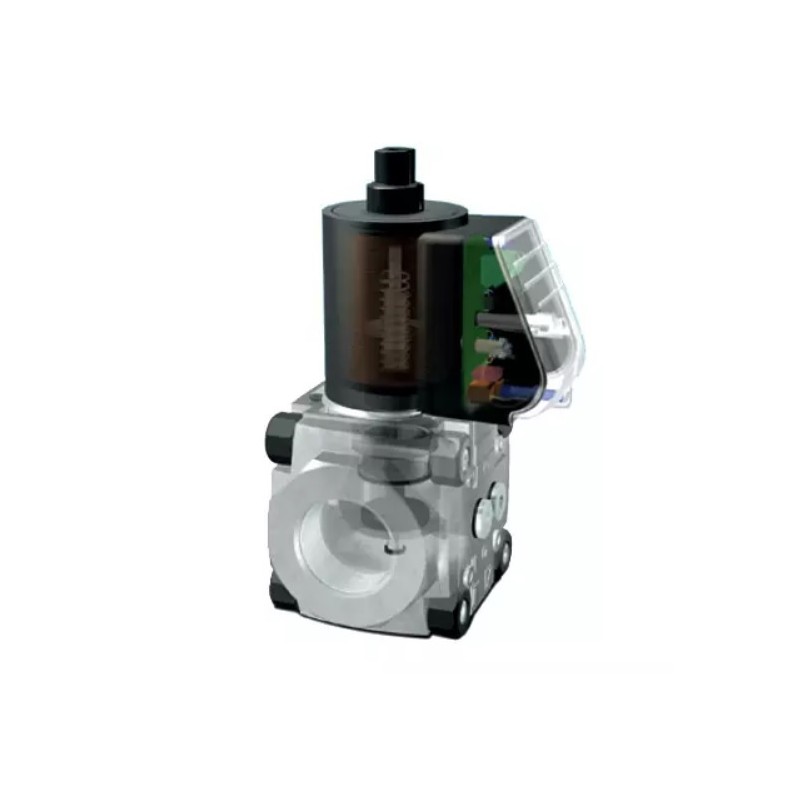

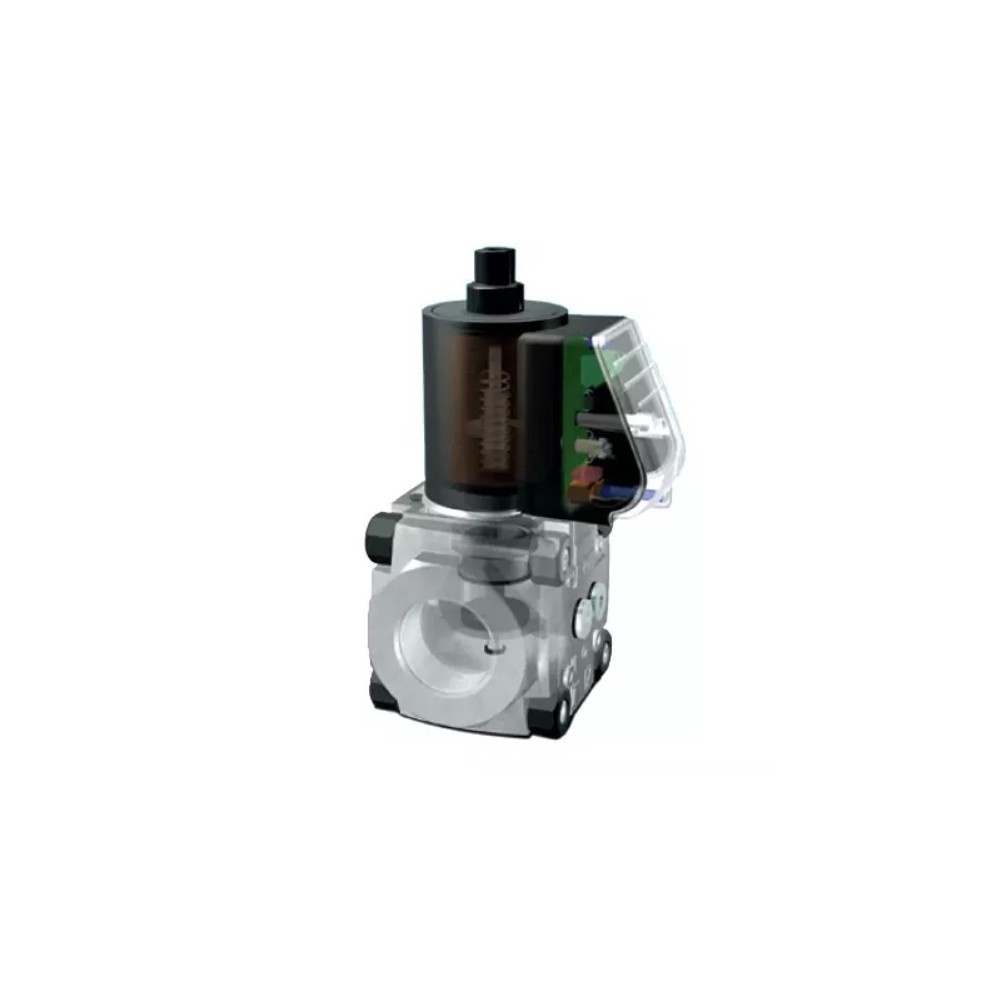

Kromschröder VAS 9125F05NAGRB/3-/PP-88207296 / Gas Solenoid Valves

Type: Gas solenoid valve

For automatic shut-off, closed when de-energized, for natural gas, LPG and air, Class A to EN 161, with blue pilot lamp, IP 65, FM approved, EU certified

Size: 9

Nominal diameter: DN 125

Pipe connection: Flange to ISO 7005

Inlet pressure: pu max. 500 mbar

Opening properties: Quick opening, quick closing

Mains voltage: 120-230 V~, 50/60 Hz

Feedback: Proof of closure switch for 24 V and visual position indicator

Viewing side: Right

Electrical connection: Plug with socket

Attached to the right side of the connection box: Plug for valve

Attached to the left side of the connection box: Plug for position indicator

Lateral machining: Basic

Accessories, right, inlet: Pressure switch DG 110VC

Accessories, right, outlet: None

Accessories, left, inlet: Screw plug

Accessories, left, outlet: Screw plug
