VAV 1-/15R/NWBK-88011353
New product

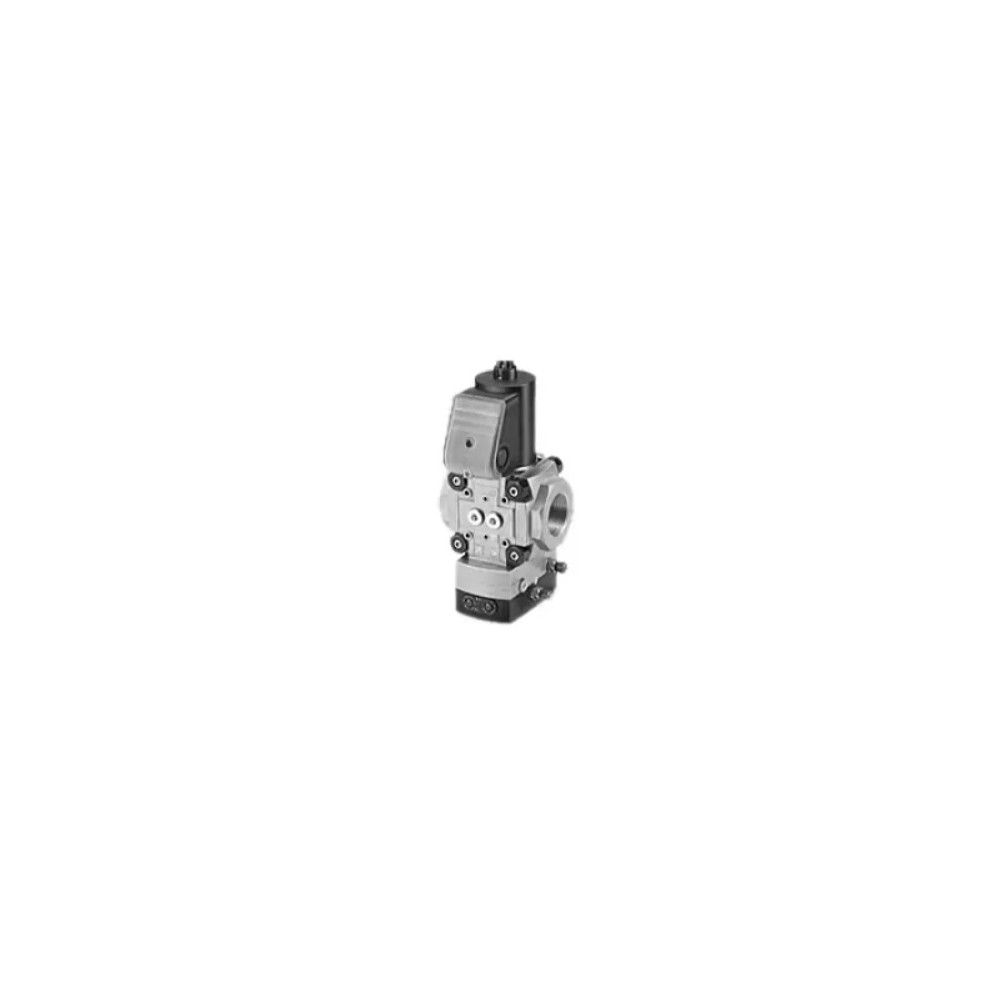

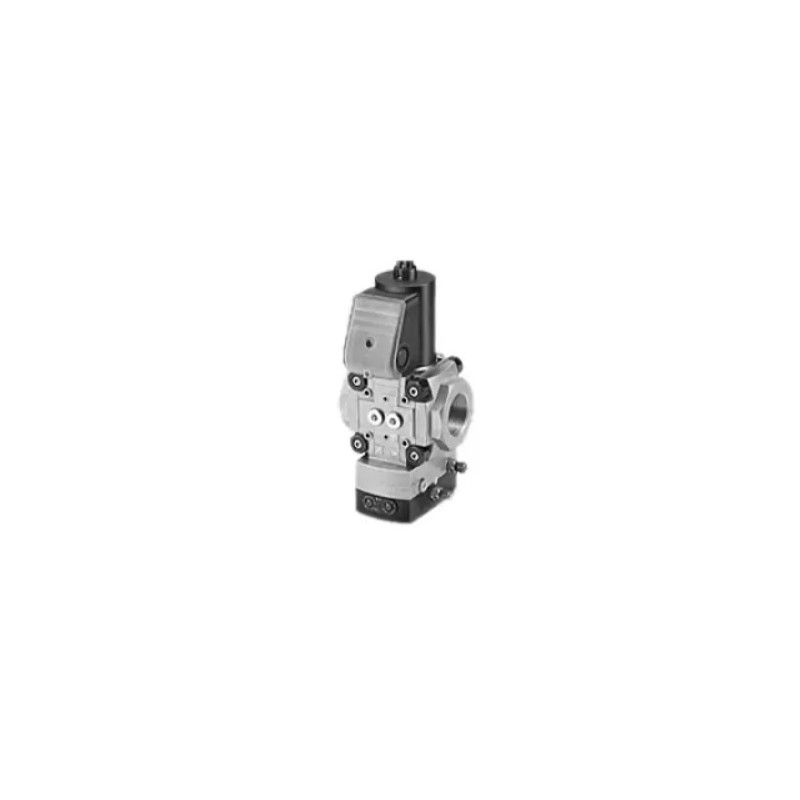

Kromschröder VAV 1-/15R/NWBK-88011353 / Variable Air/Gas Ratio Control With Solenoid Valve
Type: Variable air/gas ratio control with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65
Size: 1
Certification: EU certified
Inlet: No inlet flange
Outlet: DN 15 (1/2'')
Pipe connection: Rp internal thread
Opening properties: Quick opening, quick closing
Mains voltage: 230 V~, 50/60 Hz
Attached to the left side of the connection box: Knock-out hole to other valve
Valve seat: Reduced
Connection kit for psa and psc: 2 plastic hose couplings
Accessories, right: 2 pressure test points pu and pd
Accessories, left: 2 screw plugs
Nozzle diameter, air control pressure psa: 0.5 mm
Nozzle diameter, combustion chamber pressure psc: 0.5 mm
