VAV 125R/NQGRAK-88029768

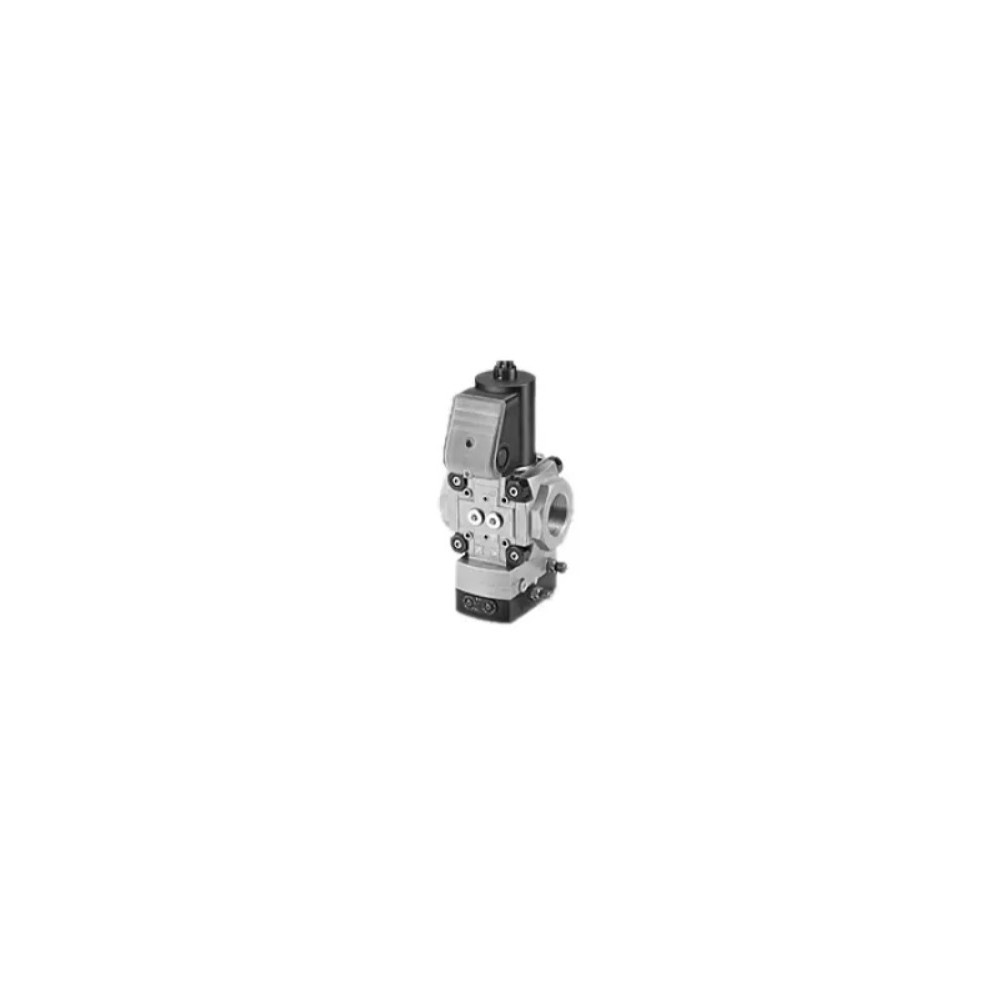

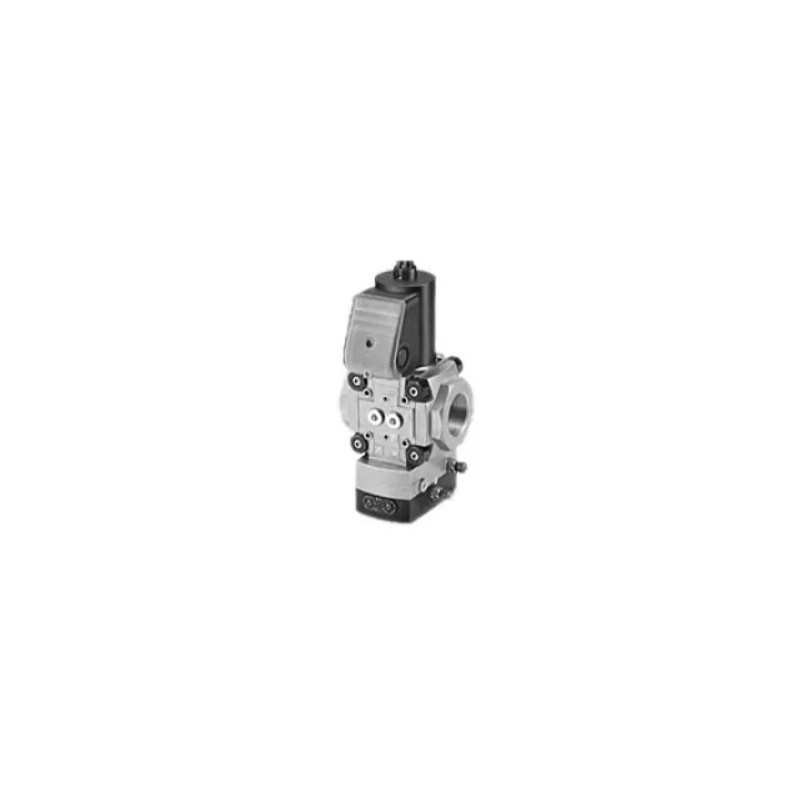

Kromschröder VAV 125R/NQGRAK-88029768 / Variable Air/Gas Ratio Control With Solenoid Valve

Type: Variable air/gas ratio control with solenoid valve

For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65

Size: 1

Certification: EU certified

Inlet: DN 25 (1'')

Outlet: DN 25 (1'')

Pipe connection: Rp internal thread

Opening properties: Quick opening, quick closing

Mains voltage: 120 V~, 50/60 Hz

Feedback: Position indicator for 24 V and visual indicator: right side

Electrical connection: M20 cable gland

Valve seat: Normal

Connection kit for psa and psc: 2 plastic hose couplings

Accessories, right: 2 screw plugs

Accessories, left: 2 screw plugs

Nozzle diameter, air control pressure psa: 0.5 mm

Nozzle diameter, combustion chamber pressure psc: 0.5 mm
