VCS 1E20R/20R05NNWR/PPPP/PPPP-88100556

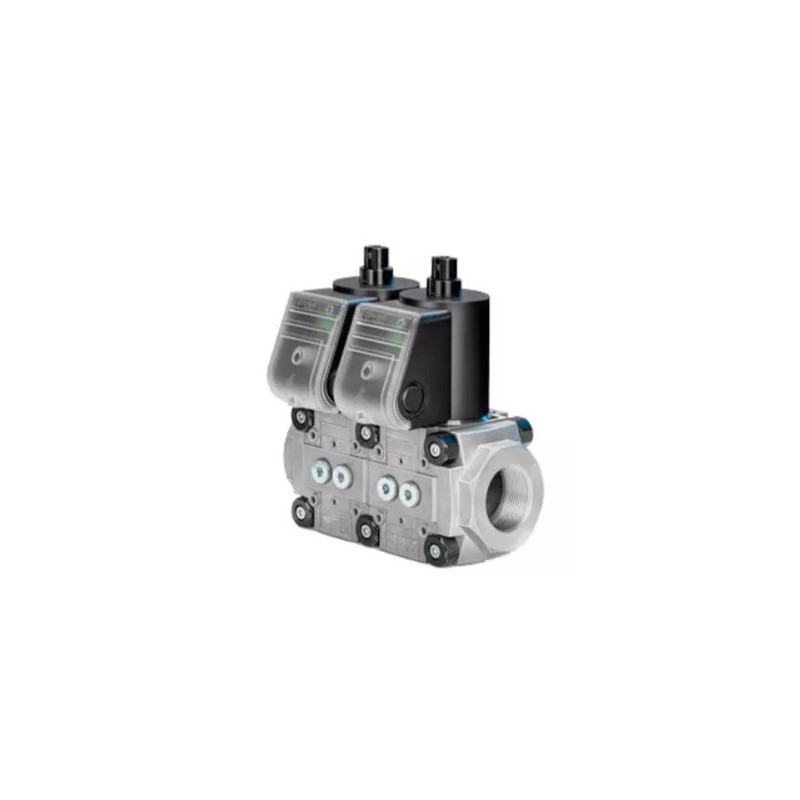

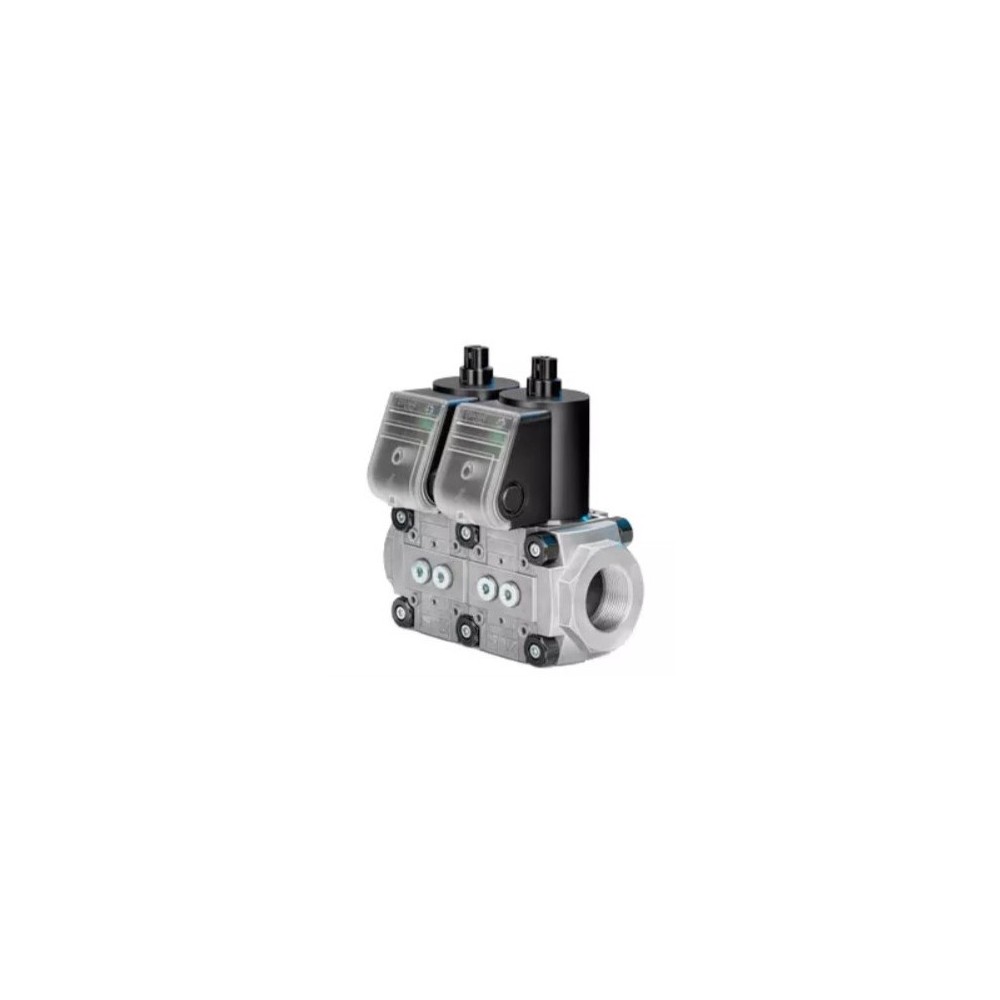

Kromschröder VCS 1E20R/20R05NNWR/PPPP/PPPP-88100556 / Double Solenoid Valve

Type: Double solenoid valve

For gas, air and biologically produced methane, with pilot lamp, IP 65, completely assembled and checked for tightness

Size: 1

Certification: EU certified

Inlet: DN 20 (3/4'')

Inlet pipe connection: Rp internal thread

Outlet: DN 20 (3/4'')

Outlet pipe connection: Rp internal thread

Inlet pressure: pu max. 500 mbar (7 psig)

Mains voltage: 230 V~, 50/60 Hz

Flow: From left to right

Connection boxes: Electrically connected

Electrical connection of 1nd valve: M20 cable gland

Connection material: Enclosed

1st valve accessories on viewing side: 2 screw plugs

2nd valve accessories on viewing side: 2 screw plugs

1st valve accessories on rear side: 2 screw plugs

2nd valve accessories on rear side: 2 screw plugs
