VCS 8100F05NLWSL3E/PPEP/PPPP-88208896

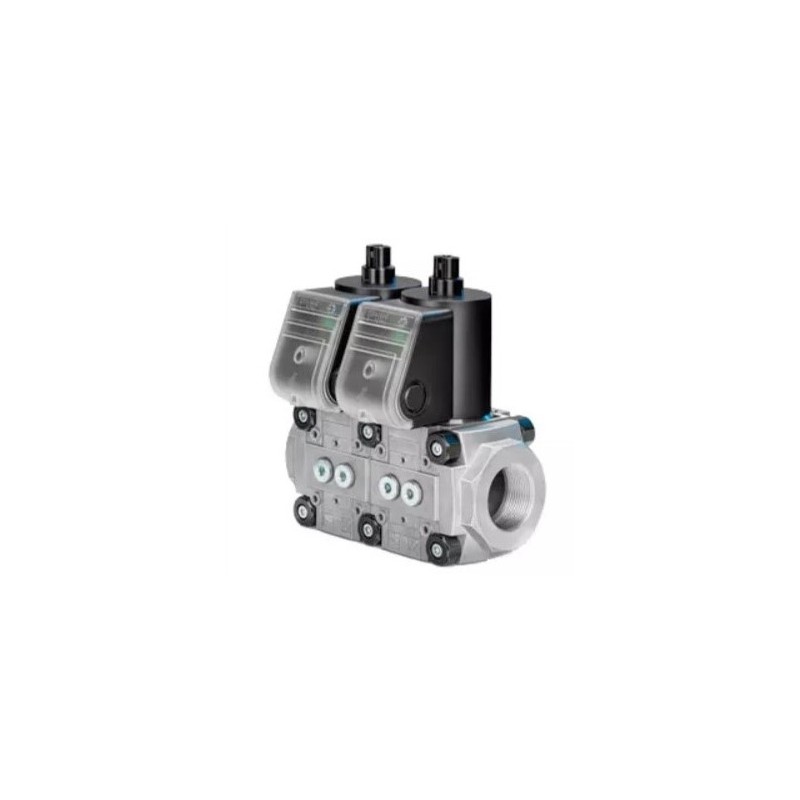

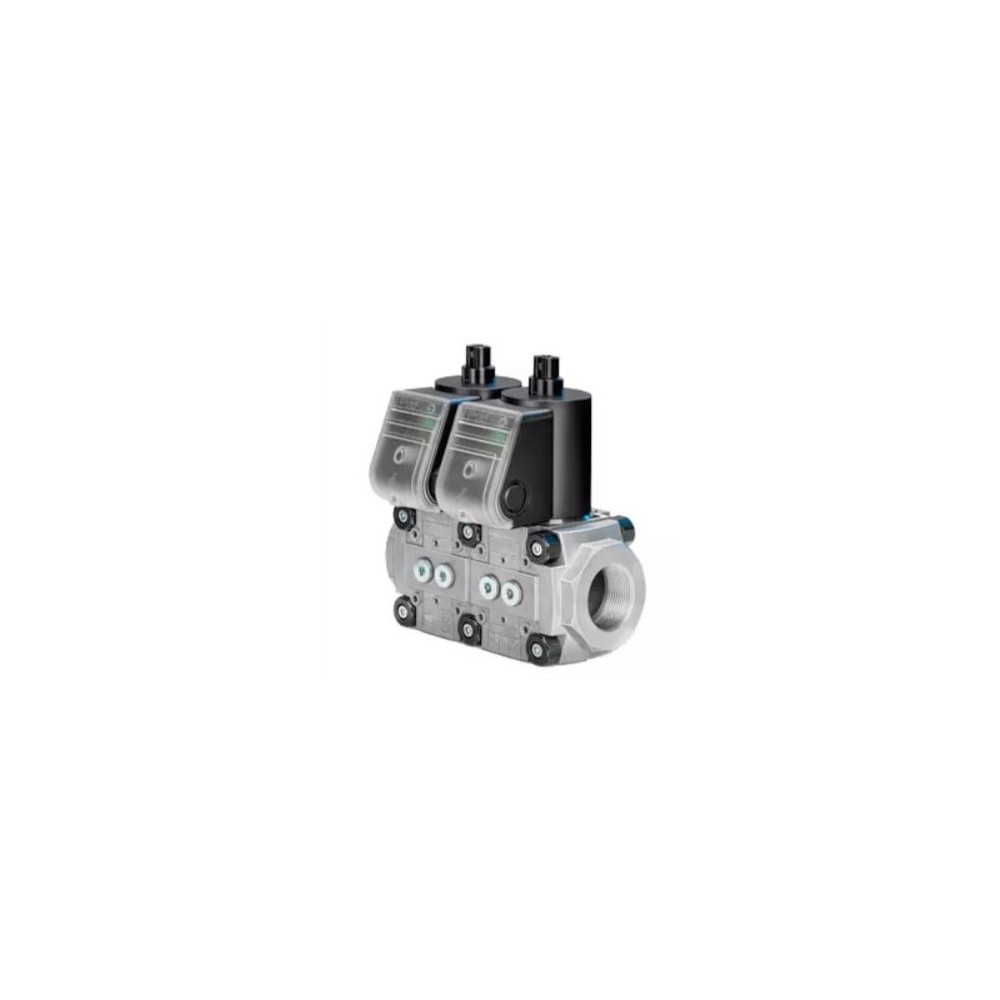

Kromschröder VCS 8100F05NLWSL3E/PPEP/PPPP-88208896 / Double Solenoid Valve

Type: Double solenoid valve

For automatic shut-off, closed when de-energized, for natural gas, LPG and air, Class A to EN 161, with blue pilot lamp, IP 65, FM approved, EU certified

Size: 8

Nominal diameter: DN 100

Pipe connection: Flange to ISO 7005

Inlet pressure: pu max. 500 mbar

Opening properties, 1st valve: Quick opening, quick closing

Opening properties, 2nd valve: Slow opening, quick closing

Mains voltage: 230 V~, 50/60 Hz

Feedback: Proof of closure switch and visual position indicator

Viewing side: Left

Connection of proof of closure switch: No proof of closure switch wired

Electrical connection: M20 cable gland

Lateral machining: Prepared for adapter plates

Accessories, right, inlet: Screw plug

Accessories, right, interspace 1: Screw plug

Accessories, right, interspace 2: Prepared for Rp 1 breather line

Accessories, right, outle: Screw plug

Accessories, left, inlet: Screw plug

Accessories, left, interspace 1: Screw plug

Accessories, left, interspace 2: Screw plug

Accessories, left, outlet: Screw plug
