VCS 9125F05NNARE/P4Z-/PPPP-88208863

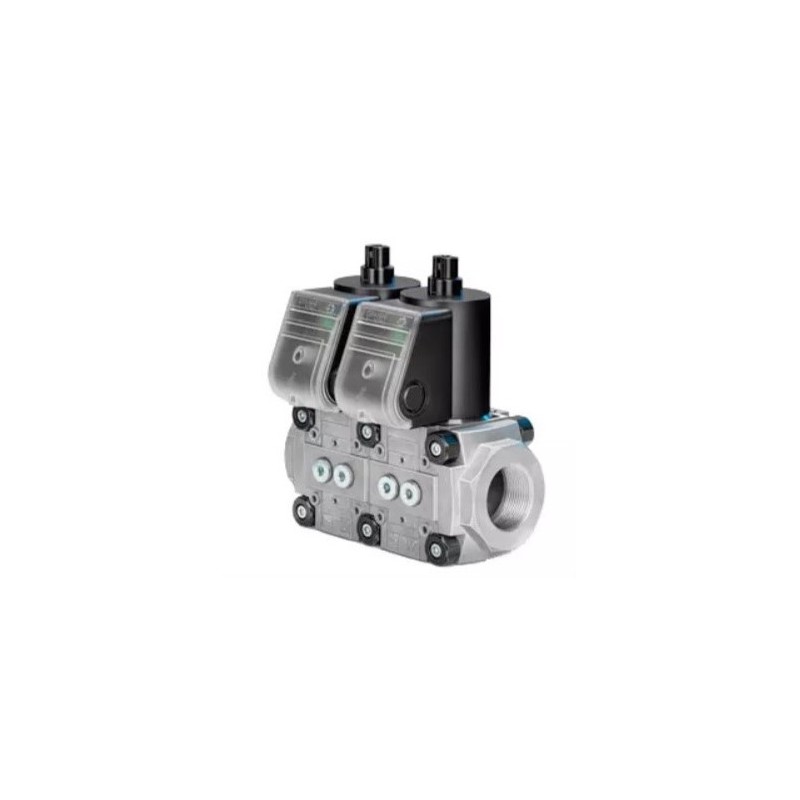

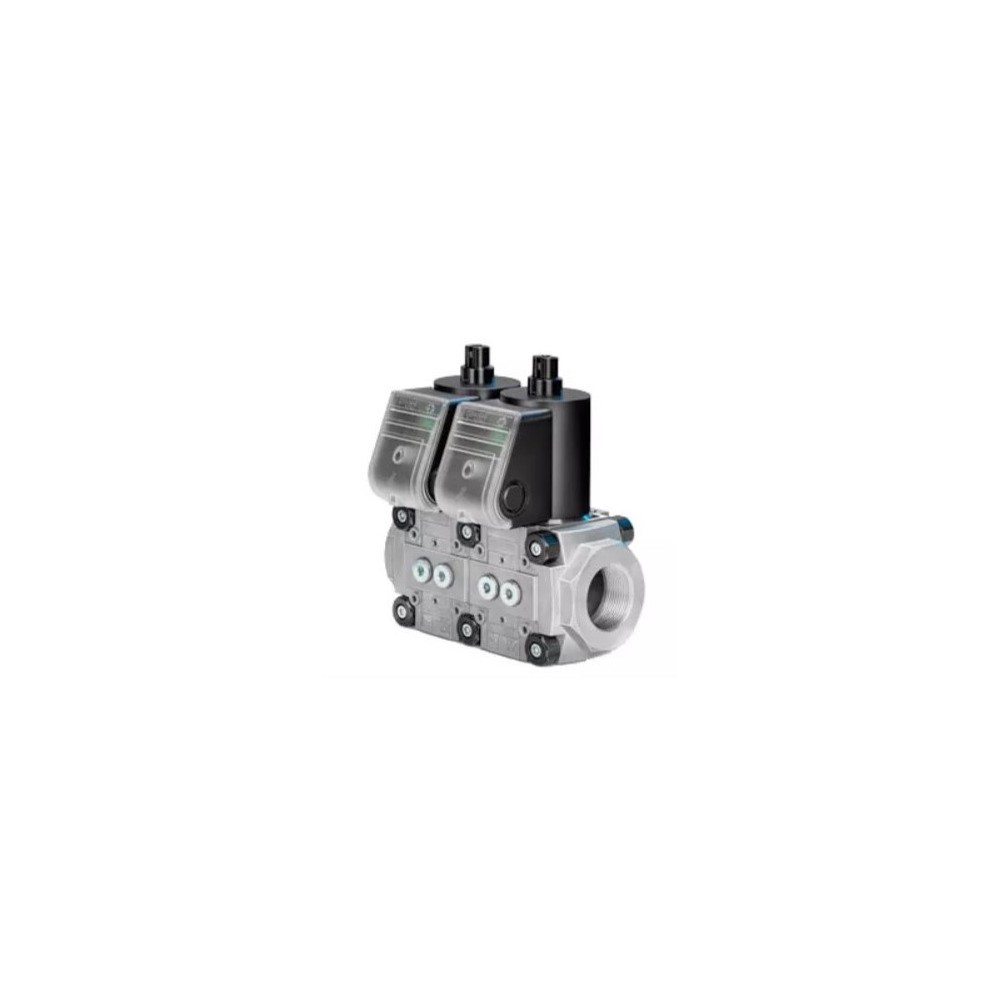

Kromschröder VCS 9125F05NNARE/P4Z-/PPPP-88208863 / Double Solenoid Valve

Type: Double solenoid valve

For automatic shut-off, closed when de-energized, for natural gas, LPG and air, Class A to EN 161, with blue pilot lamp, IP 65, FM approved, EU certified

Size: 9

Nominal diameter: DN 125

Pipe connection: Flange to ISO 7005

Inlet pressure: pu max. 500 mbar

Opening properties, 1st valve: Quick opening, quick closing

Opening properties, 2nd valve: Quick opening, quick closing

Mains voltage: 120-230 V~, 50/60 Hz

Viewing side: Right

Electrical connection: Plug for 2 valves with socket

Lateral machining: Prepared for adapter plates

Accessories, right, inlet: Screw plug

Accessories, right, interspace 1: Pressure switch DG 300VC

Accessories, right, interspace 2: Pilot gas valve VAS 1

Accessories, right, outle: None

Accessories, left, inlet: Screw plug

Accessories, left, interspace 1: Screw plug

Accessories, left, interspace 2: Screw plug

Accessories, left, outlet: Screw plug
