VCS 665F05NNKL3E/P2PP/P2P3-88208846

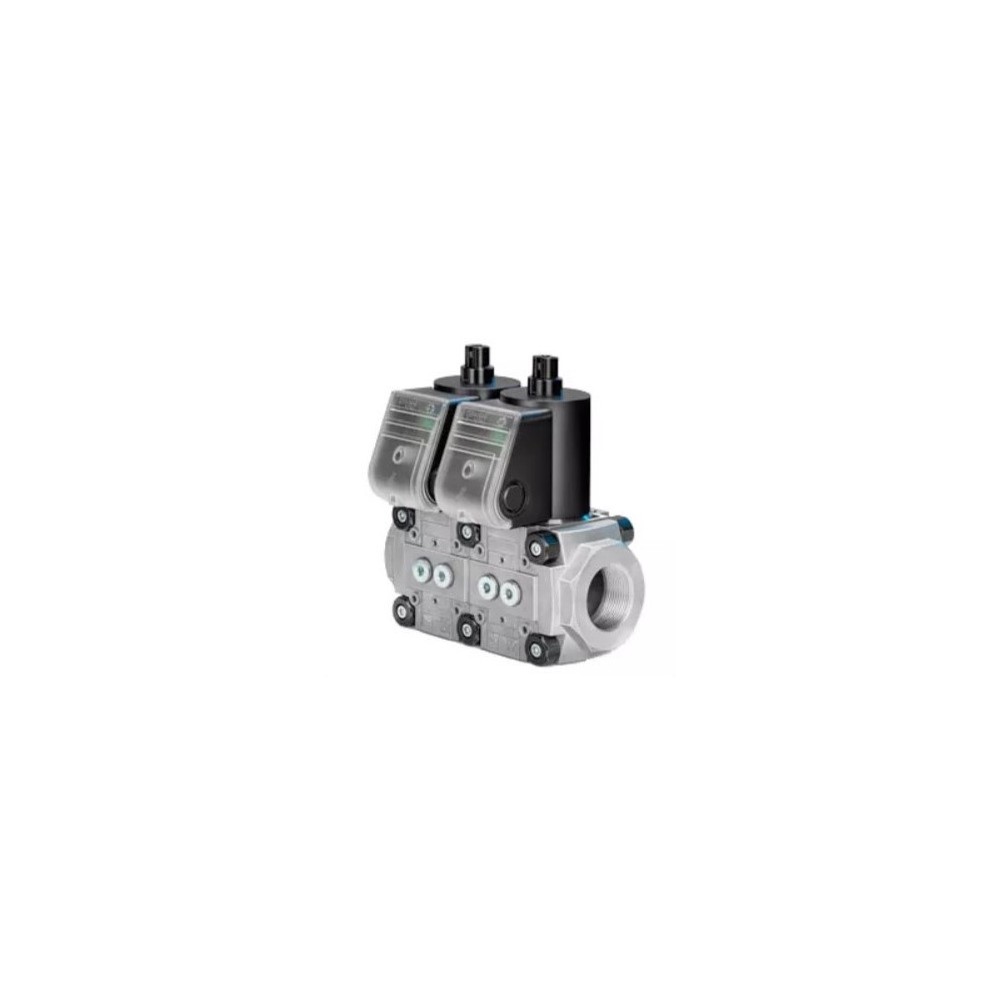

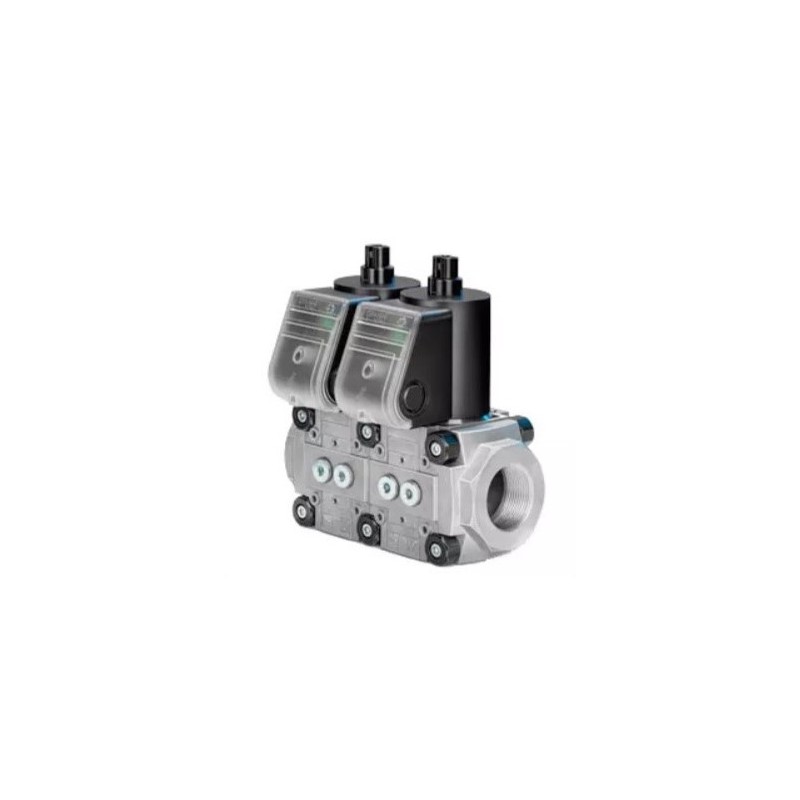

Kromschröder VCS 665F05NNKL3E/P2PP/P2P3-88208846 / Double Solenoid Valve

Type: Double solenoid valve

For automatic shut-off, closed when de-energized, for natural gas, LPG and air, Class A to EN 161, with blue pilot lamp, IP 65, FM approved, EU certified

Size: 6

Nominal diameter: DN 65

Pipe connection: Flange to ISO 7005

Inlet pressure: pu max. 500 mbar

Opening properties, 1st valve: Quick opening, quick closing

Opening properties, 2nd valve: Quick opening, quick closing

Mains voltage: 24 V=

Viewing side: Left

Electrical connection: M20 cable gland

Lateral machining: Prepared for adapter plates

Accessories, right, inlet: Screw plug

Accessories, right, interspace 1: Pressure switch DG 40VC..G

Accessories, right, interspace 2: Screw plug

Accessories, right, outle: Screw plug

Accessories, left, inlet: Screw plug

Accessories, left, interspace 1: Pressure switch DG 40VC..G

Accessories, left, interspace 2: Screw plug

Accessories, left, outlet: Pressure switch DG 110VC..G
